Quick Details
-
Ice storage capacity:
-
Other, depend on the ice bin size
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Koller
-
Dimension(L*W*H):
-
1600mm*1640mm*1630mm
-
Weight:
-
1600 KG
-
Warranty:
-
12 months after delivery
-
Tube ice diameter:
-
26mm,28mm,30mm and 34mm in diameter
-
Freezing time:
-
every 20 minutes
-
Control system:
-
Simens PLC program control
-
Refrigeration components:
-
Danfoss/Castal
-
Electrical components:
-
LG(LS)
-
Ice falling way:
-
Hot gas defrost
-
Framework struture:
-
food-grade SUS304 stainless steel
-
Cooling system:
-
Water cooled way or air cooled way
-
After Warranty Service 1:
-
Online support and Video technical support
-
After Warranty Service 2:
-
Field maintenance and repair service
Quick Details
-
Ice Shape:
-
Tube ice
-
Voltage:
-
380V,50HZ,3P/220V-240V,60HZ,3P
-
Power:
-
14W
-
Ice storage capacity:
-
Other, depend on the ice bin size
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Koller
-
Dimension(L*W*H):
-
1600mm*1640mm*1630mm
-
Weight:
-
1600 KG
-
Warranty:
-
12 months after delivery
-
Tube ice diameter:
-
26mm,28mm,30mm and 34mm in diameter
-
Freezing time:
-
every 20 minutes
-
Control system:
-
Simens PLC program control
-
Refrigeration components:
-
Danfoss/Castal
-
Electrical components:
-
LG(LS)
-
Ice falling way:
-
Hot gas defrost
-
Framework struture:
-
food-grade SUS304 stainless steel
-
Cooling system:
-
Water cooled way or air cooled way
-
After Warranty Service 1:
-
Online support and Video technical support
-
After Warranty Service 2:
-
Field maintenance and repair service
Product Information

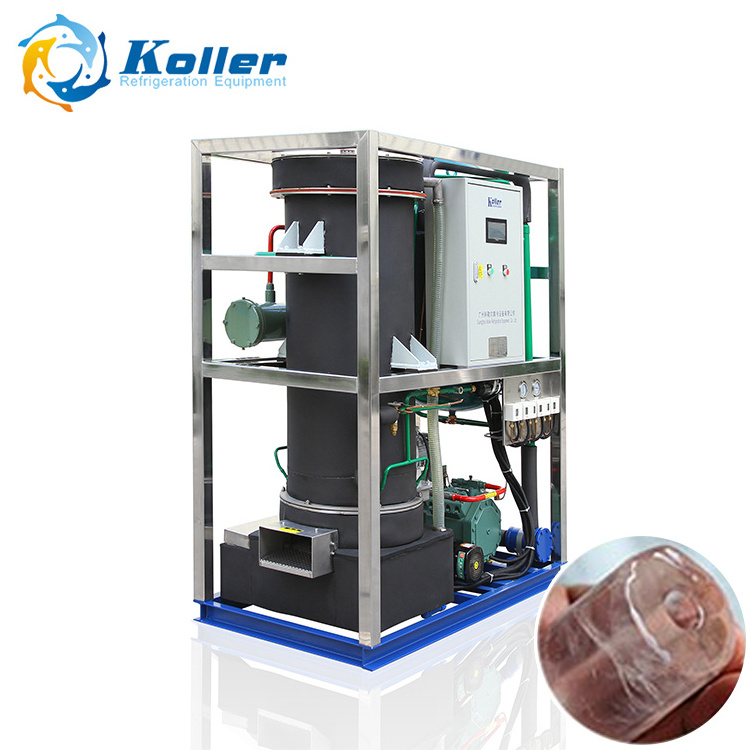

Model: TV30
Capacity: 3000kg/day
Ice shape: tube ice, looks like hollow cylinder
Ice outer diameter: 20mm, 28mm, 34mm, 40mm.
Ice length: 30mm, 35mm, 40mm, 45mm, 50mm.
Ice inner diameter: adjustable, Usually between 5mm-10mm.
Tube Ice
1). Tube ice is a hollow cylinder shape with external diameter of 20mm, 28mm, 34mm, 40mm and other specifications.
2). The length of tube ice is 30mm, 35mm, 40mm, 45mm, 50mm.
3). The diameter of the inner hole can be adjusted according to the ice making time, generally between 5 and 10mm,or the solid ice can be customized according to customer requirements.
4). Tube ice is thick and transparent. It has the following characteristics: long storage time, not easy to melt, good air permeability, and meets the edible standard.
5). Tube ice main application: daily consumption, frozen beverage, beverage making, frozen food, vegetable preservation, chemical process, civil engineering and other places that need ice.
|
Model
|
|
TV10
|
TV20
|
TV30
|
TV50
|
TV80
|
TV100
|
TV200
|
|||||||
|
Capacity (Tons/24hours)
|
|
1
|
2
|
3
|
5
|
8
|
10
|
20
|
|||||||
|
Refrigerant
|
|
R22/R404a/R507
|
|
|
|
|
|
|
|||||||
|
Compressor Brand
|
|
Bitzer/ Refcomp
|
|
|
|
|
Bitzer/ Refcomp/ Hanbell
|
|
|||||||
|
Cooling Way
|
|
Air/Water Cooling
|
|
|
|
|
Water Cooling
|
|
|||||||
|
Compressor Power (HP)
|
|
4
|
9
|
14 (12)
|
28
|
44 (34)
|
46 (44)
|
102 (88)
|
|||||||
|
Ice Cutter Motor (KW)
|
|
0.37
|
0.37
|
0.55
|
0.75
|
1.1
|
1.1
|
2.2
|
|||||||
|
Circulating Water Pump (KW)
|
|
0.37
|
0.37
|
0.55
|
0.75
|
1.1
|
1.5
|
2.2
|
|||||||
|
Machinery Unit Dimension
|
L (mm)
|
1500/1500
|
1500/1500
|
1660/1660
|
1660
|
2200
|
2320/1450
|
2800/1600
|
|||||||
|
|
W (mm)
|
1000/1100
|
860/1140
|
1000/1216
|
930
|
1900
|
1200/1200
|
2300/1354
|
|||||||
|
|
H (mm)
|
1750/1750
|
2095/2120
|
2015/2320
|
2175
|
2550
|
2260/2645
|
2100/4537
|
|||||||
Evaporator
It is a vertical shell tube type device. The stainless steel heat exchange tube carries the upper and lower tube sheets, and each has a water tank at the top and bottom.
For the 15tons or 20tons capacity tube ice machine, the evaporator is a little bit high so that the evaporator can be laid down
during transportation and installed after being erected on site, which meets the requirements of container transportation.
For the 15tons or 20tons capacity tube ice machine, the evaporator is a little bit high so that the evaporator can be laid down
during transportation and installed after being erected on site, which meets the requirements of container transportation.
including compressor, condenser, receiver, oil separator, accummulator, receiver, electrical control box and other refrigeration components. It has low power consumption and high frozen efficiency, so it is very energy-saving.
which allows multiple functions such as automatic machine start and shut down; ice falling automatically when the freezing time is ensured, Automatic water making up.
Rotating Driver Ice Cutter
stainless steel 304 Ice Cutter Blade run by medium speed gear motor.
Special ice outlet
Ice discharging automatically, No need taking ice by hand which can guarantee the ice clean and sanitary, meanwhile, it is matched with ice packing system to package the ice by plastic bags.
