Quick Details
-
Brand Name:
-
STARWELL
-
Model Number:
-
EC1005MR
-
Place of Origin:
-
Guangdong, China
-
Product Name:
-
5-port 10/100Mbps Ethernet switch
-
Manufacturer:
-
Shenzhen Starwell Technology
-
Port:
-
5x 10/100/1000M RJ45 port
-
Uplink Ports:
-
Uplink port
-
Power supply:
-
DC 12V/0.6A
-
Power supply line:
-
Data line to 1 2 3 6 Free line to 4 5 7 8 (alternative)
-
Warranty:
-
1 year
-
Certification:
-
CE/ROHS
Quick Details
-
Transmission Rate:
-
10/100Mbps
-
Communication Mode:
-
Full-Duplex & Half-Duplex
-
Switch Capacity:
-
10G
-
Brand Name:
-
STARWELL
-
Model Number:
-
EC1005MR
-
Place of Origin:
-
Guangdong, China
-
Product Name:
-
5-port 10/100Mbps Ethernet switch
-
Manufacturer:
-
Shenzhen Starwell Technology
-
Port:
-
5x 10/100/1000M RJ45 port
-
Uplink Ports:
-
Uplink port
-
Power supply:
-
DC 12V/0.6A
-
Power supply line:
-
Data line to 1 2 3 6 Free line to 4 5 7 8 (alternative)
-
Warranty:
-
1 year
-
Certification:
-
CE/ROHS

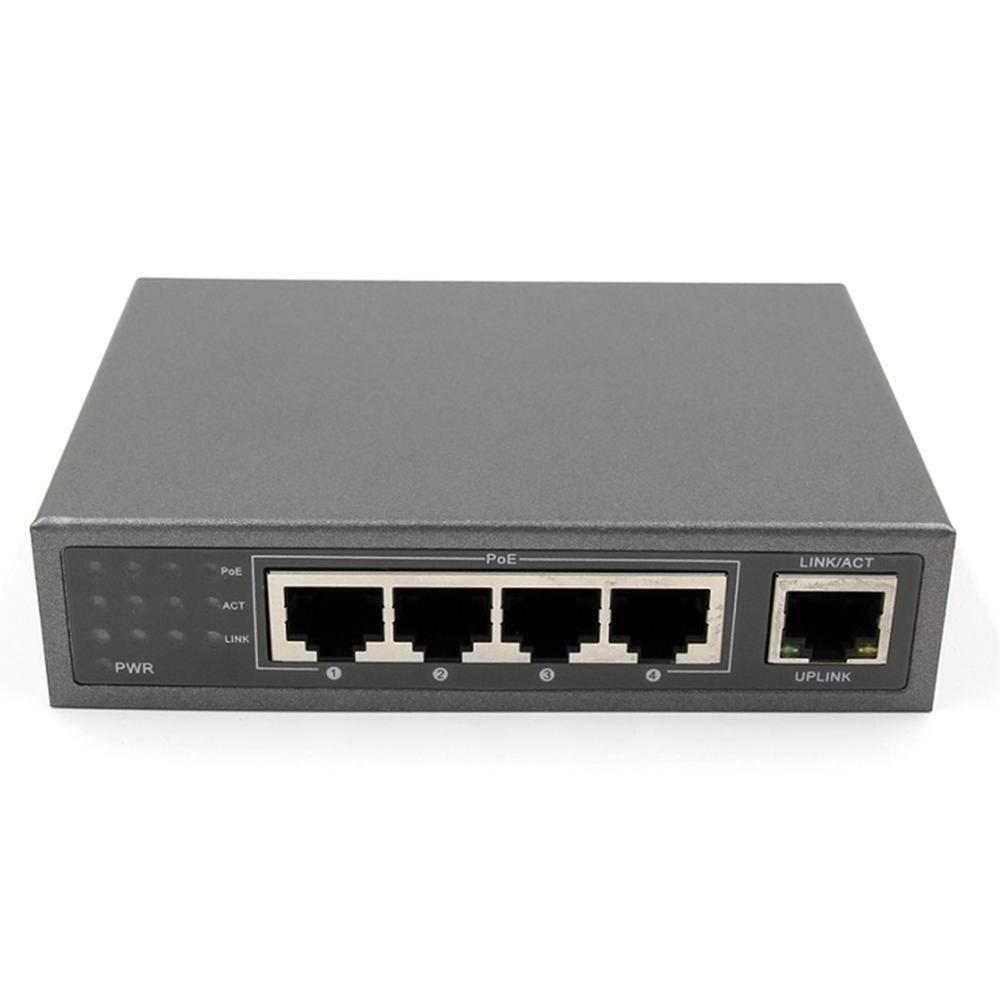

1 year warranty 5 RJ45 Ports with 4 POE Ports 100Mbps Mini industrial POE Switch
It is a high performance 5-port 10/100Mbps Ethernet switch, it provides one full wire-speed 10/100Mbps networking connection to your working group or server, play and plug, this flexible non-blocking frame make user not subject to the limit of bandwidth and media network. EC1005MR supports half-duplex flow control and full-duplex back pressure ,each port support auto-adaptive function, provide an economical, practical, high cost-effective sharing device for broadband LAN .adopting store-and-forward mode ,can effectively isolate broadcast storm ,reduction error /wrong package, avoiding network congestion and network conflict .LED panel can detect the condition of each port and whole system.
Product Features
1. Comply with IEEE802.3 and IEEE802.3u standard
2. 5 10/100Mbps auto-adaptive RJ45 ports, support Auto-MDI/MDIX
3. Support IEEE 802.3x half-duplex and full-duplex back pressure mode
4. Non-blocking exchange frame, full wire-speed transmission and max. throughput filter the data packet.
5. Support MAC address, auto-adjust transmission mode and transmission rate
6. LED indicators, link and activity, provide the simple indication of operation status and troubleshooting
7. Desktop steel case design
8. DC12V 0.6A power supply adapter
| Specification | ||
| Standard |
IEEE 802.3 10Base-T Ethernet
IEEE 802.3u 100Base-TX fast Ethernet IEEE 802.3ab 1000Base-T gigabit Ethernet ANSI/IEEE standard 802.3 auto-adjust IEEE 802.3x flow control |
|
| Protocol | CSMA/CD | |
| filter and transmission rate |
Ethernet 10Mbps (half -duplex)20Mbps (full
-duplex),10Mbps:14,880pps Fast Ethernet 100Mbps(half-duplex ),200Mbps (full-duplex), 100Mbps : 148800pps Gigabit Ethernet 2000Mbps (full-duplex),1000Mbps :1488000pps |
|
| topology | Star | |
| Network Media |
10Base-T: 3UTP or higher ((≤100m)
100Base-TX: 5 UTP(≤100m) |
|
| Port No., | 5*10/100M RJ45 port | |
| Uplink | all ports can act as Uplink port | |
| transmission mode | store-and -forward | |
| Temperature |
Operation temperature : 0 C~40 C (32 F~104 F)
Storage temperature : -40 C~70 C (-40 F~158 F) |
|
| humidity |
Operation humidity :10%~90% ,non-condensing
Storage humidity :5%~95%,non-condensing |
|
| bandwidth | 1.0G | |
| LED indicators |
one power source indicator ( red LED )
5 data LED indicators (Link/Act: green LED) |
|
| Power supply | External power adapter DC 12V/0.6A | |
| Material (case) | Steel | |
| Certification | CE ROHS | |
| operation system | Windows /MAC OS/Netware/Linux | |
| Customized service | OEM/ODM | |
1. Are you a manufacturer or trading company?
We are a manufacturer which has 8 years expearance in power supply/power adapter/ charger field.
2. Is your product in full current and full power ?
Yes, we will not do non-full current and non-full power product to customers.
3. Is your products safety ?
Yes. first our matterials are new and fireproof . besides, our products are approved by international certificates CE ROHS UL FCC TUV GS PSE KC CB BSMI...
4. What is your MOQ?
500pcs
5. What is your product warranty policy?
One year
6. What is the delivery time ?
For sample order , 2-3 workingdays after confirm
For bulk order , generally speaking is 7-15 workingdays after confirm , detailed delivery time bases on your order quantity
7. What service could you offer ?
OEM ODM are welcome
8. What is your payment method and trade term ?
By TT , Paypal , Western Union
For bulk order, 30% as deposit, 70% pay off before shipment
