Quick Details
-
Size:
-
11000*2500*600
-
Place of Origin:
-
Shandong, China
-
Tare Weight:
-
8000kg
-
Pay Load:
-
60 Ton
-
Rims & Tires:
-
Rim 8.0-20
-
King Pin:
-
Welded king pin, size 50# (2'') or 90#(3.5'')
-
Landing Gear:
-
28T Manual operating
-
Wiring:
-
24V, 6 lines
-
Overall Dimension:
-
11000*2500*600 (L*W*H)
-
Steel sheet:
-
Floor thickness 6mm, side wall thickness 4mm
-
Hydraulic Jack:
-
Full set of HYVA hydraulic system, front setting telescopic jack
-
Tailgate:
-
One-piece tailgate with upper articulation, safety lock system
Quick Details
-
Type:
-
Semi-Trailer
-
Max Payload:
-
45T
-
Brand Name:
-
ZW-Trailer
-
Size:
-
11000*2500*600
-
Place of Origin:
-
Shandong, China
-
Tare Weight:
-
8000kg
-
Pay Load:
-
60 Ton
-
Rims & Tires:
-
Rim 8.0-20
-
King Pin:
-
Welded king pin, size 50# (2'') or 90#(3.5'')
-
Landing Gear:
-
28T Manual operating
-
Wiring:
-
24V, 6 lines
-
Overall Dimension:
-
11000*2500*600 (L*W*H)
-
Steel sheet:
-
Floor thickness 6mm, side wall thickness 4mm
-
Hydraulic Jack:
-
Full set of HYVA hydraulic system, front setting telescopic jack
-
Tailgate:
-
One-piece tailgate with upper articulation, safety lock system
Product Description

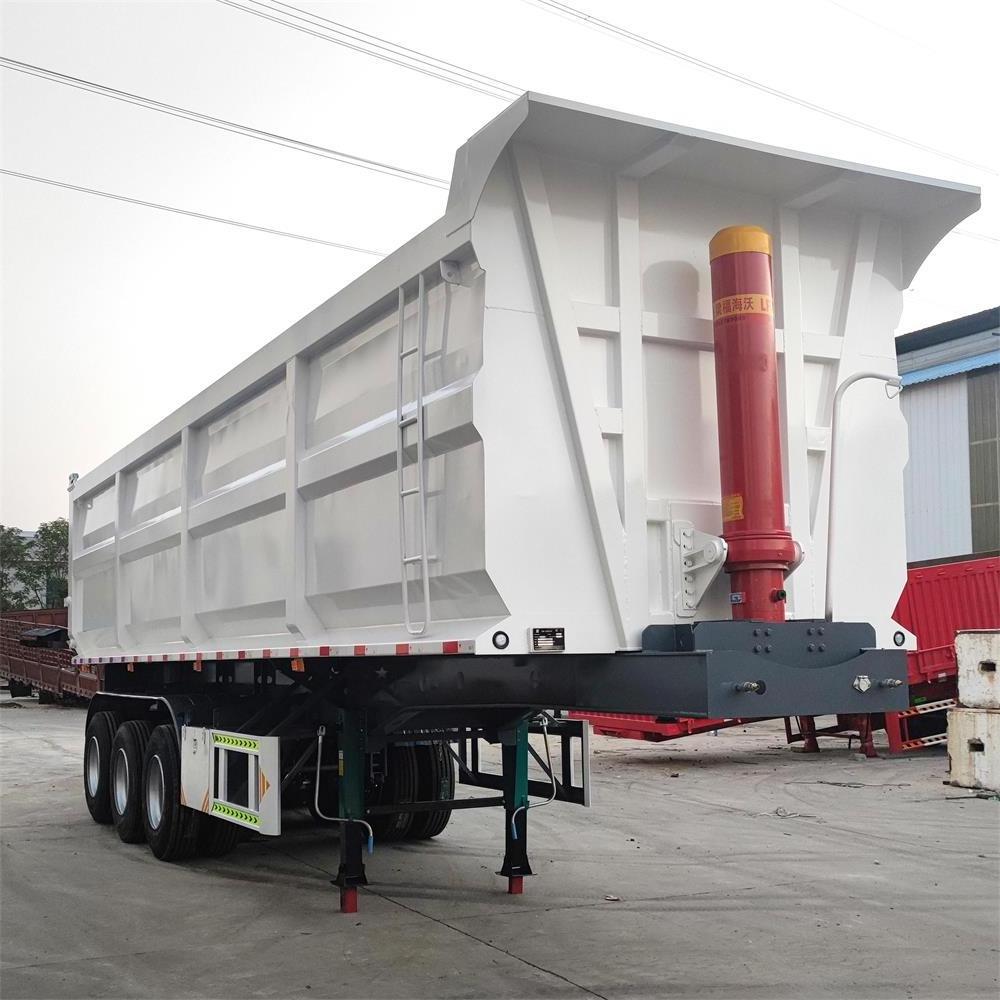

Dumping truck trailer is one of our main products.The frame design is reasonable,the process is advanced, and the box body adopts.high-strength cold-rolled corrugated steel plate,no skeleton structure,various heights and selections of the box body,and large loading space.Multi-cylinder lift,with self-rescue tank,with multi-pulse,heavy load and so on.You can choose left and right single unloading, unloading different unloading methods on the left and right,easy to operate,and effectively meet the diversified and personalized needs of users.
We can design and make common and U type triple axle dump trailer according to clients’ needs.We sold many dump truck trailers to many African countries,triple axle self dumping truck trailer is very popular in African countries.We can produce more than 300 sets self dumping trailers every month.
We can design and make common and U type triple axle dump trailer according to clients’ needs.We sold many dump truck trailers to many African countries,triple axle self dumping truck trailer is very popular in African countries.We can produce more than 300 sets self dumping trailers every month.
Details Images
Product Paramenters
|
Trailer Model
|
Dump Trailer
|
|
|
Specifications
|
|
|
|
Overall dimension
|
10000 *2500 * 3850mm
|
|
|
cargo box
|
9000x2300X1500mm
|
|
|
Loading capacity
|
60T
|
|
|
Wheel Base(mm)
|
6880mm+1310mm+1310mm
|
|
|
Semi Trailer Chassis
|
|
|
|
Platform plate
|
3mm Checkered steel plate
|
|
|
The material of Main beam
|
The height of the beam is 500 mm, upper plate is16mm,down plate is 18mm,middle plate is 10mm.Q345B
|
|
|
Thickness
|
bottom 10 side 8 mm
|
|
|
Axle brand
|
13TON Fuwa axles brand
|
|
|
Axle Number
|
3
|
|
|
Suspension system
|
Common Mechanical suspension
|
|
|
Leaf Spring
|
10/10/10 leaf spring suspension
|
|
|
Landing gear
|
28T, double speed operation
|
|
|
Tire Type and quantity
|
11R20.00 12pieces
|
|
|
Traction Pin
|
50MM or 90MM
|
|
|
Lifting system
|
Hydraulic lifting suspension
|
|
|
Tool box
|
1 set
|
|
|
Spare tire carrier
|
2 sets
|
|
|
Electrical & Paint
|
|
|
|
Brake system
|
Dual Line braking system ,none ABS.
|
|
|
Brake air chamber
|
Four double and two single chamber
|
|
|
Electrical system
|
24V,7 pin socket,One set 6-core standard Cable
|
|
|
Light
|
Tail lamp with turn signal, brake light & reflector, side lamp etc
|
|
|
Painting
|
Sand blasting before painting, 2 coat of anticorrosive primer, 2 coats of finish urethane paint, Color upon request
|
|
|
Packing&Shipping
|
|
|
|
Packing
|
Polish with wax before shipping
|
|
|
Pattern and Logo
|
According to customer’s request
|
|
|
Shipping Terms
|
Shipped by bulk cargo ship, Roll-roll ship or in container
|
|
