Quick Details
-
Dimension(L*W*H):
-
all size of
-
Year:
-
2022
-
Power (kW):
-
200 kW
-
Weight (KG):
-
22000 KG
-
rubber machine:
-
waste tyre recycling line
-
application:
-
making rubber powder
-
specification:
-
XKP-400/XKP-450/XKP-560
-
colour:
-
according to customers request
-
After Warranty Service:
-
Spare parts
-
Marketing Type:
-
New Product 2023
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
EENOR
-
Voltage:
-
220V380V440V
-
Dimension(L*W*H):
-
all size of
-
Year:
-
2022
-
Power (kW):
-
200 kW
-
Weight (KG):
-
22000 KG
-
rubber machine:
-
waste tyre recycling line
-
application:
-
making rubber powder
-
specification:
-
XKP-400/XKP-450/XKP-560
-
colour:
-
according to customers request
-
After Warranty Service:
-
Spare parts
-
Marketing Type:
-
New Product 2023
used truck tire sidewalls cutter recycling line machine/used tire sidewalls and tread cutter
tire scrap recycling line is mainly consists of:
1.Ring cutter
|
Item |
Specification |
|
motor power |
5.5 |
|
Speed of main screw |
46.8 r/min |
|
MAX Diameter of tyre |
1200mm |
|
Dimension |
1100*900*1700mm |
|
Purpose :To cut the steel ring from the tyre
|
|

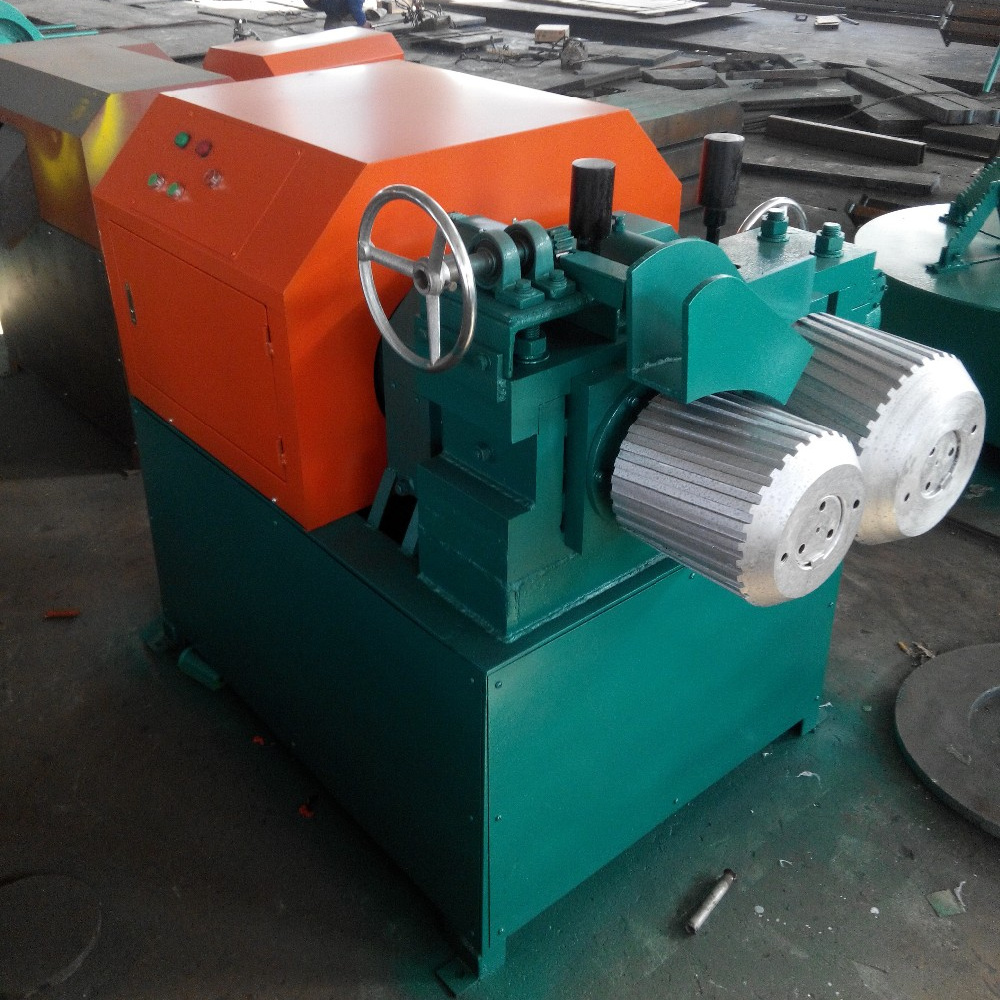

1-2.Loop machine
|
Item |
Specification |
|
Motor power |
15 KW |
|
Linear speed of front roller |
15.5 m/min |
|
Ratio of speed |
1.1 |
|
Dimension |
1520*1150*12101mm |
|
Purpose:To Separate the steel ring from the rubber after 1 step. |
|
1-3.strip cutter
|
Item |
Parameter |
|
Motor Power |
5.5kw |
|
Disc Diameter |
380mm |
|
Rotate Speed |
18.4r/min |
|
Dimension |
1290*870*1550 |
|
Purpose: To cut the old tyre intostrip
|
|
1-4.block cutter
|
Item |
Specification |
|
motor power |
11kw |
|
Speed of main screw |
420 r/min |
|
Out diameter of cutter |
200mm |
|
Dimension |
1130*830*1100 |
|
Purpose: To Cut the strip into block |
|
1-5.tyre crusher
|
Item |
XKP-560 |
|
Diameter of front roll(mm) |
560 (smooth) |
|
Diameter of back roll(mm) |
510 (groove) |
|
Working length(mm) |
800 |
|
Linear speed of front roll(m/min) |
25.56 |
|
Ratio |
1:1.30 |
|
MAX gap(mm) |
15 |
|
capacity(kg/h) |
600-800 |
|
Motor power(kw) |
75 |
|
Dimension (l*w*h)(mm) |
5064*2284*1978 |
|
Weight(kg) |
18000 |
Purpose:
Crush the rubber block into rubber powder and granule.
1-6.Big conveyor equipment
motor power: 2.2kw
The length of conveyor: 8000mm
The width of belt: 550mm
Speed: 40m/min
To conveyor the rubber block into crusher.
1-7 . Small conveyor equipment
Motor power:1.1kw
The length of conveyor: 3m
The width of belt: 400mm
Speed: 30m/min
1-8.Big Magnet separator
motor power: 1.1kw
The width of belt: 400mm
Speed: 30m/min
Purpose: separate the steel small block from the rubber powder.
1-9.Small magnetic separator
motor power: 1.1kw
The width of belt: 400mm
Speed: 30m/min
1-10.big Shaking screen
working length: 6000mm
working width: 1000mm
motor power: 7.5kw
size: 7800*1250*600mm
Purpose:
(1) separate the rubber granule and powder, Resend the granule to crusher, and send powder to Magnet separator through small conveyor belt.
(2) separate the textile cord from rubber powder
1-11.small Shaking screen
working length: 3000mm
working width: 1500mm
motor power: 3kw
1-12.fiber separator
The machine adopts airflow separation principal, is able to efficiently separate minor fiber from the rubber granules.
|
Model |
XFJ-110 |
|
capacity |
200-500kg/h |
|
Diameter of impeller |
1100mm |
|
Number of lamina |
8 pcs |
|
Rotate speed of main axis |
400r/min |
|
Motor power |
5.5 kw |
|
Dimension |
1.5x1.5x6.5m (L*W*H) |
1-13 rubber grinder
|
type |
XMF420 |
||
|
Energy consumption |
32.6 KW |
||
|
Output (mesh) |
30-40 |
40-60 |
60-80 |
|
Capacity(Kg/h) |
150-200 |
120-150 |
90-110 |
FAQ:
1.Q:Are you a factory or trading company?
A:We are factory.
2.Q:Where is your factory?How can i visit ?
A:Our factory located in qingdao city.You can fly to qingdao liuting airport,then we can pick you up to our facotry to visit.Warm welcome visit us.
3.Q:How does your factory control the quality of machines and after sales service?
A:Our machines passed CE,BV,ISO,SGS certification,pls confirm the quality.All our machines have 1 year guarantee, will provide lifetime maintenance.
