Quick Details
-
Table Travel (Y) (mm):
-
650mm
-
Spindle Taper:
-
HSK-A63 (1:10 )
-
Dimension(L*W*H):
-
5300*2600*3235mm
-
Weight (T):
-
1.5 T
-
Table Travel (Z) (mm):
-
500mm
-
Positioning Accuracy (mm):
-
0.008
-
Repeatability (X/Y/Z) (mm):
-
0.005
-
Range of Spindle Speed(r.p.m):
-
1 - 12000 r.p.m
-
Spindle Motor Power(kW):
-
8KW
-
Max. Table Load(kg):
-
600 kg
-
Feed Speed(mm/min):
-
0 - 10000 mm/min
-
Rapid Feed Speed(m/min):
-
10000
-
Place of Origin:
-
Liaoning, China
-
Brand Name:
-
DMTG
-
Voltage:
-
380V 50HZ
-
Marketing Type:
-
Hot Product 2023
-
Machinery Test Report:
-
Available
-
Precision::
-
High Precision Machine
-
Name:
-

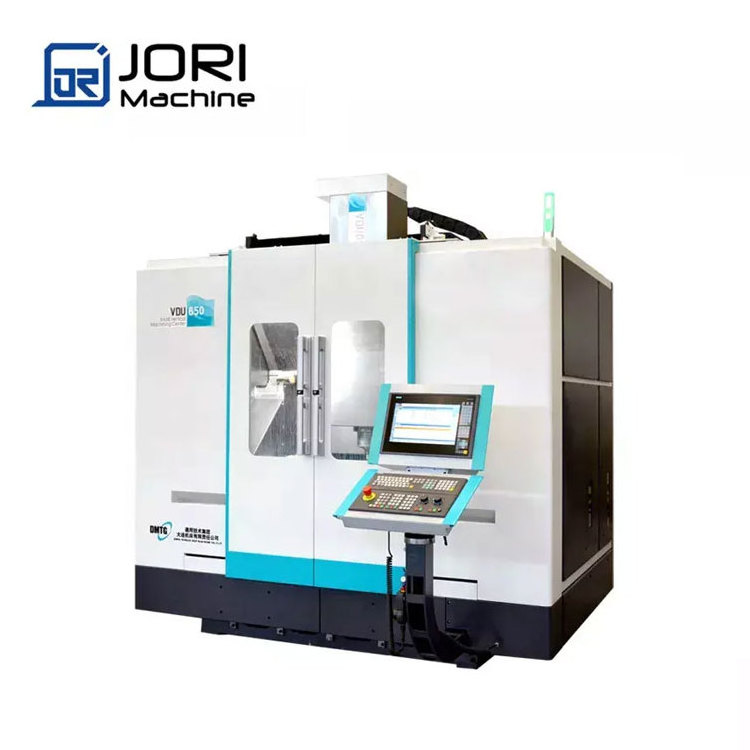

5 axis vertical machining center
-
CNC or Not:
-
CNC Systemn
-
Keywords:
-
5 axis VMC
-
Control system:
-
SIEMENS
-
Color:
-
Custom-made
-
Trade Terms:
-
650/650/500
-
Worktable Size:
-
650mm dia.
-
Spindle speed:
-
12000 Rpm
-
Application:
-
Metal Machining
Quick Details
-
Table Size (mm):
-
650*650
-
Number of Axes:
-
2, 5
-
Table Travel (X) (mm):
-
650mm
-
Table Travel (Y) (mm):
-
650mm
-
Spindle Taper:
-
HSK-A63 (1:10 )
-
Dimension(L*W*H):
-
5300*2600*3235mm
-
Weight (T):
-
1.5 T
-
Table Travel (Z) (mm):
-
500mm
-
Positioning Accuracy (mm):
-
0.008
-
Repeatability (X/Y/Z) (mm):
-
0.005
-
Range of Spindle Speed(r.p.m):
-
1 - 12000 r.p.m
-
Spindle Motor Power(kW):
-
8KW
-
Max. Table Load(kg):
-
600 kg
-
Feed Speed(mm/min):
-
0 - 10000 mm/min
-
Rapid Feed Speed(m/min):
-
10000
-
Place of Origin:
-
Liaoning, China
-
Brand Name:
-
DMTG
-
Voltage:
-
380V 50HZ
-
Marketing Type:
-
Hot Product 2023
-
Machinery Test Report:
-
Available
-
Precision::
-
High Precision Machine
-
Name:
-
5 axis vertical machining center
-
CNC or Not:
-
CNC Systemn
-
Keywords:
-
5 axis VMC
-
Control system:
-
SIEMENS
-
Color:
-
Custom-made
-
Trade Terms:
-
650/650/500
-
Worktable Size:
-
650mm dia.
-
Spindle speed:
-
12000 Rpm
-
Application:
-
Metal Machining
Cnc Lathe Turning Machine Cnc Vertical Lathe in China Cnc Lathe Machine for Metal Vertical Machining Center Price
|
TABLE
|
Worktable size
|
mm
|
φ650
|
|
|
T-Slot (Quantity*Width*Distance)
|
mm
|
8*18*45°
|
|
|
Max load of worktable
|
kg
|
600
|
|
TRAVEL
|
X/Y/Z axis travel
|
mm
|
650/650/500
|
|
|
X/Y/Z axis guideway type
|
mm
|
Roller guideway
|
|
|
Distance from spindle center to column
|
mm
|
φ800*500
|
|
|
Distance from spindle nose to table
|
mm
|
150~650
|
|
FEED RATE
|
Rapid traverse of X/Y/Z axis
|
m/min
|
45/45/45
|
|
|
Cutting feed rate
|
mm/min
|
30
|
|
SPINDLE
|
Max spindle speed
|
r/min
|
12000
|
|
|
Spindle taper
|
|
No.40 (7:24)
|
|
ATC system
|
Tool magazine capacity
|
|
24T/Arm
|
|
|
Tool shank type
|
|
HSK-A63 (1:10 )
|
|
|
Max tool weight
|
kg
|
8
|
|
|
Max tool diameter (w/o adjacent tools)
|
mm
|
24T: φ76/125
|
|
|
Max tool length
|
mm
|
300
|
|
|
Time of tool change (T-T)
|
s
|
24T: 2.5
|
|
ACCURACY
|
X/Y/Z axis positioning accuracy
|
mm
|
0.008/0.008/0.008
|
|
|
X/Y/Z axis repeatability accuracy
|
mm
|
0.005/0.005/0.005
|
|
CONTROL SYSTEM
|
Controller
|
|
SIEMENS 840DSL
|
FAQ
1. Is your company a factory or trading company ?
We are factory .
2. What is your payment terms ?
If with stock ,100% payment in advance first,because the machine can ready to ship.
if without stock ,normal 30% down-payment after contract ,and 70% payment before shipment, Meanwhite it can be discussed according to your situation.
3. What is your delivery time ?
The delivery depends on different machines with different configurations. Please contact us to confirm it is in stock or not.
4. What is the warranty period ?
The machine is warranted for a period of 13 months after B/L date or 12 months from the date of ship arrival, whichever is earlier, against faulty workmanship and defective material. In this situation, parts will be supplied for free in replacement of defective parts against detailed inspection report after checkup and ratification.
5. Can you send the service engineer to our company ?
When the machine arrive the destination, we timely send service engineers to install machine according to buyer's schedule, the buyer shall bear all expenses.
