Quick Details
-
Brand Name:
-
GORDON
-
Model Number:
-
GD-PAH-10B
-
Product name:
-

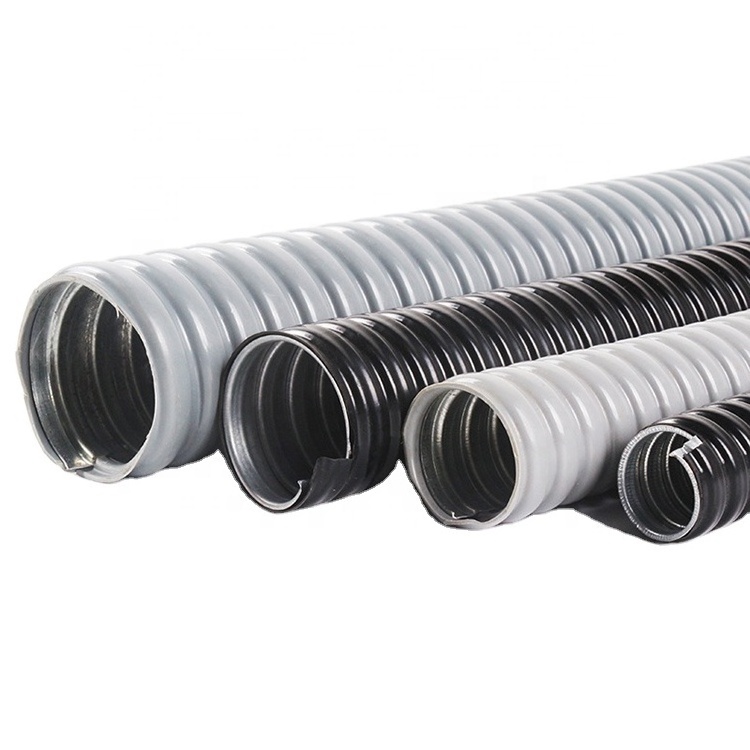

tube flexible metal conduit
-
Color:
-
Grey or Black
-
Size:
-
See table below
Quick Details
-
Type:
-
Straight Conduit Fittings
-
Material:
-
Steel
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
GORDON
-
Model Number:
-
GD-PAH-10B
-
Product name:
-
tube flexible metal conduit
-
Color:
-
Grey or Black
-
Size:
-
See table below
Material: Inside with Galvanize Stell Belt;
Outerside with Anti-burns PVC.
Temperature Range: -30 degree--80 degree.
Application: Used for wire protection at railways, engines, traffic system engineering, air-conditioners, various machineries, automatic controlling equipment, power plants, chemical industries, power distribution system, communication system, vessels, mansions, factory buildings as well as the outdoors' exposed locations.
| ITEM | METRIC | INCH | OUTER DIAMETER | NATURAL CUVE | PACKING |
| GD-JSH-6 | φ6 | 3/16'' | 8.8+-0.25 | 40 | 200 |
| GD-JSH-8 | φ8 | 1/4'' | 11.4+-0.30 | 45 | 100 |
| GD-JSH-10 | φ10 | 5/16'' | 13.5+-0.30 | 55 | 100 |
| GD-JSH-13 | φ13 | 3/8'' | 16.1+-0.35 | 65 | 100 |
| GD-JSH-16 | φ16 | 1/2'' | 19.1+-0.35 | 85 | 100 |
| GD-JSH-20 | φ20 | 3/4'' | 23.5+-0.40 | 100 | 50 |
| GD-JSH-25 | φ25 | 1'' | 29.8+-0.45 | 115 | 50 |
| GD-JSH-32 | φ32 | 1 1/4'' | 37.2+-0.50 | 140 | 50 |
| GD-JSH-38 | φ38 | 1 1/2'' | 43.5+-0.60 | 160 | 50 |
| GD-JSH-51 | φ51 | 2'' | 57+-1.00 | 190 | 25 |
| GD-JSH-64 | φ64 | 2 1/2'' | 72+-1.50 | 280 | 20/10 |
| GD-JSH-75 | φ75 | 3'' | 83+-2.00 | 320 | 20/10 |
| GD-JSH-100 | φ100 | 4'' | 107+-3.00 | 380 | 20/10 |
| GD-JSH-125 | φ125 | 5'' | 135+-5.00 | 600 | 5 |
| GD-JSH-150 | φ150 | 6'' | 165+-5.00 | 700 | 5 |
Q1:Is it all right to make customer's own brand name?
A:Yes
Q2:Are you a manufactuer or trading company?
A: Manufactuer.
Q3:Can you do the design for us?
A: Yes,we can.
Q4:How can I get a sample to check your quality?
A:Contact us.Free samples can sent to you for test.
Q5:How long can I expect to get the sample?
A: About 4-6 days.Shipment according to courier company.
Q6:Packaging & Shipping?
A: By sea, by air, by railway or by courier. Packaging contact us for details.
Q7:Production time?
A: About 20-25 days. Small order about 7days. Details are based on the order quantity.
Q8:What are your main products?
A: We mainly produce Cable Tie and Cable Gland, also provide other Wiring Accessories Proucts.
Q9:What is your terms of delivery?
A: FOB,CIF,CFR,DDP,EXW etc...
Q10:What's the MOQ for your production?
A: We accept both large and small orders. Contact us for details.
Q11:What's your payment term?
A: 30% T/T Deposit + Balance Before Shipment.
Q12:When can I get the price?
A: Fast Response Within 8 Hours
Q13:Where is your company? Where is your loading port?
A: Our company is in Hangzhou,China. Our loading port is in Shanghai or Ningbo, China.
Q14:How soon we can get email response from your team?
A: Fast Response Within 8 Hours.
Q15:If we have some other product requirements that your page don't include, can you help to supply?
A: Yes,of course.
Q16:What's the list of certificates you holds?
A: Rohs,Reach,CE,IP68,UV Resistant Test.
Q17:Are you in stock?
A: Small orders are in stock.Contact us for details.
