Quick Details
-
Weight:
-
7600 KG
-
Drilling Diameter:
-
305mm
-
Drilling Depth:
-
Max.280m
-
Product name:
-

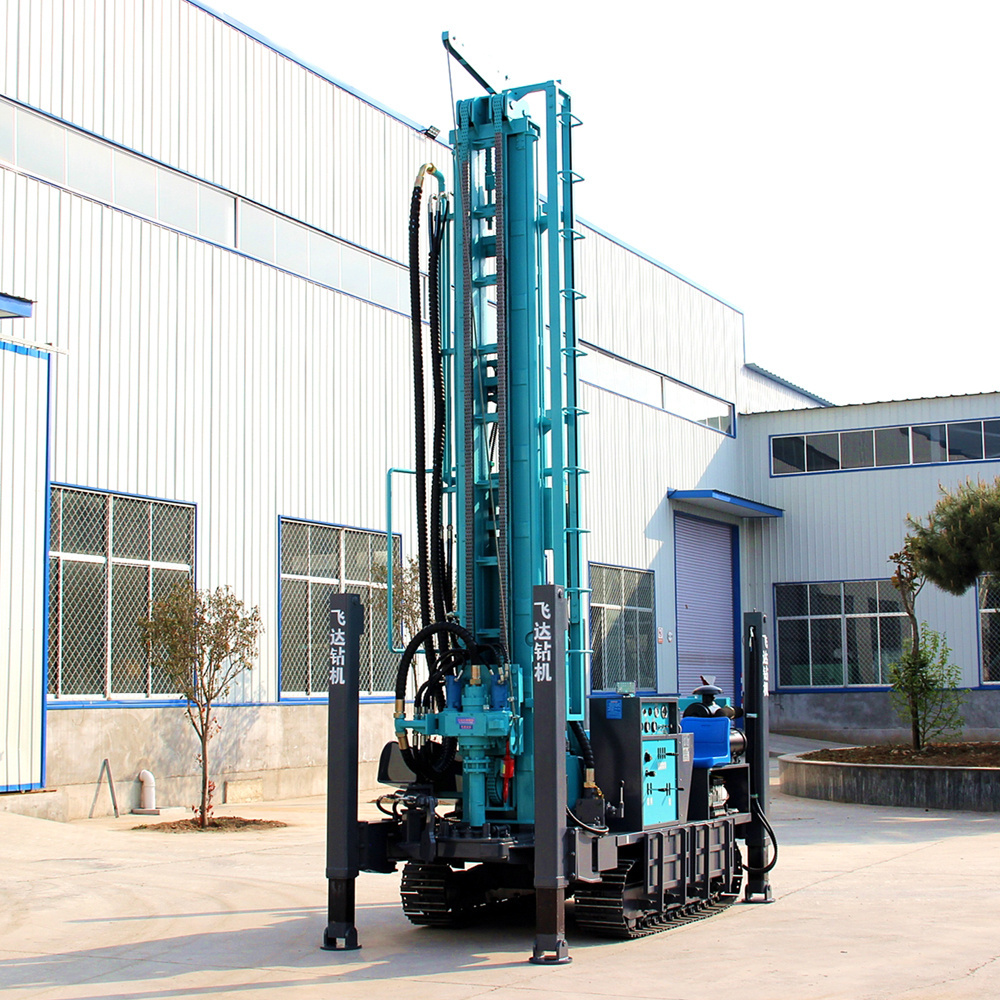

FY280 Water well drilling rig
-
Certification:
-
CE
-
Character:
-
steeltrack drillling tower:6.6m
-
Color:
-
Blue
-
Drill pipe diameter:
-
76/89mm
-
Drill pipe length:
-
1.5m 2m 3m
-
After-sales Service Provided:
-
Online Support
-
Application:
-
Water Wells Rock Drill Rig
-
Air consumption:
-
17-31m3/min
-
Swing torque:
-
4500-6000N.m
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
FeiDa Machinery
-
Dimension(L*W*H):
-
5900*1800*2450mm
-
Weight:
-
7600 KG
-
Drilling Diameter:
-
305mm
-
Drilling Depth:
-
Max.280m
-
Product name:
-
FY280 Water well drilling rig
-
Certification:
-
CE
-
Character:
-
steeltrack drillling tower:6.6m
-
Color:
-
Blue
-
Drill pipe diameter:
-
76/89mm
-
Drill pipe length:
-
1.5m 2m 3m
-
After-sales Service Provided:
-
Online Support
-
Application:
-
Water Wells Rock Drill Rig
-
Air consumption:
-
17-31m3/min
-
Swing torque:
-
4500-6000N.m
Product Description
Water well drilling rig specifications
|
Parameter / Model
|
FY280
|
|
The weight (T)
|
7.6
|
|
The hole diameter (mm)
|
140-305
|
|
Drilling depth (m)
|
280
|
|
One-time advance length (m)
|
6.6
|
|
Walking speed (km/h)
|
2.5
|
|
Climbing angles (Max.)
|
30
|
|
Equipped capacitor (KW)
|
75
|
|
Using air pressure (MPA)
|
1.7-3.0
|
|
Air consumption (m3/min)
|
17-31
|
|
Drill pipe diameter (mm)
|
Φ76 Φ89
|
|
Drill pipe length (m)
|
1.5m 2.0m 3.0m 6.0m
|
|
Rig lifting force (T)
|
17
|
|
Swing speed (rpm)
|
40-70
|
|
Swing torque (N.m)
|
4300-5500
|
|
Dimension (mm)
|
5900*1800*2450
|
Application
The following images are from customer feedback，We also have a lot of customer feedback videos, if you are interested, contact us
Work Flow
Step1：
cutting material
Step 2：
machine work
Step 3：
engine assembly
Step 4：
Assembly and welding Step 5：Installation of hydraulic valve
Step 6：
Tubing connection
Step 7：
The machine is finished and tested
