1. All the goods will be delivered in 10-20 days after receving payment.
2. The machine will be packed in export container.
3. Motors and small parts will be packed in new strong wooden cases that suitable for long distance ocean transportation.
4. We promise that your goods will be shipped to destination timely and safely.
- Product Details
- {{item.text}}
Quick Details
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
3*1.2*1.87 m
-
Weight:
-
900 KG
-
Name:
-
portable small gold trommel washer
-
Processing capacity:
-
5-10 TPH
-
Application:
-
GOLD WASH
-
Engine:
-
diesel engine
-
screen mesh:
-
8mm
-
Machine type:
-
screening machine
Quick Details
-
Production Capacity:
-
5-10 tph
-
Place of Origin:
-
Jiangxi, China
-
Brand Name:
-
Hengzhong
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
3*1.2*1.87 m
-
Weight:
-
900 KG
-
Name:
-
portable small gold trommel washer
-
Processing capacity:
-
5-10 TPH
-
Application:
-
GOLD WASH
-
Engine:
-
diesel engine
-
screen mesh:
-
8mm
-
Machine type:
-
screening machine
Product Description

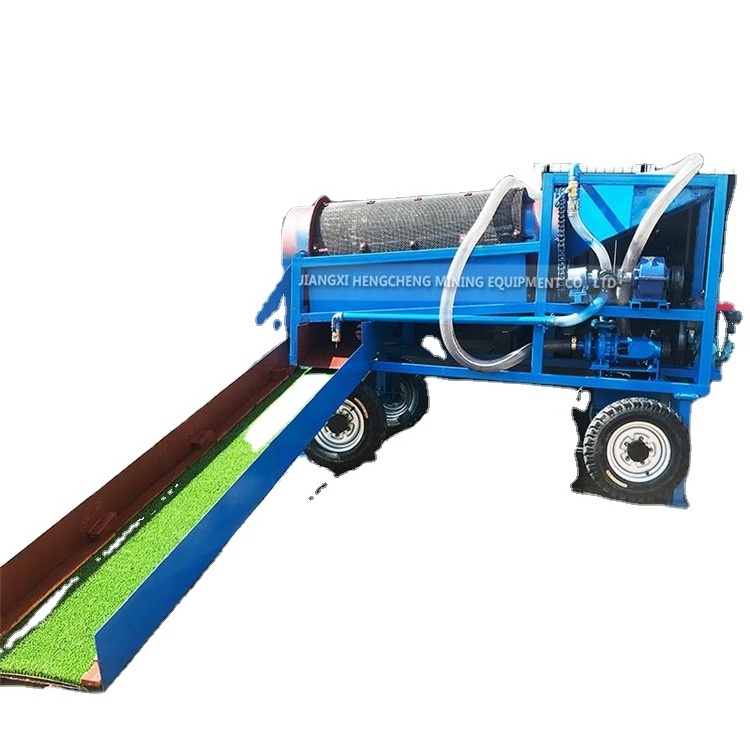

Alluvial gold mining equipment manufacturers gold wash trommel
This small gold trommel wash machine is popular in Africa & Asia markets due to its mobile form and easy operation. Moreover, it is a low cost, and customers just need a little budget to buy one. Many small miners came to our factory to buy it for their alluvial gold or other placer deposit minerals.
Main Features
1) The Hengzhong series gold washing plant are designed according to your specific mining conditions and requirements.
2) Feeding system with grizzly hopper feeder, water spray pipes inside the hopper for spray waters to the soils.
3) Heavy duty clay scrubber with inside high pressure water spray pipes for breaking off hard clay. (if required)
4) Double sieve trommel screen with NSK bearings and high pressure water spray pipes on both sides for washing, screening and separating.
5) Double gold recovery systems to ensure highest recovery rate of gold (up to 98%).
6) Water supplying systems with multiple sets of big power submersible slurry pumps, hoses, valves, etc.
7) Powering system with famous diesel generator with all batteries, cables and wires.
8) Multiple sets of heavy duty mining type tires with towing mechanism for fully mobility and portability.
9) Gold refinery plant to make final product of gold bars.
10) Easy for installation, operation and maintaining.
11) One-Stop gold mining solutions from A to Z.
Detailed Images
Technical Parameters
|
Model
|
Capacity
|
Power
|
Drum Diameter (mm)
|
Drum Length
|
sieve mesh
|
Dimension
|
Weight
|
|
|
(t/h)
|
(kw)
|
|
(mm)
|
Size (mm)
|
(mm)
|
(kg)
|
|
GT0510
|
1-5
|
2
|
500
|
1000
|
<3~10
|
1800*1020*1500
|
1000
|
|
GT1015
|
5-20
|
4
|
1000
|
1500
|
<3~10
|
3000*1400*2145
|
2200
|
|
GT1020
|
10-40
|
5
|
1000
|
2000
|
<3~10
|
3460*1400*2145
|
2800
|
|
GT1225
|
20-60
|
7.5
|
1200
|
2500
|
<3~10
|
4146*1600*2680
|
4200
|
|
GT1530
|
30-90
|
11
|
1200
|
3000
|
<3~10
|
4460*1900*2820
|
5100
|
|
GT1545
|
50-120
|
15
|
1500
|
4500
|
<3~10
|
5960*1900*3080
|
6000
|
|
GT1848
|
80-200
|
22
|
1800
|
4800
|
<3~10
|
6500*2300*4000
|
7500
|
|
GT2055
|
120-250
|
30
|
2000
|
5500
|
<3~10
|
7500*2500*4000
|
8600
|
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Related Products
Packing & Delivery
Gold Washing Plant-- Mobile Gold Trommel Wash Plant
Exhibition
Contact US
We’d like to recommend a suitable model for you and send you a best quotation. So please give us some more
information about your requirement in your enquiry.
