Quick Details
-
BCD Curve:
-
B
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
CSQ
-
Model Number:
-
HYCB1
-
Rated Frequency (Hz):
-
50-60HZ
-
Number of Pole:
-
1
-
CERTIFICATE:
-
CE,CCC,ISO9001,PICC
-
Product name:
-
Miniature Circuit Breaker 1p 2p 3p CE CCC CB Pole Mini MCB Breaker
-
Rated current:
-
63A
-
Rated voltage:
-
690V
-
Pole:
-
1P/2P/3P/4P
-
Name:
-
MCB
-
Frequency:
-
AC 50/60 Hz
-
Warranty:
-
18 Months
-
Keywords:
-
MCB
-
MOQ:
-
10PCS
Quick Details
-
Breaking Capacity:
-
6KA
-
Rated Voltage:
-
480V
-
Rated Current:
-
63A
-
BCD Curve:
-
B
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
CSQ
-
Model Number:
-
HYCB1
-
Rated Frequency (Hz):
-
50-60HZ
-
Number of Pole:
-
1
-
CERTIFICATE:
-
CE,CCC,ISO9001,PICC
-
Product name:
-
Miniature Circuit Breaker 1p 2p 3p CE CCC CB Pole Mini MCB Breaker
-
Rated current:
-
63A
-
Rated voltage:
-
690V
-
Pole:
-
1P/2P/3P/4P
-
Name:
-
MCB
-
Frequency:
-
AC 50/60 Hz
-
Warranty:
-
18 Months
-
Keywords:
-
MCB
-
MOQ:
-
10PCS

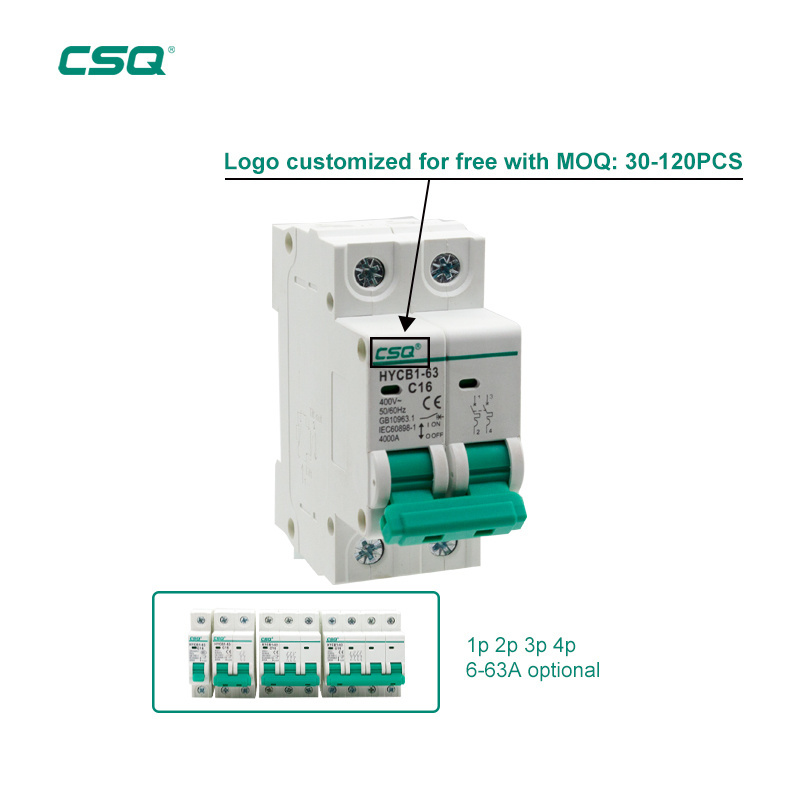

Products Description
HYCB1-63 series circuit breaker is used in lighting distribution system or motor distribution system for protecting overload and short-circuit in the system.The product is novel in structure,light in weightreliable and excellent in performance. lt has high breaking capacity,can trip quickly and it's installation uses with guide,its case and body areadoptedwith high fire-resistant and shockproof plastics.The productwith long life is mainly used in AC 50Hz/60Hz single-pole 240V or two,three,four-pole 415V circuit for overload and short-circuit protection as well as for unfrequent on-and-off switching electric equipment and lighting circuit in normalcase.This productconformto GB10963 IEC60898BS3871.
Product Paramenters
|
Rated temperature (C)
|
|
40
|
|
|
Rated voltage (V) AC
|
|
AC 240/415
|
|
|
Rated current (A)
|
C
|
1,3,5,6,10,15,16,20,25,32,40,50,60,63
|
|
|
|
D
|
1,3,5,6,10,15,16,20,25,32,40
|
|
|
Electric endurance not lower than (times)
|
|
6000
|
|
|
Mechanical endurance lower than (imes)
|
|
2000
|
|
|
Tropical test
|
|
2 kinds
|
|
|
Weight(g)
|
|
1P 2P 3P 4P
|
|
|
|
|
102 208 308 408
|
|
The circuit breaker needs to be matched with the power of the wires and electrical appliances, otherwise it is easy to cause thetripping terminal to burn out.
