Quick Details
-
Marketing Type:
-
Hot Product
-
Weight (KG):
-
1800 KG
-
Power (kW):
-
15KWS
-
Product name:
-
PUR hot melt glue profile wrapping machine
-
Glue:
-
PUR Hot Glue
-
Covering Film:
-
PVC,Roll Veneer, PP, Paper, Aluminum Foil, Leather, etc
-
Base Profiles:
-
MDF,Particle board, plywood, WPC,PVC,Aluminum, Steel
-
Voltage:
-
AS request
-
Advantage:
-
Multifunctional
-
Control System:
-
PCL+Touch screen
-
Insulation Function:
-
Yes
-
Over temperature alarm:
-
Yes
-
Low glue level alarm:
-
Yes
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
TC Machinery Electronic
-
Machine Type:
-
LAMINATING MACHINE
-
Marketing Type:
-
Hot Product
-
Weight (KG):
-
1800 KG
-
Power (kW):
-
15KWS
-
Product name:
-
PUR hot melt glue profile wrapping machine
-
Glue:
-
PUR Hot Glue
-
Covering Film:
-
PVC,Roll Veneer, PP, Paper, Aluminum Foil, Leather, etc
-
Base Profiles:
-
MDF,Particle board, plywood, WPC,PVC,Aluminum, Steel
-
Voltage:
-
AS request
-
Advantage:
-
Multifunctional
-
Control System:
-
PCL+Touch screen
-
Insulation Function:
-
Yes
-
Over temperature alarm:
-
Yes
-
Low glue level alarm:
-
Yes
Product Description
|
Product Name
|

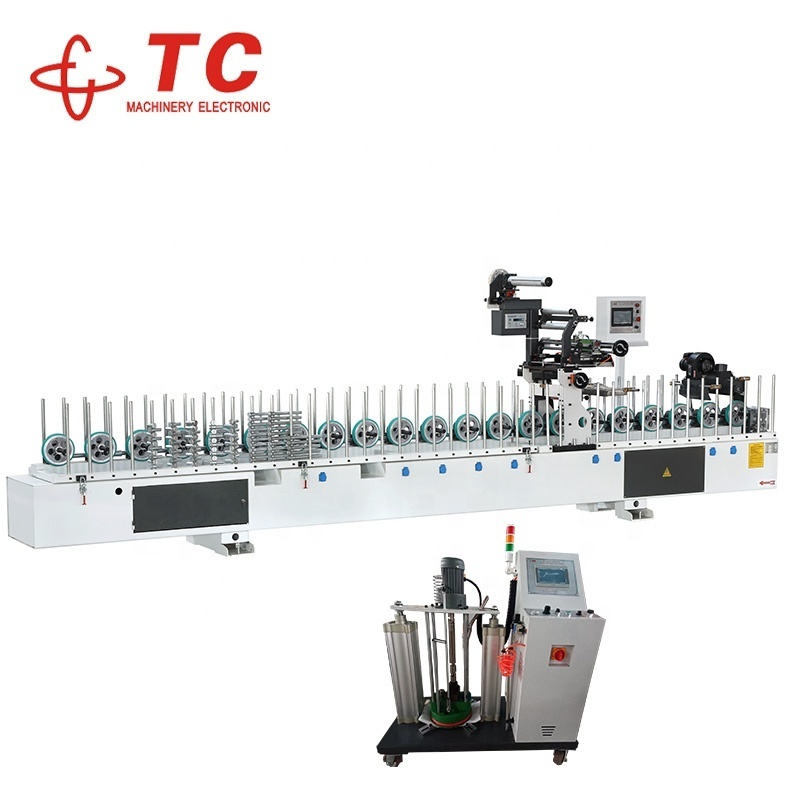

PUR hot melt glue profile wrapping machine
|
|
Suitable Film
|
pvc, paper, veneer, pp, aluminum foil,etc.(all in roll)
|
|
Glue type
|
Pur hot melt adhesive
|
|
Suitable base profiles
|
mdf,plywood, particle, wpc, upvc, aluminum, steel. etc.
|
|
Application of finished products
|
Door frame, window, ceiling, skirting, wall, picture frame,voice speeker, and other decoration uses
|
|
Max.covering film width
|
300mm
|
|
Base profile Length
|
600mm
|
|
Base profile Max. thickness
|
90mm
|
|
Machine speed
|
1-50m/minute
|
|
Total power
|
10kws (exclude heating guns)
|
|
Machine sizes
|
6000x800x2100mm
|
|
Machine weight
|
around 2500mm
|
|
Glue melter capacity
|
20kgs (5 gallon)
|
|
Brand
|
TC Electronic Machinery
|
|
Voltage
|
as request
|
|
Service
|
1,Photos with illustration, videos, manual, on-line support
2,after corona virus, if need service overseas, will need extra cost |
|
Packing
|
by foam and transparent shrink film; plywood case packing will need extra cost
|
Products Words
PUR profile laminating machine is suitable for sticking leather, PVC, veneer .etc on decorativestrip (wpc strips),aluminumprofile, and is mainly for different angles, ARC, roughness and the edges to get excellent performance. What's more, PUR glue has thefeatures of anti-aging, anti-UV which makes it to be the top choice for outdoor.
Automatic Multifunction Wooden Door Profile Wrapping Machine is special for
wrapping decoration moulding line, aluminum workpieces, material surface finishing
with leather, PVC, veneer material etc ,this machine have a strong feature of easy operation,laminating rapidly, strong adhesive, no bubbles according to the pieces
different shapes, such as angle parts, around ARC,roughness, extruding, complicate
shapes, and can get a beautiful surface
GLUE COATING HEAD
●Teflon Coating, high temperature resistant
●Non-stick surface treatment
●Gluing knife processing tolerance less than a piece of a hair
●Non-stick surface treatment
●Gluing knife processing tolerance less than a piece of a hair
LAMINATING EFFECT
● Different designs of pressure wheels to press film on two side edges and bottom edges of the panel
Suitable Materials
PUR universal wrapping machine is suitable for sticking leather,PVC,veneer etc on
decorative strip(wpc strips),aluminum profiles,wood profiles and is mainly for differentangles,ARC,roughness and the edges to get excellent performance.what's
more,PUR glue has the features of anti-aging,anti-UV which makes it to be the top
more,PUR glue has the features of anti-aging,anti-UV which makes it to be the top
choice for outdoor.
Finished product display
Glue：PUR Hot Glue
Covering Film：PVC，Roll Veneer, PP, Paper, Aluminum Foil, Leather, etc.
Base Profiles：MDF、Particle board, plywood, WPC,PVC
Aluminum, Steel
Packing & Delivery
1, Foam & shrink film
2, Wooden case should be added more cost
