Quick Details
-
Warranty(Year):
-
1-Year
-
Lamp Luminous Efficiency(lm/w):
-
5w~30w
-
Working Time (hours):
-
15000
-
Input Voltage(V):
-
AC 220V 50Hz
-
Lamp Luminous Flux(lm):
-
4110
-
Working Temperature(℃):
-
-40 - 50
-
Working Lifetime(Hour):
-
15000
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Ningju
-
Emitting Color:
-
RGB
-
Laser power:
-
5W-30W
-
Power dissipation:
-
≤400W
-
Divergence Angle:
-
<3mrad
-
Laser color:
-
RGB
-
galvanoscope:
-
Angle ±30°50K speed
-
Channel mode:
-
16 channels /39 channels
-
Laser software:
-
Pangolin FB4
-
Shell material:
-
6061 aluminum
-
Shell surface coloring treatment:
-
Grayish brown hard anodized
-
Installation mode:
-
Hoisting or seating
Quick Details
-
Color Temperature(CCT):
-
RGB
-
Type:
-
Projection Lights
-
Application:
-
Theme Park
-
Warranty(Year):
-
1-Year
-
Lamp Luminous Efficiency(lm/w):
-
5w~30w
-
Working Time (hours):
-
15000
-
Input Voltage(V):
-
AC 220V 50Hz
-
Lamp Luminous Flux(lm):
-
4110
-
Working Temperature(℃):
-
-40 - 50
-
Working Lifetime(Hour):
-
15000
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Ningju
-
Emitting Color:
-
RGB
-
Laser power:
-
5W-30W
-
Power dissipation:
-
≤400W
-
Divergence Angle:
-
<3mrad
-
Laser color:
-
RGB
-
galvanoscope:
-
Angle ±30°50K speed
-
Channel mode:
-
16 channels /39 channels
-
Laser software:
-
Pangolin FB4
-
Shell material:
-
6061 aluminum
-
Shell surface coloring treatment:
-
Grayish brown hard anodized
-
Installation mode:
-
Hoisting or seating
Why Choose Us
Products Description
Product Paramenters
|
Luminaire equipment name
|
|
|

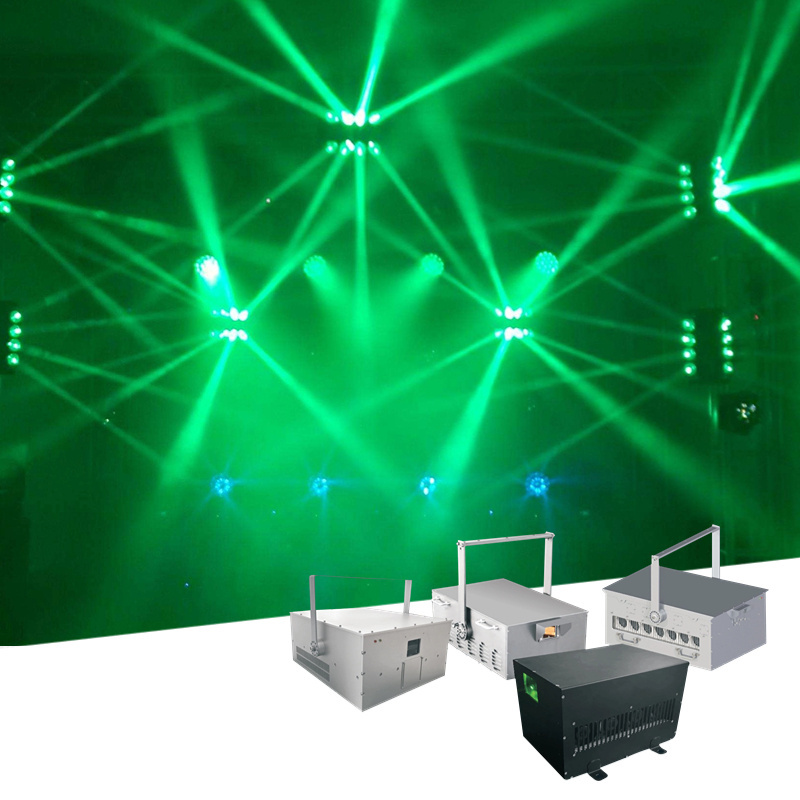

Color laser show system
|
|
|||
|
Parameter specification
|
Laser power
|
5W-30W
|
Laser color
|
RGB
|
|||
|
|
Power dissipation
|
≤400W
|
Divergence Angle
|
<3mrad
|
|||
|
|
Laser wavelength
|
638nm±5(red light)447nm±5(Blue light)520nm±5(green light)
|
|
|
|||
|
|
Control mode
|
DMX512, network, auto play and other control methods
|
|
|
|||
|
|
galvanoscope
|
Angle ±30°50K speed
|
Channel mode
|
16 channels /39 channels
|
|||
|
|
Working mode
|
CW(continuous)
|
Laser software
|
Pangolin FB4
|
|||
|
|
Shell thickness
|
8mm
|
Shell material
|
6061 aluminum
|
|||
|
|
Shell surface coloring treatment
|
Grayish brown hard anodized
|
Protective measure
|
Over temperature and over current protection
|
|||
|
|
Installation mode
|
Hoisting or seating
|
Operating temperature
|
-40 ℃ ~50 ℃
|
|||
|
|
voltage
|
AC 220V 50Hz
|
Cooling mode
|
Air cooling
|
|||
|
|
IP level
|
IP65
|
Working life
|
15000H
|
|||
