It is widly applied to producing the packing bags for foodstuff,clothing ,rubbish bag and vest ones.
- Product Details
- {{item.text}}
Quick Details
-
Weight (KG):
-
10000
-
Brand Name:
-
Debang
-
Place of Origin:
-
Zhejiang, China
-
Die Size(mm):
-
50 - 55 mm
-
Model Number:
-
DB-65*2.75*1/1800
-
Year:
-
2024
-
Voltage:
-
380V 50Hz
-
Dimension(L*W*H):
-
11000*8500*10800mm
-
Product name:
-

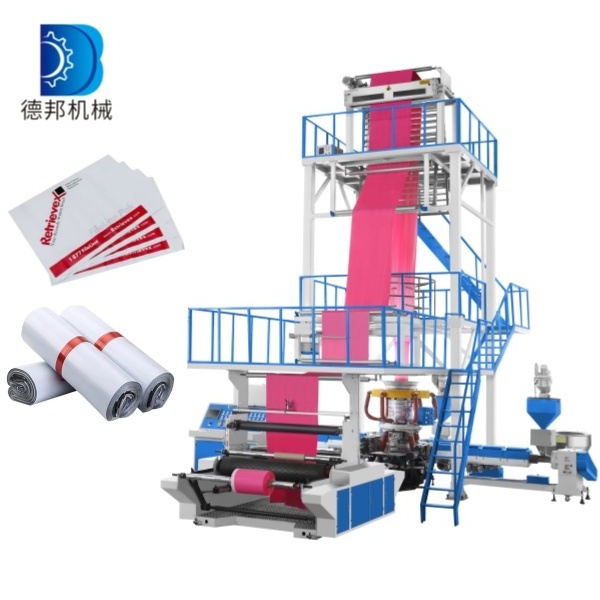

Three Layers Upspin Film Blowing Machine
-
type:
-
three layer
-
Screw L/D Ratio:
-
L/D30:1
-
COLOR:
-
Blue
-
Material:
-
HDPE LDPE LLDPE
-
After-sales Service Provided:
-
One Year
-
Raw material:
-
LDPE LLDPE MLLDPE HDPE
-
Die head:
-
Rotary Die Head
-
Film Thickness:
-
0.01-0.10mm
-
Take-up Speed:
-
10-120m/min
Quick Details
-
Output (kg/h):
-
150 - 200
-
Number of Layers:
-
Three-layer
-
Screw diameter (mm):
-
65
-
Weight (KG):
-
10000
-
Brand Name:
-
Debang
-
Place of Origin:
-
Zhejiang, China
-
Die Size(mm):
-
50 - 55 mm
-
Model Number:
-
DB-65*2.75*1/1800
-
Year:
-
2024
-
Voltage:
-
380V 50Hz
-
Dimension(L*W*H):
-
11000*8500*10800mm
-
Product name:
-
Three Layers Upspin Film Blowing Machine
-
type:
-
three layer
-
Screw L/D Ratio:
-
L/D30:1
-
COLOR:
-
Blue
-
Material:
-
HDPE LDPE LLDPE
-
After-sales Service Provided:
-
One Year
-
Raw material:
-
LDPE LLDPE MLLDPE HDPE
-
Die head:
-
Rotary Die Head
-
Film Thickness:
-
0.01-0.10mm
-
Take-up Speed:
-
10-120m/min
FILM BLOWING MACHINE
Frame
Rewind
Stable foam frame
Die Head
Main motor
Control cabinet
|
product name
|
Three Layer Film Blowing Machine
|
Three Layer Film Blowing Machine
|
Three Layer Film Blowing Machine
|
||
|
model
|
DB-55×2.65×1/1300
|
DB-60×2.70×1/1600
|
DB-65×2.70×1/1800
|
||
|
Screw diameter(mm)
|
Ф55×2 Ф65×1
|
Ф60×2 Ф70×1
|
Ф65×2 Ф70×1
|
||
|
Die size(mm)
|
Ф230
|
Ф250
|
Ф270
|
||
|
Screw L/D length
|
32:1
|
32:1
|
32:1
|
||
|
Folding Width of Film(mm)
|
1200
|
1400
|
1600
|
||
|
Thickness of film(mm)
|
0.002-0.15mm
|
0.002-0.15mm
|
0.002-0.15mm
|
||
|
Output(kg/h)
|
80-120kg/h
|
90-140kg/h
|
100-160kg/h
|
||
|
Motor Power(kw)
|
22KW×2 30KW×1
|
22KW×2 37KW×1
|
37KW×2 45KW×1
|
||
|
Cylinder material
|
38CrMoAl
|
38CrMoAl
|
38CrMoAl
|
||
|
Take-up speed (m/min)
|
10-65
|
10-65
|
10-65
|
||
|
Winding speed (m/min)
|
10-65
|
10-65
|
10-65
|
||
|
Product description & advantages
|
Applicable raw materials: LDPE/LLDPE/ MLLDPE/PLA+PBAT+ calcium carbonate + corn starch/biological base/recycled material
Advantages: reduce product cost, improve quality |
|
|
||
|
Application area
|
Used for the production of express bags, flat bags, environmentally friendly packaging bags, composite film, liquid packaging
film, industrial packaging film and other products. |
|
|
||
