- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
JTSPEEDWORK
-
Model Number:
-
JT-K8025
-
Working frequency:
-
860~960MHz
-
Dimension:
-
80*25*1.26mm
-
Protocol:
-
ISO/IEC 18000-6C,EPC Class1 Gen2
-
Working mode:
-
Passive
-
Working life:
-
100,000 times
-
Surface material:
-
White PET
-
Working temperature:
-
-40°C to + 85°C
Quick Details
-
Special Features:
-
Waterproof / Weatherproof
-
Communication Interface:
-
RFID
-
Frequency:
-
860-960mhz
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
JTSPEEDWORK
-
Model Number:
-
JT-K8025
-
Working frequency:
-
860~960MHz
-
Dimension:
-
80*25*1.26mm
-
Protocol:
-
ISO/IEC 18000-6C,EPC Class1 Gen2
-
Working mode:
-
Passive
-
Working life:
-
100,000 times
-
Surface material:
-
White PET
-
Working temperature:
-
-40°C to + 85°C
Products Description
|

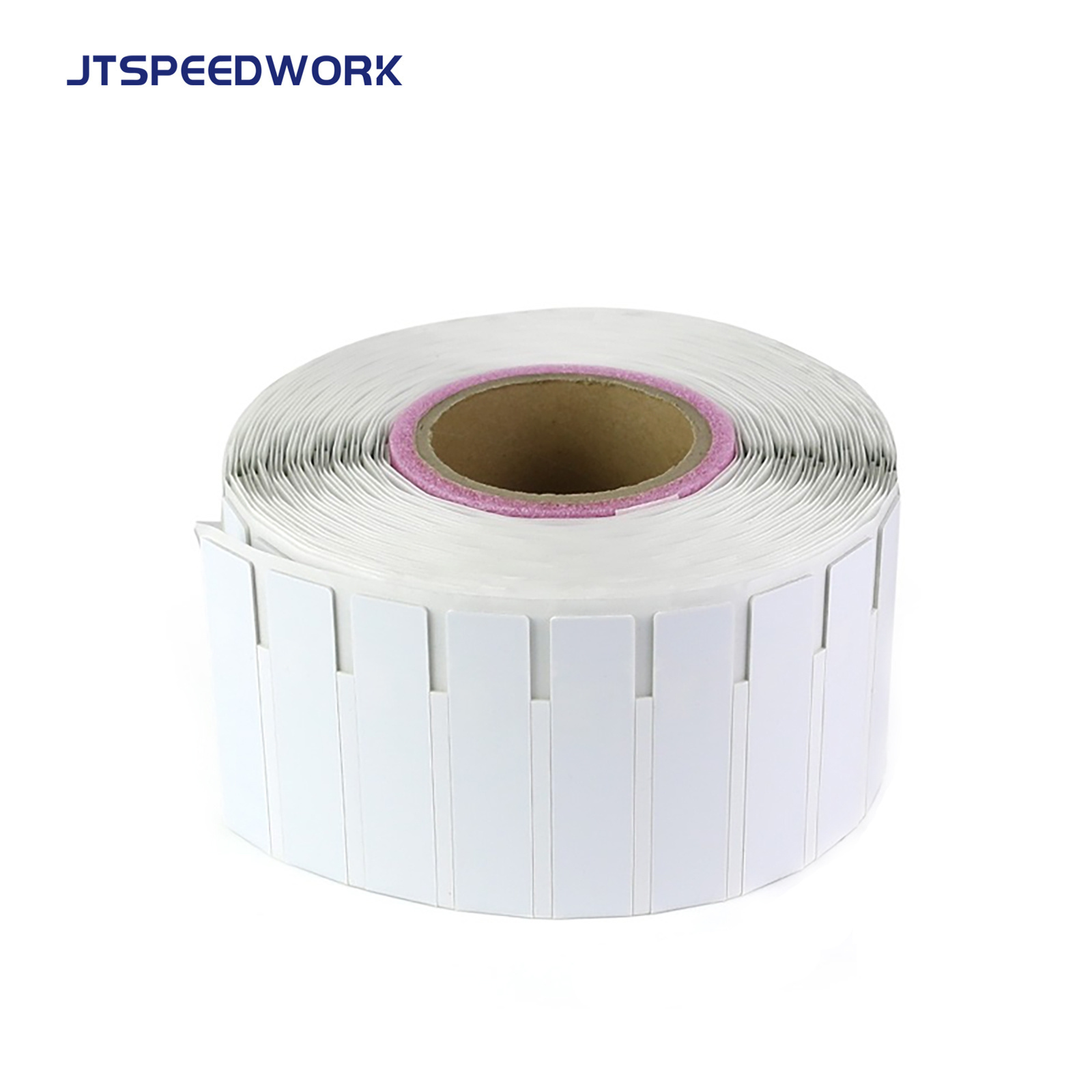

JT-K8025 Flex Metal Tag
|
|
|
|
Protocol
|
EPC Class 1 Gen 2 (ISO 18000-6C)
|
|
|
Working frequency
|
902-928MHz
|
|
|
Chip
|
Impinj Monza R6-P
|
|
|
Memory
|
32-bits User
|
|
|
|
48-bitsTID
|
|
|
|
128-bits EPC
|
|
|
Storage Temp
|
-40°F to +185°F (-40°C to + 85°C)
|
|
|
Working Temp
|
-40°F to +185°F (-40°C to + 85°C)
|
|
|
Weight（roll）
|
0.71 kg (500 pcs)
|
|
|
Dimensions(mm)
|
80(+/- 1) x25(+/- 0.8) x1.26(+/- 0.1)
|
|
|
Width of Liner
|
83(+/- 1)mm
|
|
|
Inlay Pitch
|
30(+/- 0.8)mm
|
|
|
Gap
|
25(+/- 0.1)mm
|
|
|
R Angle
|
1.5(+/- 0.2)mm
|
|
|
Print Performance
|
Excellent
|
|
|
Read Rangeon metal
|
0-6M by JT-972 handheld reader
|
|
|
Read Range onon metal
|
0-10M by JT-8288 Middle range Fixed Reader
|
|
|
Read Range onon metal
|
0-15M by JT-8290 Long range Fixed Reader
|
|
|
Surface Material
|
White PET
|
|
|
Adhesive
|
PSA
|
|
|
Standard Packing
|
500pcs/roll
|
|
|
I.D.
|
3 in (76.2 mm)
|
|
|
O.D.
|
8 in (203 mm)
|
|
|
Printer
|
Zebra RZ400/R110Xi4, SATO CL4NX,Toshiba SX-5
|
|
|
Model
|
Size
|
Chip
|
Memory
|
Feature
|
|
JT-K4025
|
40*25*1mm
|
Impinj Monza R6-P
|
32-bit User, 48-bit TID, 128-bit EPC
|
|
|
JT-K5015
|
50*15*1.26mm
|
NXP Ucode 8
|
128-bit EPC,48-bit TID,0-bit User
|
|
|
JT-K6025
|
60*25*1.26mm
|
Impinj Monza R6
|
0-bit User, 48-bit TID, 96-bit EPC
|
|
|
JT-K8025
|
80*25*1.26mm
|
Impinj Monza R6-P
|
32-bit User, 48-bit TID, 128-bit EPC
|
|
|
JT-K6505
|
65*5*1.26mm
|
NXP Ucode 8
|
128-bit EPC,48-bit TID,0-bit User
|
|
|
JT-K2020
|
20*20*1mm
|
Impinj Monza R6-P
|
32-bit User, 48-bit TID, 128-bit EPC
|
tamper-proof
|
|
JT-K7025
|
70*25*1.26mm
|
Impinj Monza R6-P
|
32-bit User, 48-bit TID, 128-bit EPC
|
tamper-proof
|
|
NXP
|
|
|
|
|
|
|||||
|
Chip type
|
Reserved Bank
|
|
EPC Bank
(bits)
|
TID Bank
(bits)
|
User Memory Bank
(bits)
|
|||||
|
|
Access
|
Kill
|
(bits)
|
(bits)
|
(bits)
|
|||||
|
|
(bits)
|
(bits)
|
|
|
|
|||||
|
UCODE® DNA
|
32
|
32
|
224
|
96
|
3072
|
|||||
|
UCODE@ DNA Track
|
32
|
32
|
448
|
96
|
256
|
|||||
|
UCODE@ 9xe
|
32
|
32
|
128
|
96
|
None
|
|||||
|
UCODE@ 9xm
|
32
|
32
|
496
|
96
|
752
|
|||||
|
UCODE@ 9
|
None
|
32
|
96
|
96
|
None
|
|||||
|
UCODE@ 8
|
32
|
32
|
128
|
96
|
None
|
|||||
|
UCODE@ 8m
|
32
|
32
|
128/96
|
96
|
0/32
|
|||||
|
UCODE@ 7xm
|
32
|
32
|
448
|
96
|
2048
|
|||||
|
/UCODE® 7xm+
|
|
|
|
|
|
|||||
|
UCODE@ G2iM
|
32
|
32
|
128/448
|
96
|
640/320
|
|||||
|
UCODE® are registered trademarks of NXP B.V. and are used under license.
|
|
|
|
|
|
|||||
|
Alien
|
|
|
|
|
|
|||||
|
Chip type
|
Reserved Bank
|
|
EPC Bank
(bits)
|
TID Bank
(bits) |
User Memory Bank
(bits)
|
|||||
|
|
|
|
|
|
|
|||||
|
|
Access (bits)
|
Kill (bits)
|
|
|
|
|||||
|
|
|
|
|
|
|
|||||
|
Higgs@-EC
|
32
|
32
|
96/ 128
|
48
|
128
|
|||||
|
Higgs@ 10
|
32
|
32
|
96/ 128
|
48
|
96/32
|
|||||
|
Higgs@ 9
|
32
|
32
|
96
|
96
|
688
|
|||||
|
Higgs@ 4
|
32
|
32
|
128
|
96
|
128
|
|||||
|
Higgs@ 3
|
32
|
32
|
96
|
96
|
512
|
|||||
|
Impinj
|
|
|
|
|
|
|||||
|
Chip type
|
Reserved Bank
|
|
EPC Bank
(bits)
|
TID Bank
(bits) |
User Memory Bank
(bits)
|
|||||
|
|
|
|
|
|
|
|||||
|
|
Access (bits)
|
Kill (bits)
|
|
|
|
|||||
|
|
|
|
|
|
|
|||||
|
Monza 4QT
|
32
|
32
|
128
|
96
|
512
|
|||||
|
Monza 4E
|
32
|
32
|
496
|
96
|
128
|
|||||
|
Monza 4D
|
32
|
32
|
128
|
96
|
32
|
|||||
|
Monza R6-P
|
32
|
32
|
96/128
|
96
|
64/32
|
|||||
|
Monza R6-A
|
32
|
32
|
96
|
96
|
None
|
|||||
|
Monza R6
|
None
|
None
|
96
|
96
|
None
|
|||||
|
M730
|
32
|
32
|
128
|
96
|
None
|
|||||
|
M750
|
32
|
32
|
96
|
96
|
32
|
|||||
|
M770
|
32
|
32
|
128
|
96
|
32
|
|||||
|
M775
|
32
|
32
|
128
|
96
|
32
|
|||||
|
M780
|
32
|
32
|
496
|
96
|
128
|
|||||
|
M781
|
32
|
32
|
128
|
96
|
512
|
|||||
