Quick Details
-
Brand Name:
-
Winning
-
Standard or Nonstandard:
-
Standard
-
Self Actuator:
-
Temperature Control
Quick Details
-
Port Size:
-
3/4"
-
Place of Origin:
-
Beijing, China
-
Model Number:
-
FP65
-
Brand Name:
-
Winning
-
Standard or Nonstandard:
-
Standard
-
Self Actuator:
-
Temperature Control

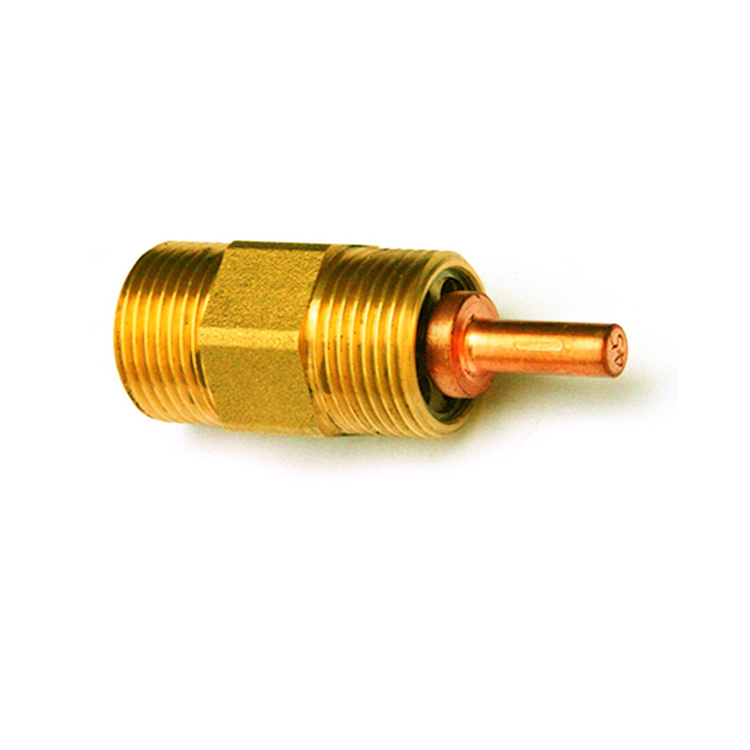

Product Description:
1. Keep your solar collectors and exposed pipes from freezing with Beijing Winning valves.
The Valves operates without any electrical power or air pressure.
2. The valve contains thermal actuator. When the temperature approaches freezing,
the valve opens to discharge the cold water and recloses upon warmer water
replacement. This cycle continues preventing panel and piping freeze up.
Tips:
1. Freeze Protection Valve know as Anti Freeze Valve is originally developed from America.
That is why we take American Data as our standard.
2. The well know brand like Therm-Omega-Tech, Vernatherm, Dole, Ogontz and so on.
3. Based on the Chinese labor cost, Beijing Winning Freeze protection valves are very
competitive in the world market.
Performance:
|
Model |
Port Size |
Open~Close Temperature (°C) |
Maximum Operating Temperature (°C) |
Maximum Operating Pressure (MPa) |
Flow Rate (Cv) |
Dimension (mm) |
Net Weight (g) |
|
FP 65 |
DN20 |
1~4 |
+150 |
1.0 |
0.6 |
Φ30*69 |
130 |
|
FP 65 |
DN20 |
3~6 |
+150 |
1.0 |
0.6 |
Φ30*69 |
130 |
find the bsest frost valve in www.valcoo.com
Design Features:
* Brass body and thermal element
* Narrow temperature band
* Compact, low mass - Fast response
* Ram-type plug for reliable tight shutoff
* Downstream actuator for greater sensitivity
* Sensitive to temperature only
* Unaffected by pressure variations
* Easy installation with pipe wrench
* Discharges the minimum amount of water required to prevent freeze damage
Application:
Team:
Beijing Winning Thermo Control Equipment Co., Ltd focuses on economical solutions of freeze/scald prevention.
The teammates are positive, innovative, professional, and self-motivated.
Production and Testing:
The Key to success is Quality. Take the American data as our standard, we provide the most
economical thermo control valves.
1. Max Operating Temperature 300°F (150 °C)
2. Flow Rate (Cv.06)
3. Open-Close Temperature 33.8°F--39.2°F (1°C-4 °C)
