Quick Details
-
Image Sensor:
-
1/2.7" Progressive Scan CMOS
-
Lens:
-
3mm-11.5mm lens
-
IR Distance:
-
20M
-
Feature:
-
Night Vision
-
Compression:
-
H.265/H.264 main profile
-
Support:
-
ONVIF
-
Audio Compression:
-
G711,PCM
-
PTZ function:
-
4 Patrol,1 Pan scan
-
Waterproof:
-
IP66 Water-proof
Quick Details
-
Special Features:
-
Vandal-proof
-
Place of Origin:
-
Guangdong, China
-
Resolution:
-
1080P
-
Image Sensor:
-
1/2.7" Progressive Scan CMOS
-
Lens:
-
3mm-11.5mm lens
-
IR Distance:
-
20M
-
Feature:
-
Night Vision
-
Compression:
-
H.265/H.264 main profile
-
Support:
-
ONVIF
-
Audio Compression:
-
G711,PCM
-
PTZ function:
-
4 Patrol,1 Pan scan
-
Waterproof:
-
IP66 Water-proof

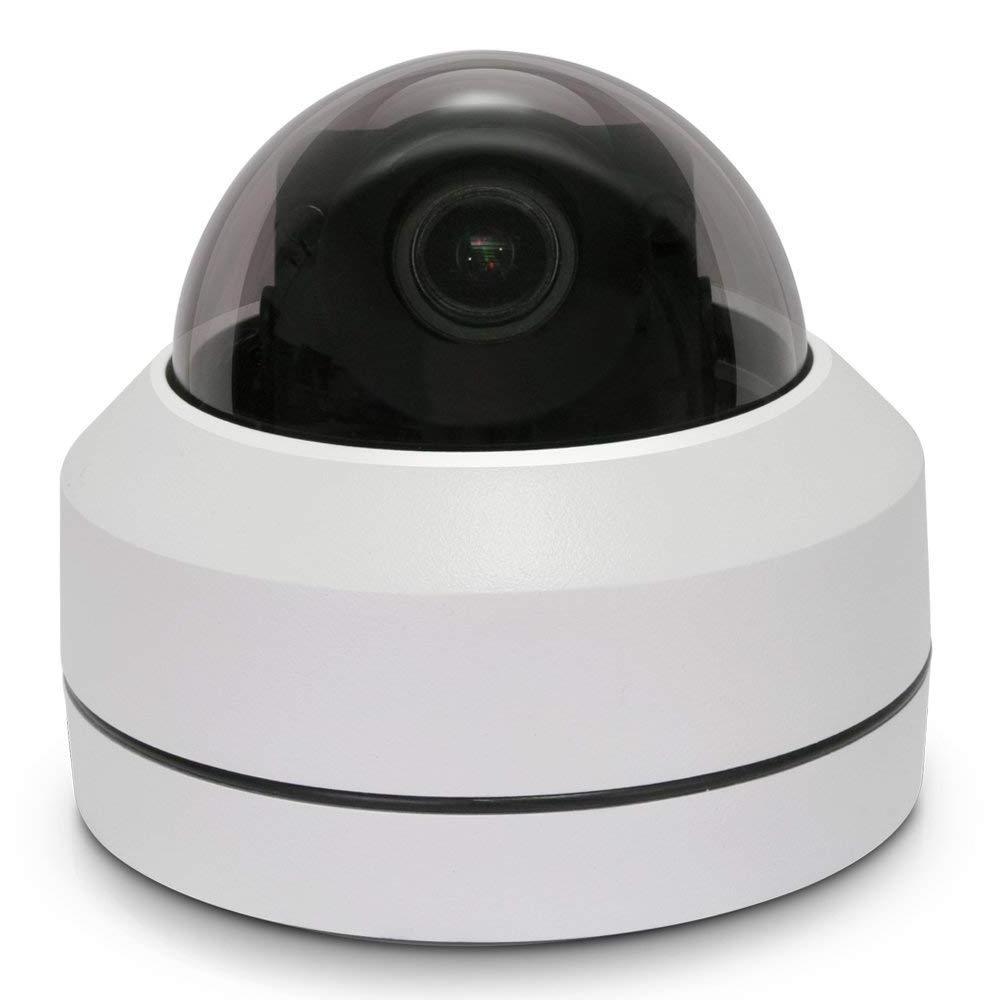

2.5 Inch IP66 Waterproof 4X Zoom PTZ IP Camera
4X optical zoom, auto focus
-
Low-light COMS sensor
-
H.265/H.264 main profile
-
True Day/Night, 3D DNR, Digital WDR
-
Backlight compensation, and auto gain control (AGC)
-
3D intelligent positioning, 254 programmable presets
-
Support the P2P on Android, IOS
-
Support Onvif Profile S
-
Tow simultaneous video streams
-
Pan: 355° Continuous Rotate, Tilt: From 0-90° (auto flip)
4 Patrol ,1Pan scan
-
Surface Mount and Pendent mount optional, 3-axis adjustment
-
IP66 environmental rating
|
Camera |
Image sensor |
1/2.7" 2.0M Pixels Progressive Scan CMOS |
|
Signal System |
PAL/NTSC |
|
|
Focal length |
3mm-11.5mm,5X |
|
|
Aperture Range |
F1.6 |
|
|
Angle of View |
110(Wide)/°60(Tele) |
|
|
Zoom speed |
Approx 3s(Optical Wide-Tele) |
|
|
Main stream |
1920*1080,1-20(30)fps;1280*720,1-25(30)fps |
|
|
sub-stream |
640*480,1-25(30)fps;480*360,1-25(30)fps;352*288,1-25(30)fps;176*144,1-25(30)fps |
|
|
MJPEG |
1920*1080,1280*720,Close |
|
|
Min. Illumination |
Color:0.1Lux@(F1.2,AGC ON) B/W:0.01Lux@(F1.2,AGC ON) |
|
|
Wide dynamic range |
Digital WDR,≥70dB |
|
|
S / N ratio |
≥50dB(AGC OFF) |
|
|
AGC |
Auto / Manual |
|
|
White balance |
Auto/Manual /ATW/Indoor/Outdoor/Daylight lamp/Sodium lamp |
|
|
Digital noise Reduction |
DNR,3DNR |
|
|
Exposure mode |
Auto/Manual/shutter mode(shutter range variable) |
|
|
Shutter speed |
1/2 - 1/20,000s |
|
|
Day & Night |
Day / Night / External control(IR Cut Filter) |
|
|
3D Positioning |
Click centering, Zoom by mouse dragging |
|
|
Streams |
Dual streams |
|
|
Bitrate |
CBR/VBR, bitrate:32Kbps~10Mbps variable |
|
|
Video Compression |
H.265/H.264 Main Profile&M-JPEG |
|
|
Audio Compression |
G711,PCM |
|
|
OSD |
Support zoom,camera name,time display,OSD position can be adjusted |
|
|
Simultaneous Live View |
Main stream Up to 3,Sub-stream Up to 5 |
|
|
P2P |
Android,IOS |
|
|
PTZ |
IR-distanse |
20M |
|
Movement |
Pan: 355° Continuous Rotate;, Preset Speed: 0-25° /s |
|
|
Tilt Range/ Speed |
Tilt: From 0-90° (auto flip), Preset Speed: 0-20° /s |
|
|
Proportional zoom |
Support |
|
|
Number of preset |
15 |
|
|
PTZ function |
4 Patrol,1 Pan scan |
|
|
Power-off memory |
Support |
