Quick Details
-
Power:
-
Hydraulic
-
Certification:
-
ce
-
Machine Type:
-
Pipe and Tube Bending Machine
-
Raw Material:
-
Steel Bar
-
Name:
-
Twin Head Tube Bending Machine
-
Color:
-
Optional
-
Application:
-
Die Making Die Cutting Bending Machine
-
Warranty:
-
One Year
-
Type:
-
SW38A
-
Voltage:
-
220V/380V/415V/440V/customized
-
Material:
-
Stainess Steel
-
Model Number:
-
SW38A
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Telhoo
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Power:
-
Hydraulic
-
Certification:
-
ce
-
Machine Type:
-
Pipe and Tube Bending Machine
-
Raw Material:
-
Steel Bar
-
Name:
-
Twin Head Tube Bending Machine
-
Color:
-
Optional
-
Application:
-
Die Making Die Cutting Bending Machine
-
Warranty:
-
One Year
-
Type:
-
SW38A
-
Voltage:
-
220V/380V/415V/440V/customized
-
Material:
-
Stainess Steel
-
Model Number:
-
SW38A
SW38A Twin Head Tube Bending Machine, Twin Head Rotary Pipe Bender
| Categories | Other pipe processing machines |
|---|---|
| Brand | TELHOO bending machine |
| Model | SW38A |
| Condition | New |
| Raw Material | Pipe |
| Power | Hydraulic |
| Automation | Automatic |
| Certificate | CE |
| After-sales Service Provided | Engineers available to service machinery overseas |
| Head | double |
| twin head tube bending machine | twin head tube bending machine |
| FOB port | Shanghai, China |
| Terms of Payment | L/C, T/T, Western Union, MoneyGram |
| Download DOC | |
| Update Time | 2017-05-19 |
Detail Information

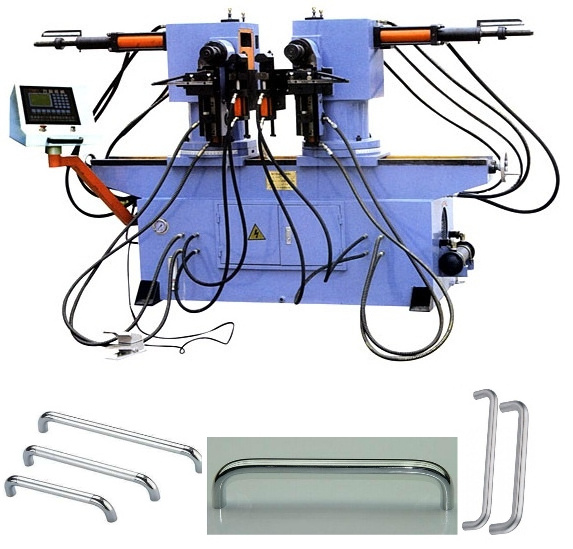

SW38A twin head tube bending machine, twin head rotary pipe bender
Adapted material:
steel pipe, stainless steel, copper pipe, aluminum pipe etc.
Main specification:
Uses the microcomputer control,operates easily ,performance stable,double-end curving synchronization shapes work piece of the bended pipe opens ,the angle is precise, Double-end curving angle may adjust from0-1850,but must consider the material-taking problem.May establish two ases different angles to be curving
1. According to different base frame, it can be divided into standard type and rotary type.
2. Hand-operated, auto, semi-circulation and other functions can be chosen.
3.PLC control, imported electric elements. The program can be stored forever, no losing.
4. Foot switch has auto start, emergency stop, emergency-stop and going on function, it has high safety.
5. Double head can be used separately.
6.Three pieces can be bended one times.
Main Technical Parameter
| Item Model | SW38A | SW50A |
| Power of electric machine | 5.5 | 7.5 |
| Max. Steel, Tube O.D. | Φ38x1.8t | Φ50x2.0t |
| Max. Stainless Steel, Tube O.D. | Φ32x1.8 | Φ48x2.5 |
| Max. Bending Radius (mm) | 38-200 | 50-250 |
| Center Distance between Two Shafts (mm) | 170-1700 | 170-1700 |
| Max. Bending Angle (°) | 185 | 185 |
| Bending-Pipes quantity once | Φ22x2 | Φ25x2 |
| Motor power for Hydraulic (M pa) | 14 | 14 |
| Gross Weight | 1500 | 2500 |
| Machine Dimension | 270x126x132 |
350x150x190
|
Standard Accessories
:
1.Operation manual
2.Seal rings
3.I
nner hexagon spanner
4.
Lubricating screw
Package:
Necessary data before offical quotation:
|
Material(carbon steel,stainless steel,aluminum tube,copper tube)? |
|
|
Outer diameter*wall thickness? |
|
|
Bending radius
(
R= MM
)?
|
|
|
Length of tube
(MM)?
|
|
|
How many angles on a tube? |
|
|
Is it bending “ Elbow ” if it is,what`s the angle of bending? |
|
|
Pls provide drawings or sample. If need punching or push bending pls inform us in addition. |
|
|
Sample Address: Changan Road,Nanfeng Town,Zhangjiagang City,Jiangsu Province,China Zhangjiagang city Taihe(Telhoo)Machinery Manufacture Co.,Ltd Candice -86-1 8379159763 |
|
Contact:
Payment terms and After sales service:
1.Payment terms: 30% T/T down payment, 70% T/T before shipment.
2.Delivery time: No later than 10 days since receiving the advance payment.
3.Validity of the price: One month
4.Package: Iron case. Wooden box.
5.Warranty period: We guarantee machine quality for one year, during this year, if spare parts of the machine were damaged, we can send the component to the customer by DHL, TNT freely.
6.Our factory provide the service for the customer forever, if the customer need operation help, can contact us by Skype, Email and Telephone at any time, we provide 24 hours on-line service.
