- Product Details
- {{item.text}}
Quick Details
-
Mounting Type:
-
manual installation
-
Description:
-
Photoelectric Sensor, sensor
-
Manufacturing Date Code:
-
2023
-
Model Number:
-
TMC 3 xxx
-
Type:
-
OPTIC SENSOR
-
Place of Origin:
-
Shenzhen
-
Brand Name:
-
SLC
-
Theory:
-
magnetic encoding sensor
-
Output:
-
Contact output
-
Safety Satndard:
-
ISO 13849-1 IEC/EN60947-5-3
-
Safety Type:
-
Type 3/4
-
Detection distance:
-
6-24mm
-
Supply voltage:
-
24V DC ±15%
-
Output method:
-
Safety /Aux output
-
Response time:
-
5ms
-
MOQ:
-
1 Set
-
Application:
-
Industrial Automatic
-
Packaging:
-
waterproof
-
Connection:
-
PLC
Quick Details
-
Use:
-
Protection
-
Series:
-
switch sensor
-
Features:
-
non-contact control
-
Mounting Type:
-
manual installation
-
Description:
-
Photoelectric Sensor, sensor
-
Manufacturing Date Code:
-
2023
-
Model Number:
-
TMC 3 xxx
-
Type:
-
OPTIC SENSOR
-
Place of Origin:
-
Shenzhen
-
Brand Name:
-
SLC
-
Theory:
-
magnetic encoding sensor
-
Output:
-
Contact output
-
Safety Satndard:
-
ISO 13849-1 IEC/EN60947-5-3
-
Safety Type:
-
Type 3/4
-
Detection distance:
-
6-24mm
-
Supply voltage:
-
24V DC ±15%
-
Output method:
-
Safety /Aux output
-
Response time:
-
5ms
-
MOQ:
-
1 Set
-
Application:
-
Industrial Automatic
-
Packaging:
-
waterproof
-
Connection:
-
PLC
Functional features

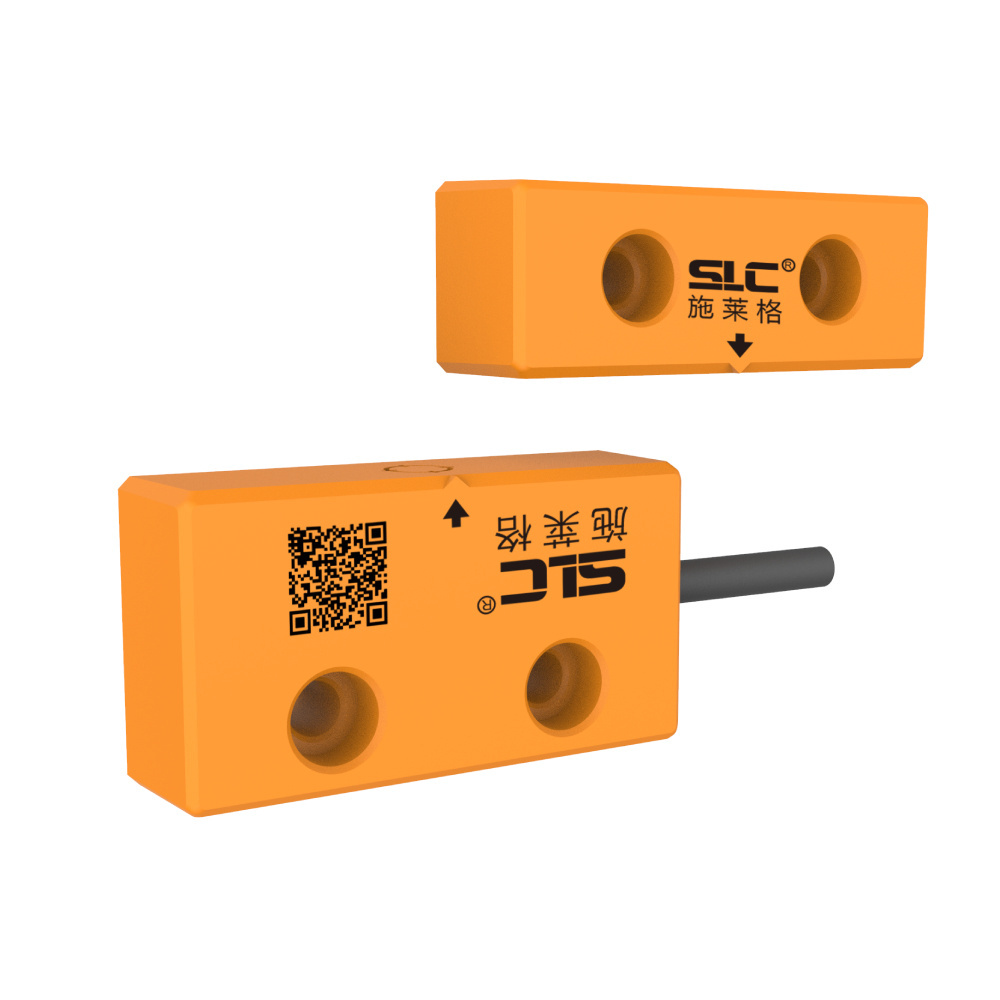

The design of TMC3 magnetic code safety switch combines multiple magnetic sensitive elements, these magnetic sensitive elements parts must be triggered in a specific order to work normally, non-contact execution, and has a high misalignment tolerance, detection range is large, easy to install, can be multiple series, TMC3A2C/TMC3B2C can be used with SCDA127R security module up to level 4 safety level, through the CE certification, in line with ISO 13849-1 SIL3 PLe. Category 4.
| Technical parameters | ||
| Security level | ||
| Safety grade standard | ISO13849-1 , IEC/EN60947-5-3 | |
| Security classification |
3 types of switches conforming to iso13849-1;
Dual channel interlock is suitable for class 3 or 4 systems |
|
| Output | ||
| Safety output | 2 N.C.REEDS | |
| Round way | Direct outgoing (A); Outgoing tape navigation plug (B) | |
| Technical parameters | ||
| Working distance | Make.Min:8mm;Break.Max:17mm | |
| Typical tolerance | see alignment | |
| Output current (maximum) | 200mA | |
| Response time | 5ms | |
| Protection grade | Ip67(Can be customizedIP69K) | |
| Operating frequency | 1Hz | |
| Working temperature | -10~+55℃ | |
| Relative humidity | 5%~95% | |
| material | UL certified thermoplastics | |
Products certification
Our Exhibition
Company Cooperative units
Q: Can i get some samples ?/Do you offer samples available?
A:
Yes, Paid samples are available, sample cost can be deducted at formal order.
Q: How is the warranty?
A:
18 months warranty. We will take care of all quality issues during this period but the man-made damage, improper operation and force majeure will be excepted.
Q:How about the quality of the products?
A:
Products have the certification of CE,CCC,CQC,EU,TUV,UL, and Safety Level achieved Ple,SIL,Type 4,Cat.4 etc.
Q: What is the quality guarantee?
A:
ISO 9001-2015 ,ISO 14001 -2015 certified manufacturer, strict quality control system. Besides calibration, each set product we also do aging test before shipment.
Q: Do you have any products in stock?
A:
Two factories in stock, fast delivery.
Q: Can I be your distributor?
A:
Yes, we are looking for distributors in oversea market and offer full support.
Q: Do you accepte ODM and OEM ?
A:
Please contact us for details.
