Quick Details
-
Place of Origin:
-
Jinan
-
Brand Name:
-
BCAMCNC
-
Wavelength:
-
1064nm -1070nm
-
Weight (KG):
-
50 KG
-
Marketing Type:
-
Hot Product 2021
-
Product name:
-
Handheld Laser Welding Machine
-
Application:
-
Jewelry Welding Products
-
Showroom Location:
-
Russia
-
Laser type:
-
Fiber Laser Source
-
Keywords:
-
High-quality Laser Welding Machine
-
Laser power:
-
1000W 2000W 3000W (optional)
-
Application material:
-
Metal Stainless Steel Aluminum
-
Laser wavelength:
-
1064nm
-
Welding mode:
-
Manual Handheld
-
Advantage:
-
Welding Precision
Quick Details
-
Max. Output Power:
-
2000w
-
Usage:
-
metal welding
-
Laser Source Brand:
-
RAYCUS /IPG / Max
-
Place of Origin:
-
Jinan
-
Brand Name:
-
BCAMCNC
-
Wavelength:
-
1064nm -1070nm
-
Weight (KG):
-
50 KG
-
Marketing Type:
-
Hot Product 2021
-
Product name:
-
Handheld Laser Welding Machine
-
Application:
-
Jewelry Welding Products
-
Showroom Location:
-
Russia
-
Laser type:
-
Fiber Laser Source
-
Keywords:
-
High-quality Laser Welding Machine
-
Laser power:
-
1000W 2000W 3000W (optional)
-
Application material:
-
Metal Stainless Steel Aluminum
-
Laser wavelength:
-
1064nm
-
Welding mode:
-
Manual Handheld
-
Advantage:
-
Welding Precision

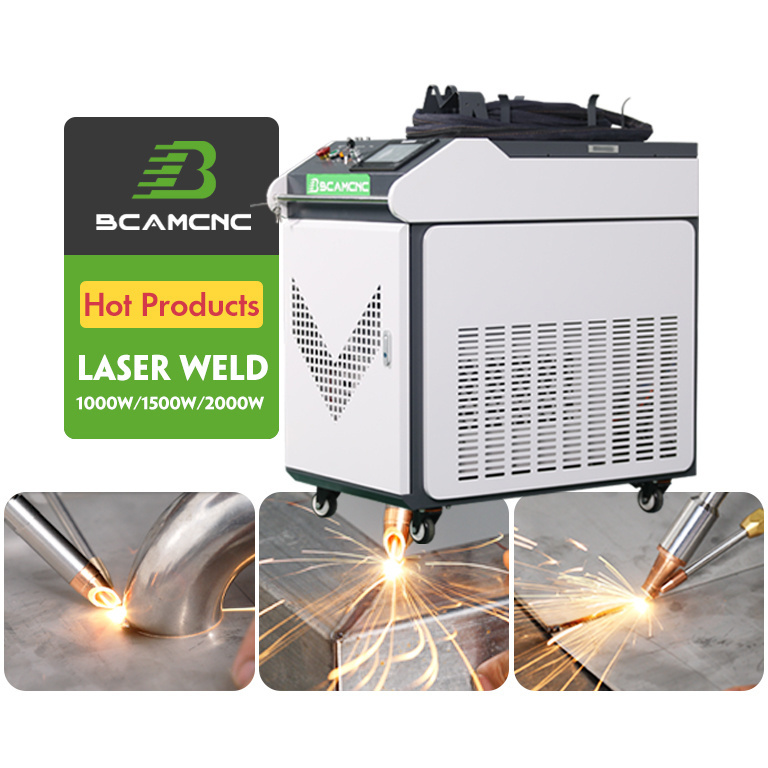

Hot sale 1000w 1500w 2000w handheld Laser Welding Machine
product details
Technical Parameters
|
Model
|
BCW-500W
|
BCW-1000W
|
BCW-1500W
|
BCW-2000W
|
|
Maximum laser power
|
500W
|
1000W
|
1500W
|
2000W
|
|
Laser frequency
|
50-5000HZ
|
50-5000HZ
|
50-5000HZ
|
50-5000HZ
|
|
Power adjustment range
|
10-100%
|
10-100%
|
10-100%
|
10-100%
|
|
Power instability
|
<3%
|
<3%
|
<3%
|
<3%
|
|
Welding penetration (stainless steel)
|
1.2mm
|
2.0mm
|
2.5mm
|
3.0mm
|
|
Welding penetration (carbon steel)
|
0.8mm
|
1.5mm
|
2.5mm
|
3.0mm
|
|
Welding penetration (aluminum steel)
|
1mm
|
2mm
|
3mm
|
4mm
|
|
Swing welding spot
|
Solder spot 2-4mm
|
Solder spot 2-4mm
|
Solder spot 2-4mm
|
Solder spot 2-4
|
|
Input voltage
|
220V/50HZ
|
220V/50HZ
|
380V/50HZ
|
380V/50HZ
|
|
Total power
|
≤3KW
|
≤3KW
|
≤3KW
|
≤3KW
|
|
Automatic wire feeding
|
Optional
|
Optional
|
Optional
|
Optional
|
