The Material should be mixed by mixing machine according to our formula.
the mixed material shall be put into a auto feeding tank, and then feeded to the extruder.
- Product Details
- {{item.text}}
Quick Details
-
After-sales Service Provided:
-
Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Online support
-
wpc machine:
-
wpc pellet production line
-
plastic material:
-
pp pe pvc
-
wood material:
-
rice husk/straw/wood sawdust/bamboo straw
-
door panel making:
-
pvc door making machine
-
wpc board making:
-
wpc board making machine
-
wpc profile:
-
wpc gazebo profile machine
-
good quality:
-
turnkey project for wpc machine
-
sanding:
-
wpc sanding machine
-
brushing:
-
wpc brushing machine
-
embossing:
-
wpc embossing machine
-
Output (kg/h):
-
300 - 500 kg/h
-
Certification:
-
CE certificated wpc machine
Quick Details
-
Screw Design:
-
Double-screw
-
Screw diameter (mm):
-
75 mm
-
Place of Origin:
-
Shandong, China
-
After-sales Service Provided:
-
Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Online support
-
wpc machine:
-
wpc pellet production line
-
plastic material:
-
pp pe pvc
-
wood material:
-
rice husk/straw/wood sawdust/bamboo straw
-
door panel making:
-
pvc door making machine
-
wpc board making:
-
wpc board making machine
-
wpc profile:
-
wpc gazebo profile machine
-
good quality:
-
turnkey project for wpc machine
-
sanding:
-
wpc sanding machine
-
brushing:
-
wpc brushing machine
-
embossing:
-
wpc embossing machine
-
Output (kg/h):
-
300 - 500 kg/h
-
Certification:
-
CE certificated wpc machine
Product Description
wpc granule making machine using wood wastage and plastic wastage
The raw material is recycled plastic, Wood Powder,CaCo3 and chemicals, the ratio as bellow:
|
Item
|
Material name
|
Mixing Ratio
|
|
01
|
Recycled PP/PE plastic
|
25-30 kgs
|
|
02
|
wood powder
|
50-70 kgs
|
|
03
|
CaCo3
|
0-10 kgs
|
|
04
|
Chemical additives
|
around 5 kgs
|
wpc granule making machine using wood wastage and plastic wastage
This WPC granulation machine uses recycled PP/PE plastic and wood powder as raw material to make WPC granules, the WPC granules can be used or making WPC profiles, such as WPC decking, WPC wall cladding, WPC Post, WPC fence...
Detailed Images

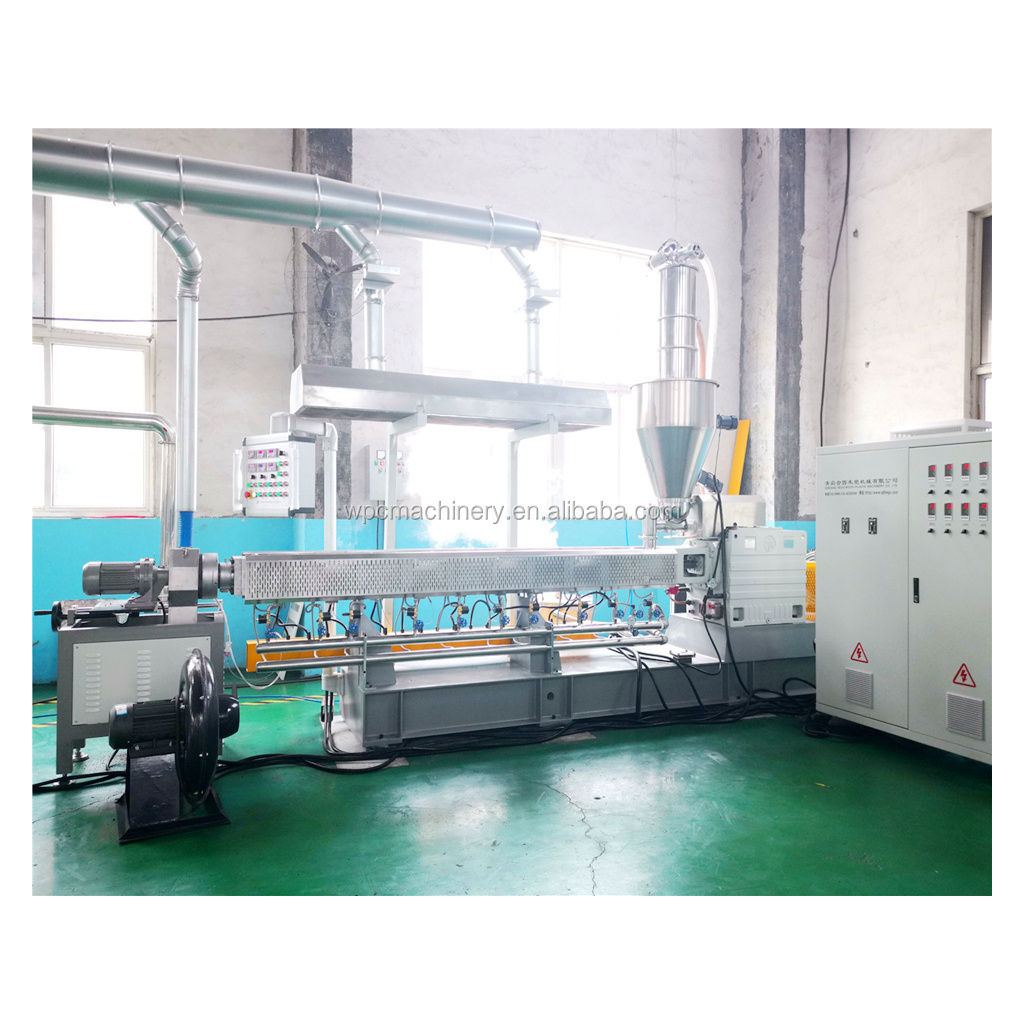

Equipment list for
wpc granule making machine using wood wastage and plastic wastage
|
Equipment for WPC granulation machine
|
Quantity
|
|
Auto feeder
|
One set
|
|
Parallel double screw extruder
|
One set
|
|
Granulation die head
|
One set
|
|
Granules cutting or crushing device
|
One set
|
|
First step air cooling machine
|
One set
|
|
Second step air cooling device
|
One set
|
|
Third step air cooling device
|
One set
|
Feeding machine
Extruder
Extruder type: Parallel double screw extruder,we equip high capacity extruder with specially designed screw and barrel for WPC
granulation machine, it can work for 20-30% recycled PP/PE and 60-70% wood powder composition
Screw and barrel
we equip parallel double screw for WPC granulation machine.
the L/D of the screw is 40:1 to ensure the WPC material will have enough time to be plastizition and composited together.
We use special structure and material for barrel to ensure long time using life. our WPC granulation screw and barrel can be used
for more than one year for continously production
Moisture exhuasting system
This WPC granlation machine designed with good moisture exhuasting system to taking out the moisture in the material,there is 4
holes on the barrel for moisture out,
and there is a suction system on top for taking away the moisture
Smoking collection device
When the material come out from the die head, the moisture and smoking may come out from the die head, we equip good suction
system for taking away the moisture and smoking at die head,
Granulation die head and cutting
Adopting Hot cutting granulation systemControl by ABB inverter
Power: 2.2kw
Power: 2.2kw
Cooling system
Three step cooling systemCooling type: air cooling
blower power: 2.2kw
blower power: 2.2kw
Electric control system
ABB inverter
Siemens contractor
Siemens motor
Omron temperature control
Taiwan pumps
Siemens PLC control system is optional
Turnable operation panel separately
High quality cabinet with ventilation system
WPC pellets made by our WPC granulation machine
