Quick Details
-
Positioning Accuracy (mm):
-
0.01 mm
-
Travel (X Axis)(mm):
-
2030 mm
-
Travel (Y Axis)(mm):
-
3100 mm
-
Repeatability (X/Y/Z) (mm):
-
0.01 mm
-
Spindle Motor Power(kW):
-
9.0kw
-
Place of Origin:
-
Shandong, China
-
Voltage:
-
380V/50Hz
-
Dimension(L*W*H):
-
2030*3100*200mm
-
Power (kW):
-
10
-
Weight (KG):
-
1800
-
Product name:
-
CNC Wood Working Machine
-
Application:
-
MDF WOOD ACRYLIC ALUMINUM
-
Spindle:
-
Air Cooling Spindle
-
Control system:
-
Taiwan LNC Control System
-
Inverter:
-
Fuling/Delta Brand
-
Function:
-
Cutting Engraving Carving Milling
-
Model:
-
cnc wood router
-
Tool magazine:
-
Linear Tool Magazine
-
Driving system:
-
Servo Drive
-
Type:
-
ATC
Quick Details
-
Working Table Size(mm):
-
2030x3100
-
Machine Type:
-
CNC Router
-
Range of Spindle Speed(r.p.m):
-
0 - 18000 rpm
-
Positioning Accuracy (mm):
-
0.01 mm
-
Travel (X Axis)(mm):
-
2030 mm
-
Travel (Y Axis)(mm):
-
3100 mm
-
Repeatability (X/Y/Z) (mm):
-
0.01 mm
-
Spindle Motor Power(kW):
-
9.0kw
-
Place of Origin:
-
Shandong, China
-
Voltage:
-
380V/50Hz
-
Dimension(L*W*H):
-
2030*3100*200mm
-
Power (kW):
-
10
-
Weight (KG):
-
1800
-
Product name:
-
CNC Wood Working Machine
-
Application:
-
MDF WOOD ACRYLIC ALUMINUM
-
Spindle:
-
Air Cooling Spindle
-
Control system:
-
Taiwan LNC Control System
-
Inverter:
-
Fuling/Delta Brand
-
Function:
-
Cutting Engraving Carving Milling
-
Model:
-
cnc wood router
-
Tool magazine:
-
Linear Tool Magazine
-
Driving system:
-
Servo Drive
-
Type:
-
ATC
Recommend Products
Product Description

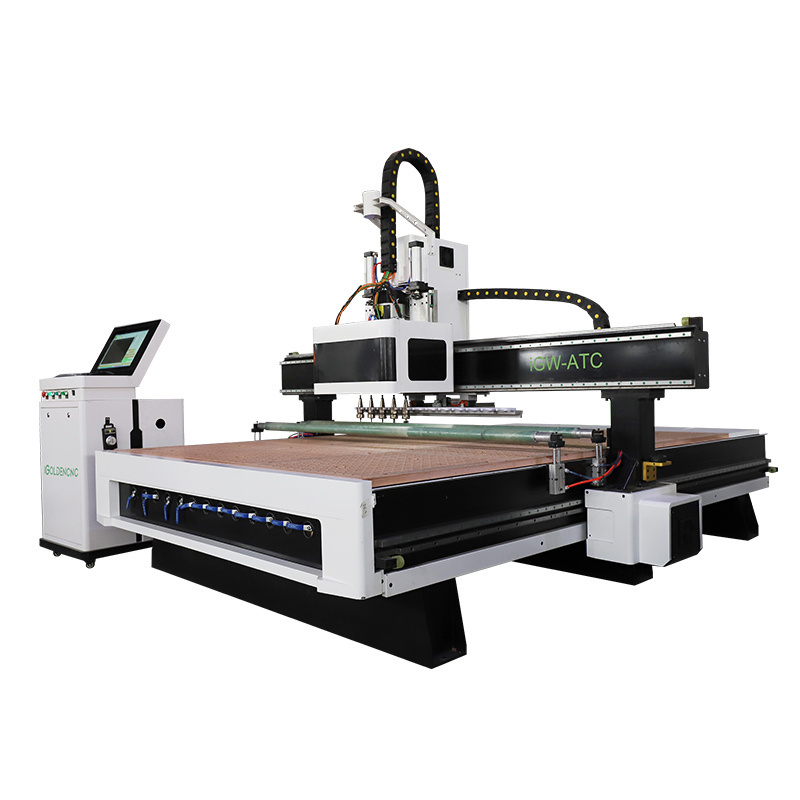

New product G8 2030 oscillating knife cutting machine cnc router ATC mdf wood engraving machine
1. STYLECNC incorporates the best controller to support the CNC router combined knife system, will provides the best return on your investment.
2. High-definition CCD visual positioning system with professional industrial camera, powerful image recognition, improve the processing accuracy and efficiency.
3. The bed is made of high-rigidity rectangular steel pipe welded and optimized dragnet structure, aging treatment to ensure the precision of the bed.
4. Transmission adopts precision servo motors match to reducer, large torque, low noise and fast speed.
5. Machine with linear automatic tool changer, which has 12 pieces different router bits to change tools speedy and freely.
6. Strong power suction vacuum pump fixed the variety materials easily.
7. Double bags dust collector ensures site cleanliness during the machine operation.
Specification
|
Description
|
Parameters
|
|
Model
|
iGW-ATC-2030
|
|
Working area
|
2030*3100*200mm
|
|
Machine Body
|
T-type Welding Structure
|
|
Gantry
|
Steel Structure
|
|
Worktable
|
Vacuum Suction with T-slot Table
|
|
Spindle
|
HQD 9.0kw Air Cooling Spindle
|
|
Tool changer
|
12 straight line change knives
|
|
Custom Configuration
|
Press wheel, vibrating knife and inclined knife
|
|
Speed
|
18000гpm
|
|
Guide Rails
|
Taiwan HIWIN
|
|
Ball Screw
|
Taiwan xinyue
|
|
Driver
|
DORAN Servo Drive and Motor
|
|
Reducer
|
Japan SHIMPO
|
|
Inverter
|
Fuling
|
|
Control System
|
XDW system
|
|
Working Voltage
|
380V/50Hz
|
Details Images
Samples
♦ It mainly used for woodworking industry, door, cabinets, kitchen utensils, chairs, decoration business, mould industry,wood panel,wave board processing, MDF sheet carving, screen, calligraphy tablet design , relief, wood furniture, computer tables, panelfurniture, office furniture,instrument industry, and so on.
♦ It can also for advertising signs, acrylic brands, 3D characters, garden or wall decoration, logo, forming system module,billboard, plate, LED/neon channel, literal-hole cut, blister Light box mold.
♦ It can also for advertising signs, acrylic brands, 3D characters, garden or wall decoration, logo, forming system module,billboard, plate, LED/neon channel, literal-hole cut, blister Light box mold.
