Quick Details
-
Cooling Model:
-
Air cooling
-
Drive method:
-
Belt drive
-
Ambient temperature:
-
-5--+45℃
-
Water discharge temperature:
-
Water-Cooling:< 40°C
-
Electricity supply:
-
380 V, 3-Ph, 50Hz
-
Motor power:
-
11kw (15Hp)
-
Noise level @ 1m:
-
64±2 dB(A)
-
Discharge presure:
-
10 bar
-
Discharge air outlet:
-
3/4"
-
Certification:
-
CE,ISO
Quick Details
-
Place of Origin:
-
Guangdong, China
-
After-sales Service Provided:
-
Overseas third-party support available
-
Compress stage:
-
Single
-
Cooling Model:
-
Air cooling
-
Drive method:
-
Belt drive
-
Ambient temperature:
-
-5--+45℃
-
Water discharge temperature:
-
Water-Cooling:< 40°C
-
Electricity supply:
-
380 V, 3-Ph, 50Hz
-
Motor power:
-
11kw (15Hp)
-
Noise level @ 1m:
-
64±2 dB(A)
-
Discharge presure:
-
10 bar
-
Discharge air outlet:
-
3/4"
-
Certification:
-
CE,ISO

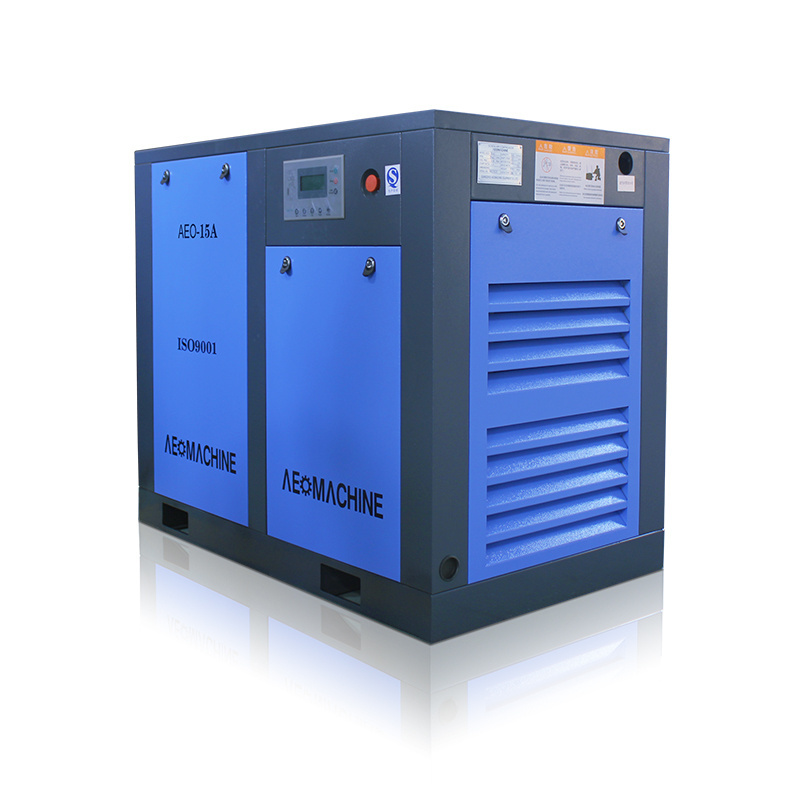

15hp 11kw cool alup compressor screw air compressor
== Detail For Product ==
|
Model:AEO-15A(7-12Bar) |
|
|
Free air delivery Discharge pressure |
1.6m3/min(57.1cfm)/7bar(0.7Mpa)(102psi) |
| 1.5m3/min(53.6cfm)/8bar(0.8Mpa)(116psi) | |
| 1.3m3/min(46.4cfm)/10bar(1.0Mpa)(145psi) | |
| 1.1m3/min(39.3cfm)/12bar(1.2Mpa)(174psi) | |
| Compress stage | Single |
| Ambient temperature | -5~45°C |
| Electricity supply | 380V,3-Ph, 50Hz |
| Motor power | 11kw(15Hp) |
| Dirve method | Belt driving |
| Cooling type | Air cooling |
| Discharge temperature | Air cooling<Ambient temperature +15°C |
| Noise level @ 1m | 64±2dB(A) |
| Discharge air/water outlet | 3/4" |
| Dimension(LxWxH) | 900×800×1100mm(35.4×31.5 ×43.3 i nch) |
| Compressor packed size | 0.8m3 |
| Weight | 440kg(970lb) |
== Other model ==
== Quality supervision,and packing ==
1 .To strive for zero failure rate,all machines have pass many strict tests before they go out.
A.1 hour full load operation to test air compressor efficiency and free air deliver per min.
B.2 hour full load operation to test air compressor spare parts performance and its temperature sensors.
C.0.5 hour full load operation to test air compressor noise level db.
D.Continue running 24 hours a day to test air compressor’s reliable performance before they go out.
2 .Multiple protective packaging to reduce rough handling damage.
3 . Unpacking can be used.
== Customer project,Satisfaction ==
== Customer And Us==
== Why Choose Us==
== Worldwide cooperative partner ==
== Energy saving and environmental protection ==
1.Takes advantage of variable-speed drive technology,extend compressor life.
2.Compressor with frequency conversion,three years later save the money more than the price of the air compressor.
3.More energy saving,the better environmental protection. Note:Generally speaking,the screw air compressor without inverter,we can add it according to your requirement.
