Quick Details
-
Brand Name:
-
PNG Solar
-
Model Number:
-
PNG166M-229
-
Certificate:
-
ISO
-
Product name:
-
Solar Cell
-
Application:
-
Solar panel
-
Material:
-
Monocrystalline Silicon Cell
-
Warranty:
-
A Grade
-
Color:
-
blue
-
Busbar:
-
10BB
Quick Details
-
Type:
-
PERC
-
Cell Efficiency:
-
22.9%
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
PNG Solar
-
Model Number:
-
PNG166M-229
-
Certificate:
-
ISO
-
Product name:
-
Solar Cell
-
Application:
-
Solar panel
-
Material:
-
Monocrystalline Silicon Cell
-
Warranty:
-
A Grade
-
Color:
-
blue
-
Busbar:
-
10BB

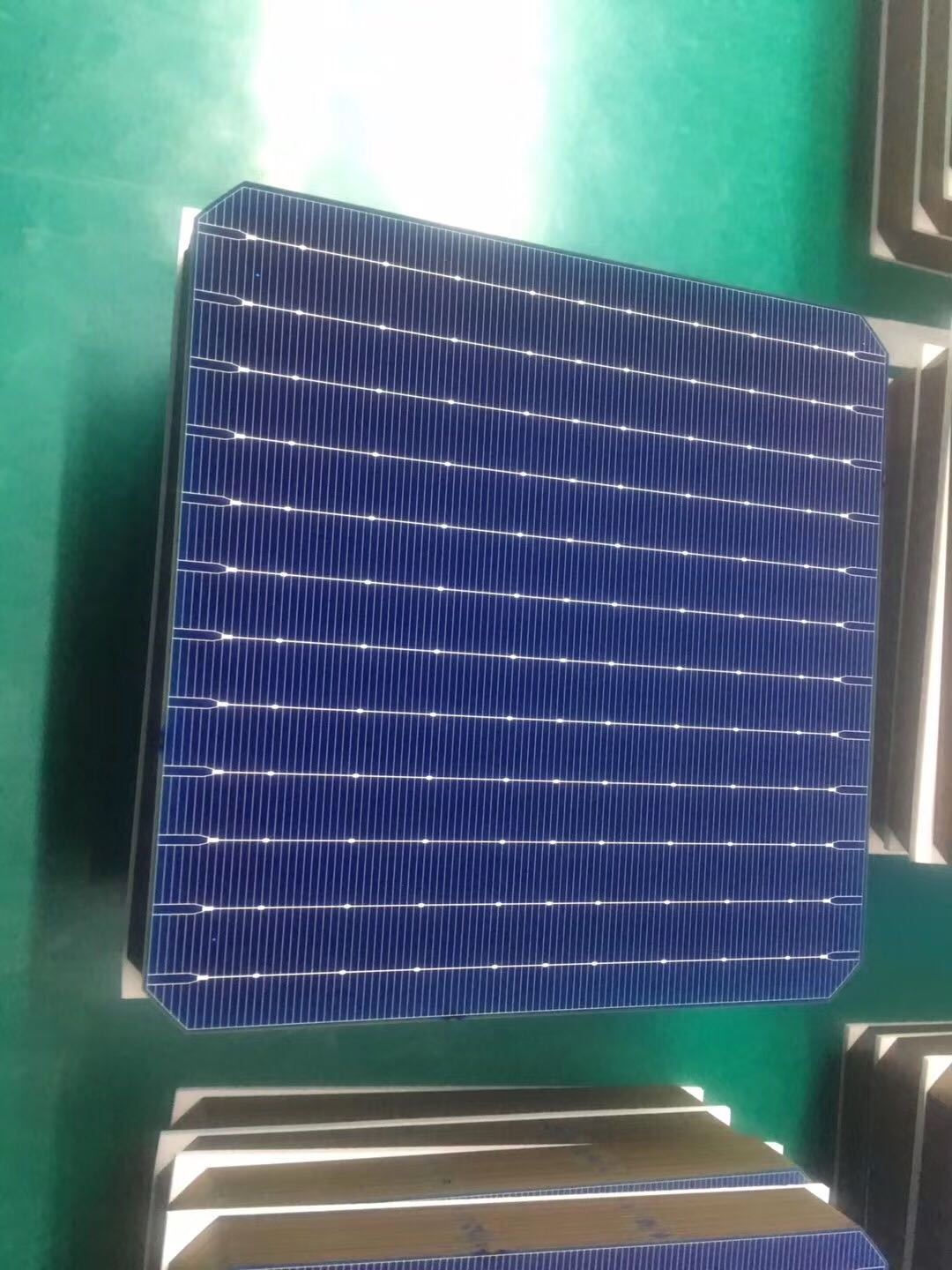

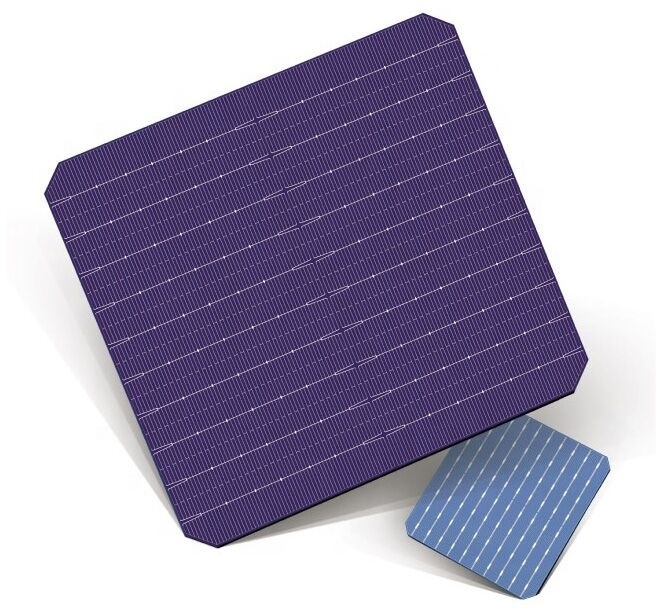

Product Description
Characteristic:
Size: 182mm × 182mm ± 0.25mm (diameter 247± 0.25mm)
Thickness: 190± 20μm
Front(-): 0.8mm-1.2 mm wide bus bars, Silicon nitride anti-reflection coating
Back (+): 1.2 mm wide discontinuous soldering pads
Thickness: 190± 20μm
Front(-): 0.8mm-1.2 mm wide bus bars, Silicon nitride anti-reflection coating
Back (+): 1.2 mm wide discontinuous soldering pads
|
FRONT ELECTRICAL PERFORMANCE PARAMETERS
|
|
|
|
|
|
|
|
|||||||
|
Code
|
Efficiency(%)
|
Pmpp(W)
|
Umpp(V)
|
Impp(A)
|
Voc(V)
|
Isc(A)
|
FF(%)
|
|||||||
|
PNG182M-233
|
23.3
|
7.69
|
0.613
|
12.539
|
0.69
|
13.583
|
82.05
|
|||||||
|
PNG182M-232
|
23.2
|
7.66
|
0.612
|
12.526
|
0.689
|
13.568
|
82.10
|
|||||||
|
PNG182M-231
|
23.1
|
7.63
|
0.611
|
12.495
|
0.688
|
13.551
|
81.94
|
|||||||
|
PNG182M-230
|
23.0
|
7.59
|
0.611
|
12.426
|
0.688
|
13.498
|
81.84
|
|||||||
|
PNG182M-229
|
22.9
|
7.56
|
0.610
|
12.401
|
0.687
|
13.479
|
81.73
|
|||||||
|
PNG182M-228
|
22.8
|
7.53
|
0.610
|
12.350
|
0.687
|
13.449
|
81.64
|
|||||||
|
PNG182M-227
|
22.7
|
7.49
|
0.608
|
12.324
|
0.686
|
13.419
|
81.50
|
|||||||
|
PNG182M-226
|
22.6
|
7.46
|
0.607
|
12.292
|
0.686
|
13.407
|
81.36
|
|||||||
|
PNG182M-225
|
22.5
|
7.43
|
0.67
|
12.245
|
0.685
|
13.397
|
81.11
|
|||||||
|
PNG182M-224
|
22.4
|
7.40
|
0.606
|
12.214
|
0.685
|
13.388
|
80.96
|
|||||||
|
PNG182M-223
|
22.3
|
7.36
|
0.605
|
12.174
|
0.684
|
13.358
|
80.69
|
|||||||
|
PNG182M-222
|
22.2
|
7.33
|
0.605
|
12.118
|
0.683
|
13.346
|
80.55
|
|||||||
|
PNG182M-221
|
22.1
|
7.30
|
0.604
|
12.097
|
0.683
|
13.337
|
80.41
|
|||||||
|
PNG182M-22.0
|
22.0
|
7.26
|
0.603
|
12.048
|
0.682
|
13.308
|
80.00
|
|||||||
|
PNG182M-219
|
21.9
|
7.23
|
0.602
|
12.017
|
0.681
|
13.296
|
79.85
|
|||||||
STC (Standard Testing Conditions)：1000W/m2，AM1.5，25℃
Technical parameters above-mentioned subjects to technical changes and tests.
Technical parameters above-mentioned subjects to technical changes and tests.
Pinergy Solar reserves the right of final interpretation.
Packing & Delivery
Packing Details:
>100PCS Solar Cells In One Paper Box
>16 Boxes In One Carton
>24 CTNS In One Pallet
>24 CTNS In One Pallet
Production Process
TEXTURING
DIFFUSION
ETCHING
PECVD
SCREEN PRINTING
FLASH TEST
Factory
