Quick Details
-
Power:
-
28~520kw
-
Weight:
-
600KG
-
Year:
-
2023
-
Refrigerant:
-
R404a/R134a/R507a/R22
-
Temperature:
-
-50℃~35℃
-
Color:
-
Customers' Requirement
-
Cooling Type:
-
Evaporative Cooled
-
Brand Name:
-
Tianshun
-
Application:
-
Cold Storage Room Freezer Room
-
Certification:
-
ce, ISO9001
-
After Warranty Service:
-
Video technical support, Online support
-
Customized:
-
accepatable
-
Type:
-
Air-cooled stand-alone medium and high temperature
Quick Details
-
Place of Origin:
-
Henan, China
-
Model Number:
-
HFFD/HFFG
-
Voltage:
-
380~400V
-
Power:
-
28~520kw
-
Weight:
-
600KG
-
Year:
-
2023
-
Refrigerant:
-
R404a/R134a/R507a/R22
-
Temperature:
-
-50℃~35℃
-
Color:
-
Customers' Requirement
-
Cooling Type:
-
Evaporative Cooled
-
Brand Name:
-
Tianshun
-
Application:
-
Cold Storage Room Freezer Room
-
Certification:
-
ce, ISO9001
-
After Warranty Service:
-
Video technical support, Online support
-
Customized:
-
accepatable
-
Type:
-
Air-cooled stand-alone medium and high temperature

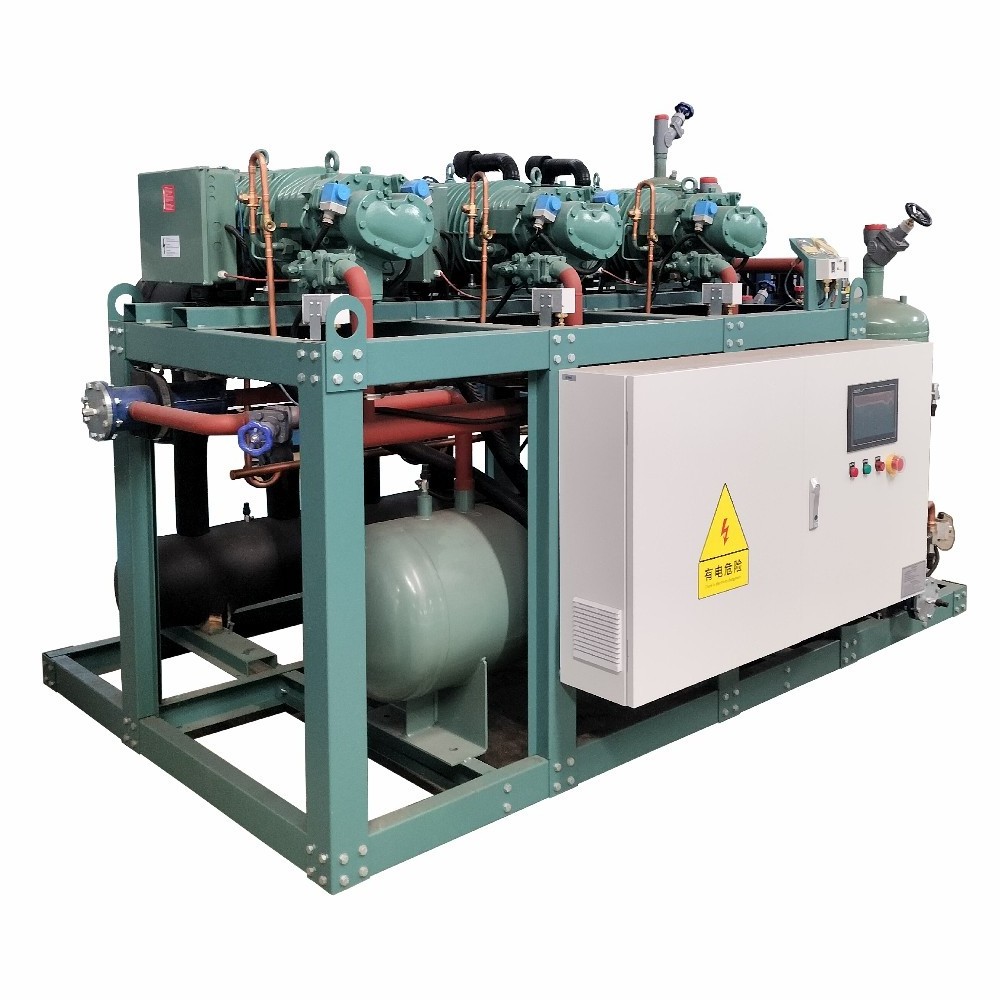

Industrial Freezer Cold Room Cooling Equip Refrigeration Unit Machine Compressor Air-cooled Condensing Unit
Tianshun Refrigeration Equipment Co. Ltd developed screw compressor racks series according to the manufacturing process of refrigeration industrial. Adopt the most advanced world famous compressors, matched with high efficient condenser, microcomputer control elements, professional design, advanced manufacturing processes and strict testing to ensure safe operation. Compact
structure, smooth operation, excellent energy regulation system, low noise, easy operation, safe and reliable and many other advantages. This series units adhering to our concept of science and technology innovation, contains many leading technology to provide users with the perfect solutions. They are widely used for machinery, electronics, plastic, textiles, food, medicine, chemical and renewable energy industries and other fields, make the modern industrial production more safe, efficient and stable.
|
Condensing Unit Model No. |
LFFG-40 | LFFG-50 | LFFG-60 | LFFG-70 | LFFG-80 | LFFG-90 | LFFG-100 | ||
|
Applicable Temperature |
-5℃~8℃ | ||||||||
|
Refrigerant |
R22 | ||||||||
|
Power Supply |
380V/50HZ | ||||||||
|
Compressor |
Type |
Semi-hermetic Screw Type |
|||||||
|
Model |
FVRH-40-120 | FVRH-50-140 | FVRH-60-160 | FVRH-70-200 | FVRH-80-230 | FVRH-90-270 | FVRH-100-300 | ||
|
Energy adjustment |
75%-100% | 50%-75%-100% | |||||||
|
Compresor cooling capacity and power |
0℃Evaporative Temperature |
(W)
Cooling capacity |
104.2 | 136.8 | 181.5 | 199.3 | 248.4 | 271.7 | 294.1 |
|
(KW)
Power |
32.9 | 41.2 | 55.1 | 60.0 | 71.0 | 78.2 | 85.3 | ||
| -5℃Evaporative Temperature |
(W)
Cooling capacity |
85.7 | 112.5 | 149.4 | 164.0 | 204.4 | 223.6 | 242.0 | |
|
(KW)
Power |
31.5 | 39.5 | 52.7 | 57.5 | 68.0 | 74.9 | 81.7 | ||
| -10℃Evaporative Temperature |
(W)
Cooling capacity |
69.8 | 91.8 | 121.8 | 133.7 | 166.8 | 182.5 | 197.5 | |
|
(KW)
Power |
30.2 | 37.8 | 50.5 | 55.0 | 65.2 | 71.8 | 78.3 | ||
|
Joint |
(diameter:mm)
Suction joint |
54 | 66 | 76 | 76 | 76 | 108 | 108 | |
|
(diameter:mm)
Liquid Outlet Joint |
28 | 35 | 35 | 35 | 35 | 42 | 42 | ||
|
(diameter:mm)
Suction joint |
42 | 42 | 54 | 54 | 54 | 66 | 66 | ||
|
(diameter:mm)
Liquid Inlet Joint |
35 | 35 | 35 | 35 | 35 | 54 | 54 | ||
|
Shape Size |
A(mm) | 1700 | 2150 | 2300 | 2300 | 2600 | 2600 | 2600 | |
| B(mm) | 670 | 680 | 770 | 770 | 850 | 850 | 850 | ||
| C(mm) | 1100 | 1100 | 1250 | 1250 | 1300 | 1300 | 1300 | ||
Characteristics:
1Screw parallel refrigeration unit,compact structure and good-looking figure;
2.Scientific designs,steady air flow air,can fully exert heat-transfer capacity of the condensing unit;
3.Rational performance design,high energy efficiency;
4.Axial fan,good-looking figure,low processing noise level;
5.Convenient design for maintain(front board can be easily take down);
6.We keep in touch well with our supplier,to guarantee material quality and production lead time of every order.
7.Various brand of compressor for your choice;
8.Fits different refrigerant:R134A,R404A,R507A,R22.
