Quick Details
-
Brand Name:
-
GreatwayTech
-
Use:
-
FTTH FTTB FTTX
-
Warranty Time:
-
12 months
-
Product name:
-
FTTH Mini Optical Receiver
-
Application:
-
FTTH FTTB FTTX Network
-
RF Bandwidth:
-
50 ~ 1000/1200 MHz
-
1550nm Input:
-
-17dBm~+2dBm
-
Return Loss:
-
45 dB
-
Optical Wavelength:
-
1545~1555 nm
-
RF Flatness:
-
± 0.75dB
-
RF Return Loss:
-
>14 dB
-
Certification:
-
CE RoHS FCC
-
Power supply:
-
12V DC
Quick Details
-
Type:
-
Optical Receiver
-
Model Number:
-
GFH1000-K CATV optical Receiver
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
GreatwayTech
-
Use:
-
FTTH FTTB FTTX
-
Warranty Time:
-
12 months
-
Product name:
-
FTTH Mini Optical Receiver
-
Application:
-
FTTH FTTB FTTX Network
-
RF Bandwidth:
-
50 ~ 1000/1200 MHz
-
1550nm Input:
-
-17dBm~+2dBm
-
Return Loss:
-
45 dB
-
Optical Wavelength:
-
1545~1555 nm
-
RF Flatness:
-
± 0.75dB
-
RF Return Loss:
-
>14 dB
-
Certification:
-
CE RoHS FCC
-
Power supply:
-
12V DC
1310nm/1550nm Fiber Receiver with AGC/MGC and 1310nm/1490nm WDM for ONU Satellite FTTH CATV RF Optical Receiver Fiber MiniNode

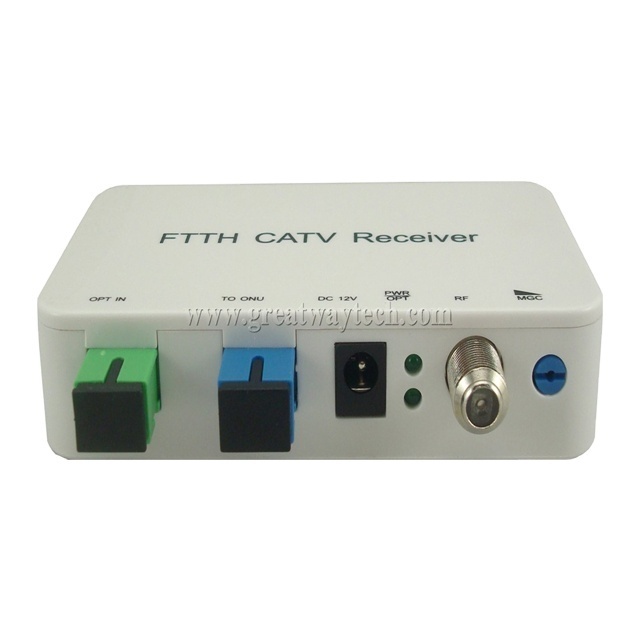

GFH1000-K FTTH Optical Node with WDM
GFH1000-K FTTH Optical Node is an optical receiver with 1310nm/1490nm WDM, receiving 1550nm CATV RF optical signal from Passive
Optical Network (PON) while passing the 1310nm and 1490nm digital signals to ONU device. GFH1000-K can enable Greatway ONU or any
third party ONU with RF function for broadcasting RF channels.
GFH1000-K FTTH Optical Node is an optical receiver with 1310nm/1490nm WDM, receiving 1550nm CATV RF optical signal from Passive
Optical Network (PON) while passing the 1310nm and 1490nm digital signals to ONU device. GFH1000-K can enable Greatway ONU or any
third party ONU with RF function for broadcasting RF channels.
Product Description
Feature:
l Compact plastic flame retarding housing (patent pending)
l High Linearity Photodiode for CATV RF
l 45~1000MHz (downstream) RF Output
l Optional AGC range: -10dBm ~ -2dBm, optional MGC range: 0~20dB
l 1310nm/1490nm Optical Bypass Port to ONU
l DC Power and optical input LED indicator
l Energy saving 1.5W power consumption
l 12V DC power adaptor, powering from RF output port optional
l Compact plastic flame retarding housing (patent pending)
l High Linearity Photodiode for CATV RF
l 45~1000MHz (downstream) RF Output
l Optional AGC range: -10dBm ~ -2dBm, optional MGC range: 0~20dB
l 1310nm/1490nm Optical Bypass Port to ONU
l DC Power and optical input LED indicator
l Energy saving 1.5W power consumption
l 12V DC power adaptor, powering from RF output port optional
Specification
|
Item
|
FTTH Optical Node with WDM
|
|
Input Optical Wavelength
|
1000~1600 nm
|
|
1550nm Optical Power Input
|
-17dBm ~ +2dBm
|
|
Input Fiber Connector
|
SC/APC
|
|
Optical Return Loss
|
45 dB
|
|
RF Bandwidth
|
50 ~ 1000/1200 MHz
|
|
RF Flatness
|
± 0.75dB
|
|
RF Return Loss
|
>14 dB
|
|
RF Connector
|
American F Female
|
|
RF Output Impedance
|
75Ω
|
|
AGC Range (Optional)
|
-10dBm ~ -2dBm Optical Input
|
|
AGC Stability
|
± 2 dB
|
|
MGC Range (Optional)
|
0~20dB RF output level adjustment
|
|
RF Output Level
|
20dBmV @ (-10dBm~-2dBm) (QAM RF, 0dB MGC)
15dBmV@-13dBm (QAM RF, 0dB MGC) |
|
Digital TV QAM MER
|
>37 dB @ -10dBm (QAM RF)
>33 dB @ -13dBm (QAM RF) >28dB @-17dBm@40ch QAM RF |
|
Power Supply (default)
|
12 V 0.5A DC Power Adaptor
|
|
Power Consumption
|
1.5W (Power adaptor not included)
|
|
LED Indicator
|
Power LED: Green when power is on
Optical Input LED: Green when input power > -15dBm |
|
Working Temperature
|
-10 ~ +50℃
|
|
Dimension (L*W*H)
|
106mm×62mm×25mm
|
|
Weight
|
0.5 Kg
|
Ordering Information
GFH1000-KX-Y FTTH CATV RF Optical Receiver with WDM
X(RF Gain): None_no AGC/MGC, A_AGC only, M_MGC only, H_AGC&MGC
Y(Power Supply): None_12V 0.5A DC Power Adaptor
F_12V 1A Power Adaptor, Power RF Inserter and ONU powering capability
DC Power Option “R”
12V DC power adaptor with F connector and RF power inserter for Powering at RF Port
GFH1000-KX-Y FTTH CATV RF Optical Receiver with WDM
X(RF Gain): None_no AGC/MGC, A_AGC only, M_MGC only, H_AGC&MGC
Y(Power Supply): None_12V 0.5A DC Power Adaptor
F_12V 1A Power Adaptor, Power RF Inserter and ONU powering capability
DC Power Option “R”
12V DC power adaptor with F connector and RF power inserter for Powering at RF Port
Packing & Delivery
Price Terms :EXW Shenzhen
Internal Express: EMS ,DHL ,Fedex, TNT,UPS, by sea or your own shipping agent
Lead time: Sample order,3-5work days; Bulk order 15-20work days(after your payment )
Packing: Color packing/Netural packing/ODM/OEM
Notes: Commodity price are valid for a week.
