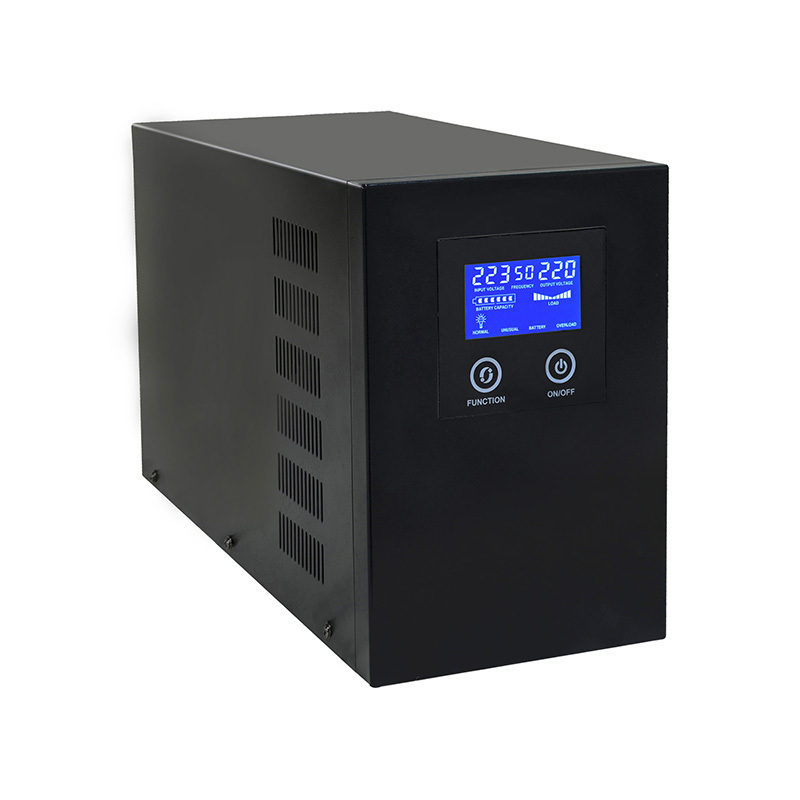

- Product Details
- {{item.text}}
Quick Details
-
Model Number:
-
XD-NB10224
-
Output Frequency:
-
50Hz+/-0.5 or 60Hz+/-0.5
-
Size:
-
460*200*270mm(inner carton)
-
Weight:
-
28.5kg
-
off or on grid inverter:
-
off grid inverter
-
output waveform of inverter:
-
pure sine wave
-
Display of inverter:
-
LCD or LED
-
Transformation:
-
interaction
-
Input AC voltage:
-
75V~125V or 145V~275V
-
Production capability:
-
5000 sets per month
-
Transfer time:
-
<4 ms
-
Application:
-
Home Appliance
-
Color:
-
Black
-
solar power inverter type:
-
DC to AC inverter
-
Certificate:
-
CE RoHS
Quick Details
-
Output Current:
-
15A(adjustable)
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Xindun
-
Model Number:
-
XD-NB10224
-
Output Frequency:
-
50Hz+/-0.5 or 60Hz+/-0.5
-
Size:
-
460*200*270mm(inner carton)
-
Weight:
-
28.5kg
-
off or on grid inverter:
-
off grid inverter
-
output waveform of inverter:
-
pure sine wave
-
Display of inverter:
-
LCD or LED
-
Transformation:
-
interaction
-
Input AC voltage:
-
75V~125V or 145V~275V
-
Production capability:
-
5000 sets per month
-
Transfer time:
-
<4 ms
-
Application:
-
Home Appliance
-
Color:
-
Black
-
solar power inverter type:
-
DC to AC inverter
-
Certificate:
-
CE RoHS
|
Exclusive Feature
|
- Low frequency, pure sine wave output.
- Wide AC voltage input range, AVR output.
- Built-in EI transformer/toroidal transformer optional.
- LCD real-time display, concise and straight forward.
- AC prior/EC mode/Battery prior selectable.
- 50Hz/60Hz automatic recognition.
- RS232 communication port optional.
|
Product Details
|
|
Technical parameter
|
| Specification | ||||
| Model NB | 70112 | 10212 | 10224 | |
| Rated Power | 700W | 1000W | 1000W | |
| Battery Voltage | 12VDC | 12VDC | 24VDC | |
| N.W.(kg) | 11 | 13 | 13 | |
| G.W.(kg)/inner carton | 12 | 14 | 14 | |
| G.W.(kg)/outer carton | 24.5 | 28.5 | 28.5 | |
| Size(L*W*Hmm) | 410*143*210 | |||
| Packing Size(L*W*Hmm) | 460*200*270(inner carton)/pcs, 475*425*285(outer carton)/2pcs | |||
| Parameter | ||||
| Input | Battery Input Voltage Range | 10.5-15VDC for 12V system; 21V~30V for 24V system | ||
| AC Input Voltage Range | 73VAC~138VAC/145VAC~275VAC | |||
| AC Input Frequency Range | 45Hz~65Hz(50Hz/60Hz automatic recognition) | |||
| Output | Efficiency(Battery Mode) | ≥85% | ||
| Output Voltage(Battery Mode) | 110VAC±2%/220VAC±2% | |||
| Output Frequency(Battery Mode) | 50Hz±0.5/60Hz±0.5 | |||
| Output Wave(Battery Mode) | Pure Sine Wave | |||
| Efficiency(AC Mode) | >99% | |||
| Output Voltage(AC Mode) | 110VAC±10%/220VAC±10% | |||
| Output Frequency(AC Mode) | Tracking Automatically | |||
| Output waveform distortion(Battery Mode) | ≤3%(Linear load) | |||
| AC charger | AC charging current | Max 15A | ||
| AC charging voltage | Charge Voltage: 14V for 12V system, 28V for 24V system; Float Voltage: 13.8V for 12V system, 27.6V for 24V system | |||
| AC charging method | Three-stage(constant current, constant voltage, floating charge) | |||
| Battery Type | Customize battery | Charge and discharge parameters of different types of batteries (such as lithium batteries, etc.) can be customized according to user requirements | ||
| Working Mode(Selectable) | AC prior(01) | Under AC prior mode, device will always use utility source and through regulator to supply loads as well as charge battery(charging current selectable); when utility power is with high/low/serious distortion or other abnormal, device will auto converter battery source to supply loads. | ||
| EC mode(02) | Under Energy saving mode, device dedects load, when the load is <10% rated power, device will auto on/off AC output; when the load is > 10% rated power, device will start AC output. | |||
| Battery prior(03) | Under Battery prior mode, device will always use battery source to coverter high quality electricity for load; when battery source is failed, device will auto use utility source and through regulator to supply loads. | |||
| Protection | Battery low voltage alarm | 11V for 12V system; 22V for 24V system | ||
| Battery low voltage protection | 10.5V for 12V system; 21V for 24V system | |||
| Battery high voltage alarm | 15V for 12V system; 30V for 24V system | |||
| Battery high voltage protection | 17V for 12V system; 34V for 24V system | |||
| Battery high voltage recover | 14.5V for 12V system; 29V for 24V system | |||
| Overload protection | Automatic protection(battery mode), circuit breaker or fuse (AC mode) | |||
| Inverter output short circuit protection | Automatic protection (battery mode), circuit breaker or fuse (AC mode) | |||
| Temperature protection | >90°C(Shut down output) | |||
| Alarm | A | Normal working condition, buzzer has no alarm sound | ||
| B | Buzzer sounds 4 times per second when battery failure, voltage abnormality, overload | |||
| C | When the machine is turned on for the first time, the buzzer will prompt 5 when the machine is normal | |||
| Transfer Time | ≤4ms | |||
| Display | LCD | |||
| Thermal method | Cooling fan in intelligent control | |||
| Communication | RS232(Optional) | |||
| Environment | Operating temperature | -10℃~40℃ | ||
| Storage temperature | -15℃~60℃ | |||
| Noise | ≤55dB | |||
| Elevation | 2000m(More than derating) | |||
| Humidity | 0%~95% ,No condensation | |||
| Note: All specifications are subject to charge without prior notice | ||||
|
How to Use the Solar Inverter?
|
1. Battery number and capacity should be configured according to the rated voltage of the solar power system or inverter;
2. We offer 3 optional working modes:
01 Grid priority mode:
When the grid and battery are connected to the inverter, grid will supply power to the loads directly after voltage being stabilized and charge batteries via inverter. When the grid is cut off, the battery will automatically continue to supply power via inverter.
02 Energy saving mode:
If the power of the connected AC loads is lower than 5% of the inverter’s rated power, there will be no output from the inverter. Only the chip of inverter is working. The power consumption of the inverter is only 1~6W. The LCD shows the output voltage 0. If the power of the connected loads is over 5%, within 5S the inverter will automatically convert DC to AC to supply power for the loads . The LCD shows the output voltage.
03 Battery priority mode:
When the grid and battery are connected to the inverter, battery will supply power to the loads first. When battery capacity is not enough, the grid will continue to supply power automatically.
|
