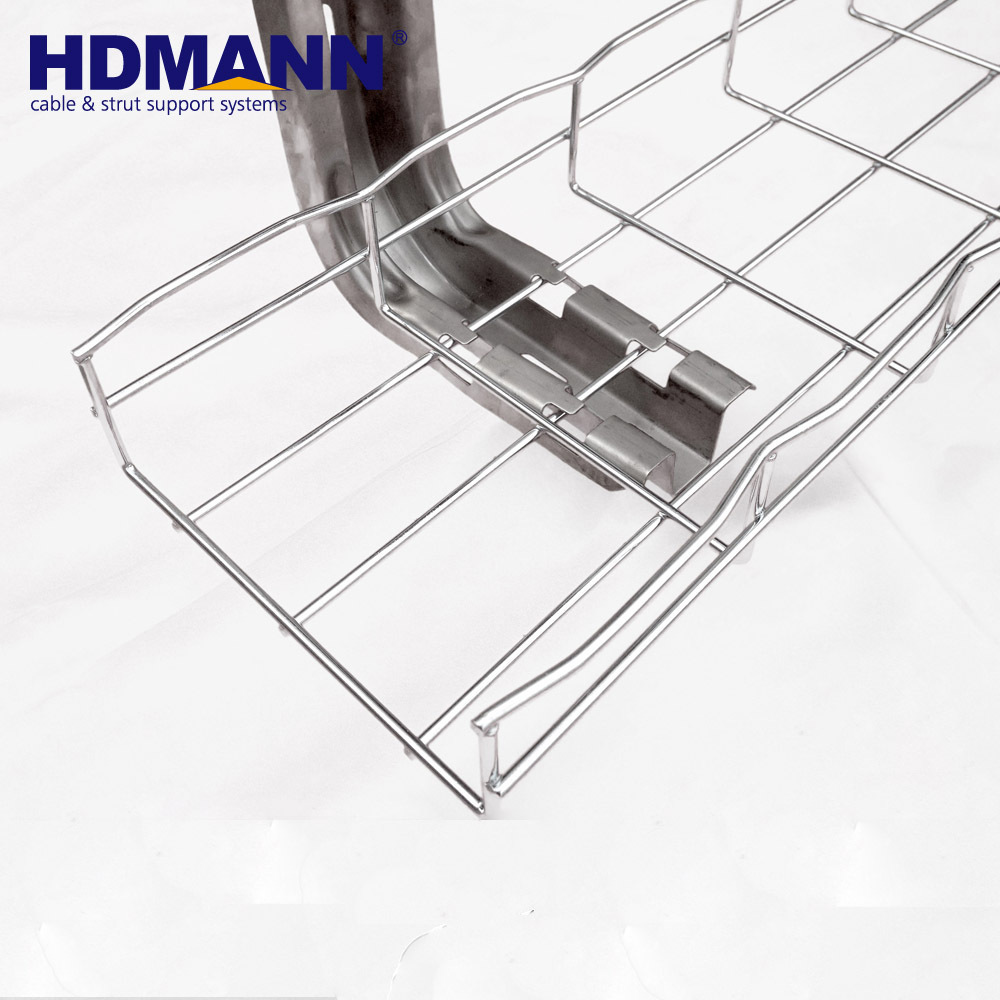

Stainless steel 304 wire mesh cable tray basket type cable tray

Stainless steel 304 wire mesh cable tray basket type cable tray

FOB Reference Price: Get Latest Price

≥1 Meters

US $0.5

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Length:: Maximum 3000mm

Place of Origin:: Jiangsu, China

Brand Name:: HDMANN

Model Number:: WB Series

Side Rail Height:: 25~150mm

Max. Working Load:: As per the speficiation

Product Name:: wire mesh cable tray basket type cable tray

Finishes:: HDG, Pre-gal, Electro-gal wire mesh cable tray

Materials:: Stainless steel, GI, Pre-gal steel wire mesh cable tray

Free sample:: Available wire mesh cable tray

Certification:: NEMA, CE, UL, SGS, IOS

Application envirment:: Indoor, outdoor, high corrosion

Wire diameter:: 4mm,5mm,6mm wire mesh cable tray

MOQ:: Standard sizes available for all quantity

Mesh hole dimension:: 50*100 wire mesh cable tray

Delivery time:: 10~20 days for average order quantity

Quick Details

Type:: Wire Mesh

Material:: Steel

Width:: 50mm~1000mm

Length:: Maximum 3000mm

Place of Origin:: Jiangsu, China

Brand Name:: HDMANN

Model Number:: WB Series

Side Rail Height:: 25~150mm

Max. Working Load:: As per the speficiation

Product Name:: wire mesh cable tray basket type cable tray

Finishes:: HDG, Pre-gal, Electro-gal wire mesh cable tray

Materials:: Stainless steel, GI, Pre-gal steel wire mesh cable tray

Free sample:: Available wire mesh cable tray

Certification:: NEMA, CE, UL, SGS, IOS

Application envirment:: Indoor, outdoor, high corrosion

Wire diameter:: 4mm,5mm,6mm wire mesh cable tray

MOQ:: Standard sizes available for all quantity

Mesh hole dimension:: 50*100 wire mesh cable tray

Delivery time:: 10~20 days for average order quantity

wire mesh cable tray basket type cable tray

Product Description

HDMANN WIRE MESH CABLE TRAY SYSTEM

HDMANN wire mesh cable tray is constructed of precision engineered, high quality, welded steel wire and is the result of decades of research gained from the installation of 94,000 miles of tray across the globe.

Our wire mesh cable tray is subjected to testing at every stage of the manufacturing process. In actual use, it has performed in a wide variety of office buildings and is widely used for from heavy power cable pathways on oil drilling platforms to data installation above the ceiling. wire mesh cable tray

Our wire mesh cable tray is alailable in depths of 25-150mm, and in a variaty of widths, ranging from 30-1000mm. The standard finish is electroplared zinc after fabrication. A variaty of other finishes available are including hot dipped galvanized after fabrication, pre-galvanized as well as multitude of colors in powder coating. The wire mesh cable tray is also available in type 304 and 306 stainless steels for extremely corrosive enviroments. wire mesh cable tray

As for the wire mesh cable tray fittings, the fittings can be fabricated in field. However, to expedite installation, HDMANN offers factory assembled horizontal fittings. The pre-fabricated fittings are time-saving and cost-effective compared with the field-fabricated horizontal fittings, which enjoys a great reputation. A complement of accessories and brackets used for wire mesh installation are also provided. See our catalogue unpon request. wire mesh cable tray

WIRE MESH CABLE STANDARD SPECIFICATION

Table of standard wire mesh cable specifaction
H*W	Profile wire Nos	Wire dis(mm)	Weight(kg/meter)
35*100	4	4	0.58
35*150	5	4	0.73
35*200	6	4	0.89
35*300	8	4	1.2
50*50	5	4	0.66
50*100	6	4	0.82
50*150	7	4	0.97
50*200	8	4	1.12
50*300	10	5	2.24
50*400	12	5	2.72
50*450	13	5	2.96
50*500	14	5	3.2
50*600	16	5	3.68
50*750	19	6	6.35
50*800	20	6	6.69
100*100	8	4	1.13
100*150	9	4	1.28
100*200	10	4	1.43
100*300	12	5	2.72
100*400	14	5	3.2
100*450	15	5	3.44
100*500	16	5	3.68
100*600	18	5	4.16
100*750	21	6	7.04
150*200	12	5	2.72
150*300	14	5	3.2
150*400	16	5	3.68
150*450	17	5	3.92
150*500	18	5	4.16
150*600	20	5	4.65
