Quick Details
-
Type:
-

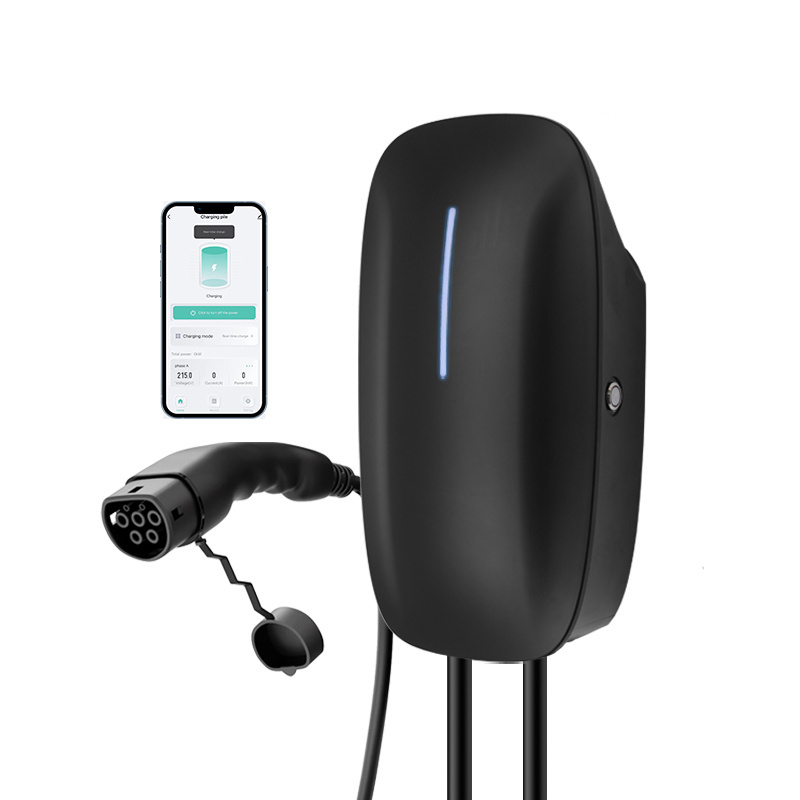

EV charging station
-
Product Name:
-
Wallbox ev charger
-
Rated Voltage:
-
230V
-
Rated Current:
-
16/32A
-
Cable Length:
-
5 Meters(16.4ft)/ Customized
-
Charging Port:
-
Type2
-
Degree Of Protection:
-
IP55
-
Charging Standards:
-
IEC62196
-
Certificate:
-
CE
-
Color:
-
Customized Color
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Model Number:
-
TTST-G7KW-RD11
-
Brand Name:
-
TTCHARGER
-
Type:
-
EV charging station
-
Product Name:
-
Wallbox ev charger
-
Rated Voltage:
-
230V
-
Rated Current:
-
16/32A
-
Cable Length:
-
5 Meters(16.4ft)/ Customized
-
Charging Port:
-
Type2
-
Degree Of Protection:
-
IP55
-
Charging Standards:
-
IEC62196
-
Certificate:
-
CE
-
Color:
-
Customized Color
Products Description
|
Input & Output
⚡
|
|
|
|
|
||||
|
Input voltage / Output voltage
|
220V / 380V
|
Output current
|
32A / 16A
|
|
||||
|
Max power
|
7kw / 11kw
|
Input frequency
|
50Hz
|
|
||||
|
Standby power consumption
|
<3W
|
Charging interface type
|
Type 1 / Type 2
|
|
||||
|
Protection
✨
|
|
|
|
|
||||
|
Over-voltage protection
|
✅
|
grounding protection
|
✅
|
|
||||
|
under-voltage protection
|
✅
|
over-temperature protection
|
✅
|
|
||||
|
overload protection
|
✅
|
low-temperature protection
|
✅
|
|
||||
|
earth leakage protection
|
✅
|
lightning protection
|
✅
|
|
||||
|
Working environment
\uD83D\uDD0C
|
|
|
|
|
||||
|
Applicable scene
|
Indoor / Outdoor
|
Operating temperature
|
-30℃ ~ +55℃
|
|
||||
|
Height above sea level
|
<2000m
|
Operating humidity
|
5% ~ 95%, non-condensation
|
|
||||
|
Protection level
|
IP65
|
Cooling method
|
Natural cooling
|
|
||||
|
MTBF
|
100,000 hours
|
Special protection
|
UV protection design
|
|
||||
|
Appearance structure
\uD83C\uDF88
|
|
|
|
|
||||
|
Shell material
|
Black tempered glass panel, PC body
|
|
|
|
||||
|
Equipment dimension
|
310*161*79.8mm ( L*W*H )
|
|
|
|
||||
|
Installation method
|
Wall-mounted\portable
|
|
|
|
||||
|
Wiring method
|
Getting in and going out from the bottom
|
|
|
|
||||
|
Equipment weight
|
<6kg
|
Length
|
5m/10m or customized
|
|
||||
Product Detail
*Leakage protection (restart recovery)
*
Over voltage and under-voltage protection
(self-check recovery)
*
Lightning protection
*
Black/other colors need to be customized
*
Over current protection
*
Overheating protection
Recommend
CAUTION
\uD83D\uDCA5 Please do not put flammable, explosive or combustible materials, chemicals, combustible vapor and other dangerous goods near the charging pile;
\uD83D\uDCA5 Keep the charging gun head clean and dry. If it is dirty, please wipe it with a clean dry cloth. It is strictly forbidden to touch the charging gun core with hands when it is live
\uD83D\uDCA5 It is strictly forbidden to use the charging pile when the charging gun or the charging cable is defective, cracked, worn, broken, or the charging cable is exposed. If any defect is found, please contact the staff in time;
\uD83D\uDCA5 Please do not try to dismantle, repair or modify the charging pile. If it is needed to repair or modify it, please contact the staff. Improper operation may cause damage, water leakage, and electric leakage to the equipment;
\uD83D\uDCA5 In case of any abnormal situation during the use, press the emergency stop button immediately to turn off all input and output power supplies;
\uD83D\uDCA5 In case of rain and thunder, please charge carefully;
\uD83D\uDCA5 Children shall not get close to and use the charging pile during charging to avoid injury.
\uD83D\uDCA5 In the process of charging, the vehicle is forbidden to drive and can be charged only when it is static. The hybrid electric vehicle shall flame out before charging.
\uD83D\uDCA5 Keep the charging gun head clean and dry. If it is dirty, please wipe it with a clean dry cloth. It is strictly forbidden to touch the charging gun core with hands when it is live
\uD83D\uDCA5 It is strictly forbidden to use the charging pile when the charging gun or the charging cable is defective, cracked, worn, broken, or the charging cable is exposed. If any defect is found, please contact the staff in time;
\uD83D\uDCA5 Please do not try to dismantle, repair or modify the charging pile. If it is needed to repair or modify it, please contact the staff. Improper operation may cause damage, water leakage, and electric leakage to the equipment;
\uD83D\uDCA5 In case of any abnormal situation during the use, press the emergency stop button immediately to turn off all input and output power supplies;
\uD83D\uDCA5 In case of rain and thunder, please charge carefully;
\uD83D\uDCA5 Children shall not get close to and use the charging pile during charging to avoid injury.
\uD83D\uDCA5 In the process of charging, the vehicle is forbidden to drive and can be charged only when it is static. The hybrid electric vehicle shall flame out before charging.
FAQ
Q
:
What is your terms of payment?
A : PayPal, T/T, credit card, Alibaba assurance, West Union... Please contact us for more details.
Q : How do you delivery your goods to me?How long will it take?
A : We can ship goods by DHL, TNT, UPS, Air freight, Ocean freight, Truck freight. We help our customer to choose the best shipment way according to the actual situation.
Q : What is your sample policy?
A : We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q : What power/kw to buy?
A : First, you need to check the obc specifications of the electric car to match the charging station. Then check the power supply of the installation facility to see if you can install it.
Q : How do you guarantee the quality？
A : we have 100% test before delivery, the warranty time is 1 year
A : PayPal, T/T, credit card, Alibaba assurance, West Union... Please contact us for more details.
Q : How do you delivery your goods to me?How long will it take?
A : We can ship goods by DHL, TNT, UPS, Air freight, Ocean freight, Truck freight. We help our customer to choose the best shipment way according to the actual situation.
Q : What is your sample policy?
A : We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q : What power/kw to buy?
A : First, you need to check the obc specifications of the electric car to match the charging station. Then check the power supply of the installation facility to see if you can install it.
Q : How do you guarantee the quality？
A : we have 100% test before delivery, the warranty time is 1 year
