Quick Details
-
After-sales Service Provided:
-
Video technical support, Online support, Free spare parts
-
Brand Name:
-
ISUZU
-
Place of Origin:
-
China
-
Dimensions (L x W x H) (mm):
-
5995*2260*2980mm
-
Box Dimensions (L x W x H) (mm):
-
4080*1800*1800 mm
-
Temperature Range:
-
-18
-
Engine power:
-
72KW(98hp)
-
Displacement (lit):
-
3
-
Transmission:
-
5 Front 1 Rear
-
Tire:
-
7.00R16
-
Wheelbase:
-
3360mm
-
Loading capacity:
-
1-5Ton
-
Refrigeration unit:
-
International Top Brand
-
Material:
-
PU+CFRT+FRP
-
Color:
-
Customer's Requirement
-
Warranty:
-
1 Year
Quick Details
-
Condition:
-
New
-
Emission Standard:
-
EURO 5
-
Gross Vehicle Weight:
-
≤5T
-
After-sales Service Provided:
-
Video technical support, Online support, Free spare parts
-
Brand Name:
-
ISUZU
-
Place of Origin:
-
China
-
Dimensions (L x W x H) (mm):
-
5995*2260*2980mm
-
Box Dimensions (L x W x H) (mm):
-
4080*1800*1800 mm
-
Temperature Range:
-
-18
-
Engine power:
-
72KW(98hp)
-
Displacement (lit):
-
3
-
Transmission:
-
5 Front 1 Rear
-
Tire:
-
7.00R16
-
Wheelbase:
-
3360mm
-
Loading capacity:
-
1-5Ton
-
Refrigeration unit:
-
International Top Brand
-
Material:
-
PU+CFRT+FRP
-
Color:
-
Customer's Requirement
-
Warranty:
-
1 Year
Product Description

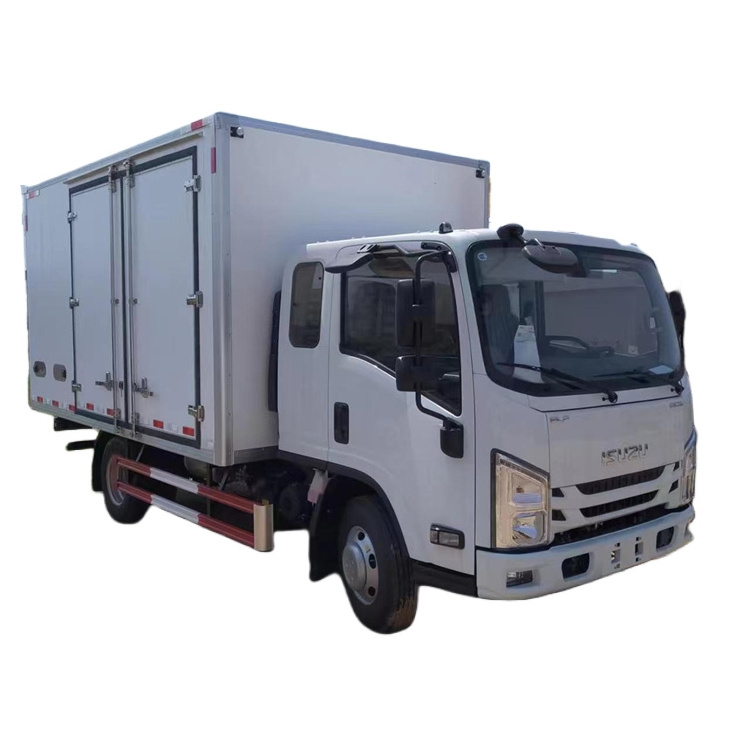

Reefer Van is a van truck designed to carry perishable freight at specific temperatures,such as fruit,vegetable,milk,medicine,meat and so on.The material used is polyurethane and fiber glass for the van.It is useful and economical transportation truck in nowadays. Our company has different size of refrigerated van equipped in different chassis. Please consult us for more information.
This truck is made up of vehicle chassis, insulation box, refrigeration unit and temperature recorder, etc.
For the special requirements of freezer vehicle,such as the meat transportation, the meat hook, aluminum alloy guide rail and ventilation slots, ladder, LED lamp, etc. parts can be chosen and installed. Different refrigerated units are available like Carrier, Thermos King, Dongin, Kingtec, etc. The standby battery, side door, side windows, etc are optional.
Specification
|
item
|
value
|
|
Brand Name
|
ISUZU
|
|
Place of Origin
|
China
|
|
Transmission Type
|
Manual
|
|
Condition
|
New
|
|
Horsepower
|
150 - 250hp
|
|
Emission Standard
|
EURO 5
|
|
Fuel Type
|
Diesel
|
|
Dimensions (L x W x H) (mm)
|
5995*2260*2980mm
|
|
Box Dimensions (L x W x H) (mm)
|
4080*1800*1800 mm
|
|
Temperature Range
|
-18
|
|
Gross Vehicle Weight
|
≤5T
|
|
After-sales Service Provided
|
Video technical support, Online support, Free spare parts
|
|
Maximum Torque(Nm)
|
≤500Nm
|
|
Capacity (Load)
|
1-10T
|
|
Engine Capacity
|
< 4L
|
|
Engine power
|
72KW(98hp)
|
|
Displacement (lit)
|
3
|
|
Transmission
|
5 Front 1 Rear
|
|
Tire
|
7.00R16
|
|
Wheelbase
|
3360mm
|
|
Loading capacity
|
1-5Ton
|
|
Refrigeration unit
|
International Top Brand
|
|
Material
|
PU+CFRT+FRP
|
|
Color
|
Customer's Requirement
|
|
Warranty
|
1 Year
|
Construction
Chassis,heat insulation box body,refrigeration unit,temperature recorders in the carriage,for special purpose,optional parts including meat hook,aluminum alloy rail,ventilation channel and others.
Refrigeration unit classification
Non independent refrigeration unit,independent unit,the domestic units and imported units.
Usually using external refrigerator,for a few mini refrigerated truck,using internal refrigerator.
Choice for insulated body
Good thermal insulation property,light weight,not easy to be damaged.
Truck Box Feature：
High Insulation;
Long operating life;
Higher-intensity;
Corrosion resistance;
Easy to clean.
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
