Quick Details
-
Place of Origin:
-
Shandong, China
-
Dimension(Long * Breadth * High):
-
6890x2430x3070mm
-
Machine Weight:
-
10200 kg
-
Bucket capacity:
-
1.5-2.5cbm, 2.7-4.5 cbm
-
Operating weight:
-
16500kg
-
Dumping Reach:
-
1200mm
-
Dumping Clearance:
-
3100mm
-
Engine type:
-
water cooler
-
Rated Power:
-
175kw
-
Product name:
-
Mini Wheel Loader
-
Engine:
-
Diesel Engine
-
Name:
-
Chinese Brand Wheel Loader
-
Color:
-
Customer's Requiement
Quick Details
-
Engine Brand:
-
china brand
-
Power:
-
92KW
-
Brand Name:
-
china brand
-
Place of Origin:
-
Shandong, China
-
Dimension(Long * Breadth * High):
-
6890x2430x3070mm
-
Machine Weight:
-
10200 kg
-
Bucket capacity:
-
1.5-2.5cbm, 2.7-4.5 cbm
-
Operating weight:
-
16500kg
-
Dumping Reach:
-
1200mm
-
Dumping Clearance:
-
3100mm
-
Engine type:
-
water cooler
-
Rated Power:
-
175kw
-
Product name:
-
Mini Wheel Loader
-
Engine:
-
Diesel Engine
-
Name:
-
Chinese Brand Wheel Loader
-
Color:
-
Customer's Requiement

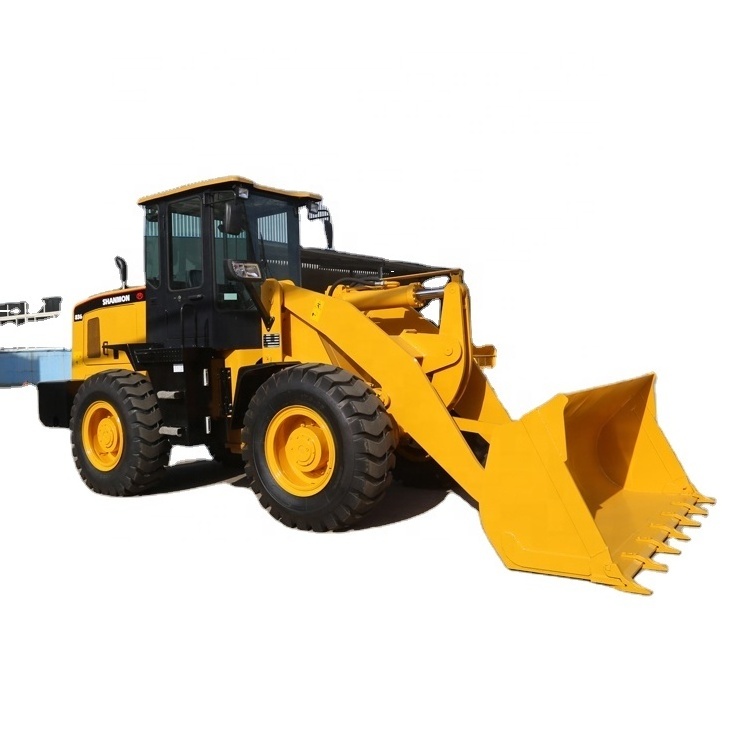

China heavy construction machinery SAM 836 3ton 5ton wheel loader
Our Main Products Heavy Trucks and Construction Machinery. include Howo tractor trucks, dump trucks, trailer truck,Fire trucks, water tank trucks, concrete mixer trucks, special trucks,truck parts and Motor grader,wheel loader, roller loader. we can supply these for our clients with good quality and competitive price, because we get directly support from factory.
1 Factory price, more competitive than agent price.
2 Quality: With SINOTRUK group inspection system, a series inspections are well done before the exportation.
3 Warranty: One year or 100 000k which comes to the first for the engine, gear box, and axles.
4 After-sales: Professional after-sales team sovle your difficult or special questions within 3 working days or 5 working days, and all spare parts are available for your urgent use.
5 Transportation: Professional logistics team work with international shipping company for your truck shipment successfuly.
main performance parameters of SAM836 loader
| Performance | 1 | rated loading | 3000kg |
| 2 | overall weight | 9600kg | |
| 3 | rated bucket capacity | 1.8m3 | |
| 4 | maximum tractive force | 97KN | |
| 5 | maximum breakout force | 127KN | |
| 6 | maximum grade ability | 30ºC | |
| 7 | maximum dump height | 3100mm | |
| 8 | maximum dump reach | 1006mm | |
| 9 | overall dimension (L×W×H) | 6890×2430×3070mm | |
| 10 | minimum turning radius | 5097mm | |
| Engine | 11 | model | Deutz WP6G125E22 |
| 12 | type | lnline water cooled, four stroke | |
| 13 | No. of cylinder-bore/stroke | 6-108×125mm | |
| 14 | rated power | 92kw | |
| 15 | maximum torque | 500N.m | |
| 16 | min fuel-consume ratio | ≤210g/kw.h | |
|
Transmission system |
17 | torque converter | YJ315-x |
| 18 | gearbox mode |
Power shift normally engaged straight gear |
|
| 19 | gear shift | 4forward shift 2 reverse shift | |
| 20 | maximum speed | 40km/h | |
| Drive axles | 21 | main reducing mode |
Bevel gear grade lreduction |
| 22 | decelerating mode | Bevel gear grade lreduction | |
| 23 | wheel base (mm) | 2660mm | |
| 24 | wheel tread | 1800mm | |
| 25 | ground clearance | 400mm | |
|
Hydraulic system |
26 | system working pressure | 16.5MPa |
| 27 | boom lifting time | 4.83s | |
| 28 | total time | 9.15s±0.5s | |
| 29 | fuel tank capacity | 156L | |
| 30 |
function of leveling automatically |
yes | |
|
Brake system |
31 | service brake |
air assist disc brake on 4 wheels |
| 32 | parking brake | Manual disk brake | |
|
Tyre |
33 | type specification | 17.5-25 |
| 34 | front tyre pressure | 0.4Mpa | |
| 35 | rear tyre pressure | 0.35Mpa |
