Quick Details
-
Model Number:
-
12V 200Ah
-
Place of Origin:
-
Guangdong, China
-
Terminal:
-
T2
-
Internal resistance:
-
≤150mΩ
-
Cycle times:
-
≥4000 times@ 0.2C 100% DOD
-
Monthly self-discharge rate:
-
<3%
-
Charging voltage:
-
14.6 ±0.2V
-
Charging mode:
-
0.2C to 14.6V
-
Charging current:
-
30A
-
Maximum pulse current:
-
300A (<3s)
-
Continuous discharge current:
-
150A
-
Discharge cut-off voltage:
-
10V
-
Warranty:
-
5years
Quick Details
-
Anode Material:
-
LFP
-
Application:
-
Home Appliances, BOATS, Golf Carts, electric vehicles, Electric Power Systems, Solar Energy Storage Systems, Uninterruptible Power Supplies
-
Brand Name:
-
LANPWR
-
Model Number:
-
12V 200Ah
-
Place of Origin:
-
Guangdong, China
-
Terminal:
-
T2
-
Internal resistance:
-
≤150mΩ
-
Cycle times:
-
≥4000 times@ 0.2C 100% DOD
-
Monthly self-discharge rate:
-
<3%
-
Charging voltage:
-
14.6 ±0.2V
-
Charging mode:
-
0.2C to 14.6V
-
Charging current:
-
30A
-
Maximum pulse current:
-
300A (<3s)
-
Continuous discharge current:
-
150A
-
Discharge cut-off voltage:
-
10V
-
Warranty:
-
5years

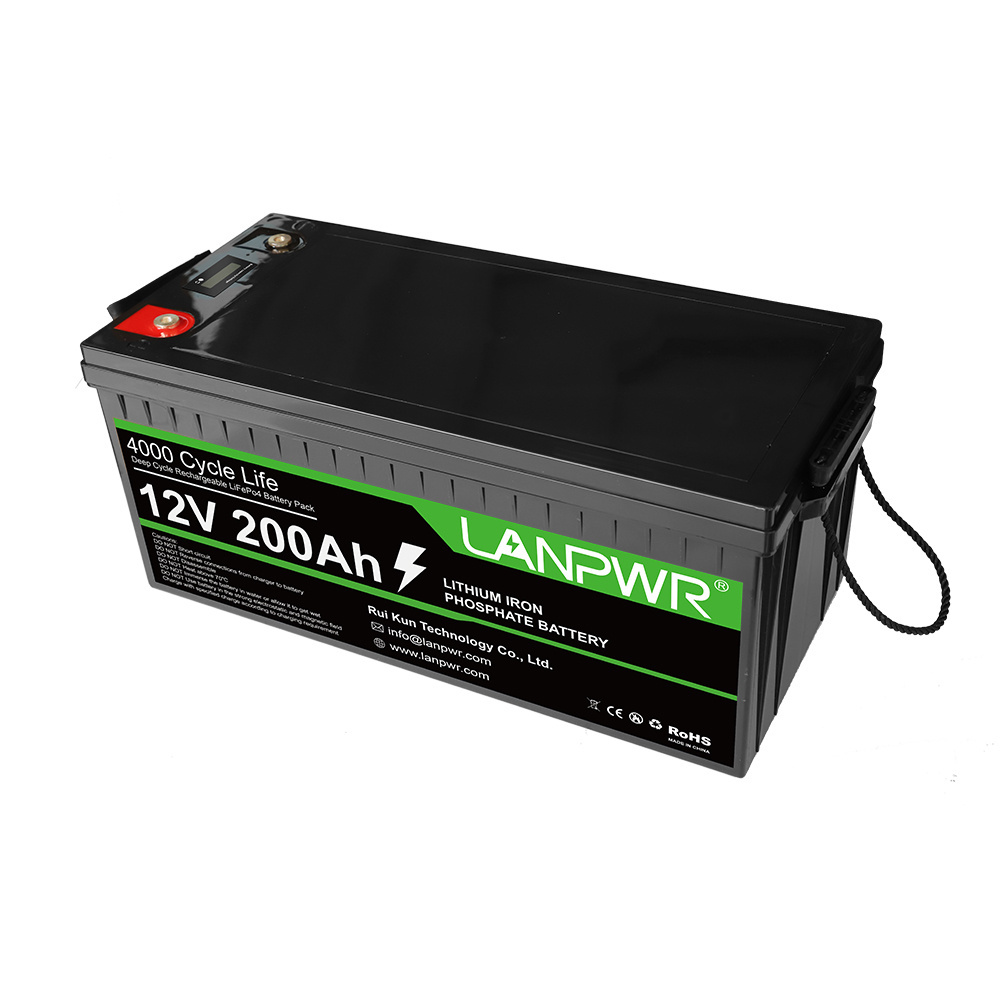

Products Description
Higher Power:
Delivers twice power of lead acid battery,evern high discharge rate, while maintaining high energy capacity
Wider
Temperature Range:
-20℃-75℃
Superior Safety: Lithium Iron Phosphate chemistry eliminates the risk of explosion or combustion due to high impact, overcharging or short circuit situation.
Increased Flexibility: Modular design enables deployment of up to four batteries in series and up to four batteries in parallel.
Superior Safety: Lithium Iron Phosphate chemistry eliminates the risk of explosion or combustion due to high impact, overcharging or short circuit situation.
Increased Flexibility: Modular design enables deployment of up to four batteries in series and up to four batteries in parallel.
|
Electrical
Characteritics |
Nominal Voltage
|
|
12.8V
|
|
|
|
Nominal Capacity
|
|
200Ah(C5,25℃）
|
|
|
|
Energy
|
|
2560Wh
|
|
|
|
Internal Resistance
|
|
≤60mΩ
|
|
|
|
Cycle Life
|
|
≥4000 cycles@0.2C 100% DOD
|
|
|
|
Months Self Discharge
|
|
＜3%
|
|
|
|
Efficiency of Charge
|
|
100% @ 0.2C
|
|
|
|
Efficiency of Discharge
|
|
96-99%@0.5C
|
|
|
Standard Charge
|
Charge cut-off voltage
|
|
14.6 ±0.2V
|
|
|
|
Charge Mode
|
|
0.2C to 14.6V
|
|
|
|
Charge current
|
|
40A
|
|
|
Standard Discharge
|
Continuours current
|
|
100A
|
|
|
|
Max Pulse current
|
|
300A(＜3s)
|
|
|
|
Discharge cut-off voltage
|
|
10V
|
|
|
Environmental
|
Storage Temperature
|
|
-10℃ to 40℃
|
|
|
|
Charge Temperature
|
|
-5℃ to 45℃
|
|
|
|
Discharge Temperature
|
|
-20℃ to 60℃
|
|
|
Mechanical
|
Cell & Method
|
|
3.2V 25AH-4S8P
|
|
|
|
Plastic Case
|
|
ABS
|
|
|
|
Dimensions
|
|
522*240*218mm
|
|
|
|
Weight
|
|
26.7kg
|
|
|
|
Terminal
|
|
M8
|
|
|
|
Protocol
|
|
NO
|
|
