Quick Details
-
Thickness of strip:
-
0.4~1.0mm
-
Width of strip:
-
137mm
-
Feeding speed:
-
1~35m/min, adjustable
-
Raw material:
-
Galvanized steel
-
Main motor power:
-
5.5kW
-
Cutting motor power:
-
4kW
-
Control system:
-
Plc+inverter
Quick Details
-
Place of Origin:
-
China
-
Diameter of tube:
-
80~1500mm
-
Max. tube length:
-
8000mm
-
Thickness of strip:
-
0.4~1.0mm
-
Width of strip:
-
137mm
-
Feeding speed:
-
1~35m/min, adjustable
-
Raw material:
-
Galvanized steel
-
Main motor power:
-
5.5kW
-
Cutting motor power:
-
4kW
-
Control system:
-
Plc+inverter
HVAC spiral duct machine
Hvac spiral duct forming machine is used for producing ventilation equipment.
There has two models of hvac spiral round duct forming machine, differences as below shows.
|
Model |
ZHTF-I |
ZHTF-II |
|
Forming mould |
Spring steel mould Feature: lower cost Adjustable a little Quick change |
Duct type mould Feature: Fixed diameter Accurate size Hard stiffness |
|
Cutting method |
Saw cutting Feature: Lower cost With noise and dust With burr on section |
Slitter cutting Feature: Silent work Clean work Smooth section |
|
Diameter range (in practice) |
80-1500mm |
100-1600mm |
|
Thickness range |
0.4-1.0mm |
0.4-1.2mm |

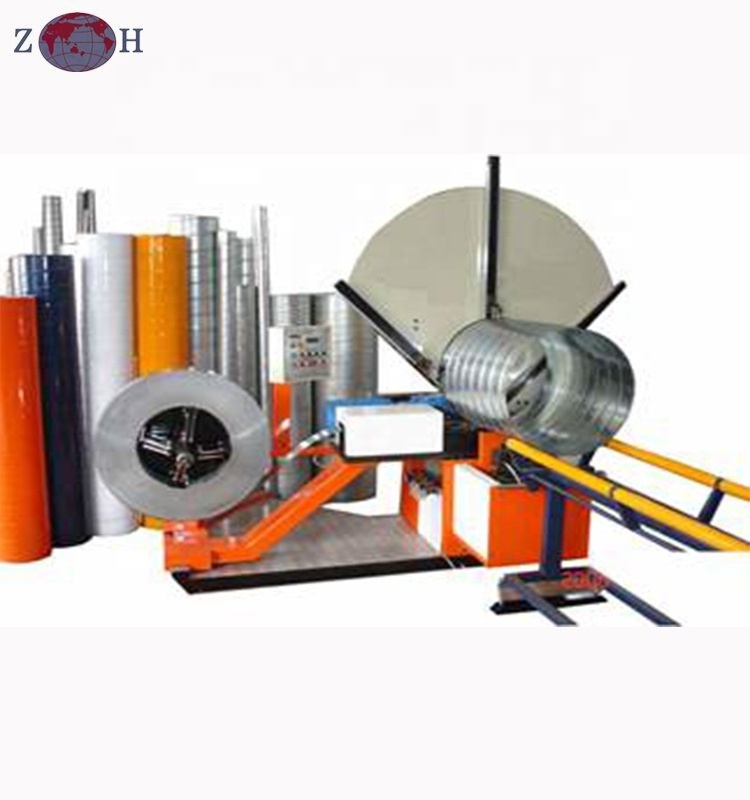

Picture for hvac spiral duct machine, round duct machine.
There also has HVAC square duct machines as below.
|
Model |
ADL-III |
ADL-IV |
ADL-V |
|
WORK FLOW |
Uncoiling-leveling and grooving –notching-bending |
Uncoiling-leveling and grooving – notching- Pittsburgh locking- TDF flange forming |
Full automatic Uncoiling-leveling and grooving – notching- Pittsburgh locking- TDF flange forming-bending- shaping |
|
Max. Width |
1500mm |
1500mm |
1500mm |
|
Thickness range |
0.5-1.2mm |
0.5-1.2mm |
0.5-1.2mm |
