Quick Details
-
Brand Name:
-
NINGBO MINGRUI
-
Model Number:
-
MR-JX-02
-
Operating Temperature:
-
-40-150
-
IP level:
-
IP65
-
Place Of Origin:
-
Zhejiang, China (Mainland)
-
Voltage:
-
220V
-
Material:
-
Nylon
-
Color:
-
Black
-
Voltage Rating:
-
DC5V-24V
-
Precision:
-
10-132L/H
-
Application:
-
Flow Switch
-
Company Profile:
-
Manufacturer
-
Withstand Hydraulic Pressure:
-
≤0.35Mpa
-
Working Start Flow:
-
1.5L/M
Quick Details
-
Media Type:
-
Liquid
-
Flow Rate:
-
1.5L/M
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
NINGBO MINGRUI
-
Model Number:
-
MR-JX-02
-
Operating Temperature:
-
-40-150
-
IP level:
-
IP65
-
Place Of Origin:
-
Zhejiang, China (Mainland)
-
Voltage:
-
220V
-
Material:
-
Nylon
-
Color:
-
Black
-
Voltage Rating:
-
DC5V-24V
-
Precision:
-
10-132L/H
-
Application:
-
Flow Switch
-
Company Profile:
-
Manufacturer
-
Withstand Hydraulic Pressure:
-
≤0.35Mpa
-
Working Start Flow:
-
1.5L/M

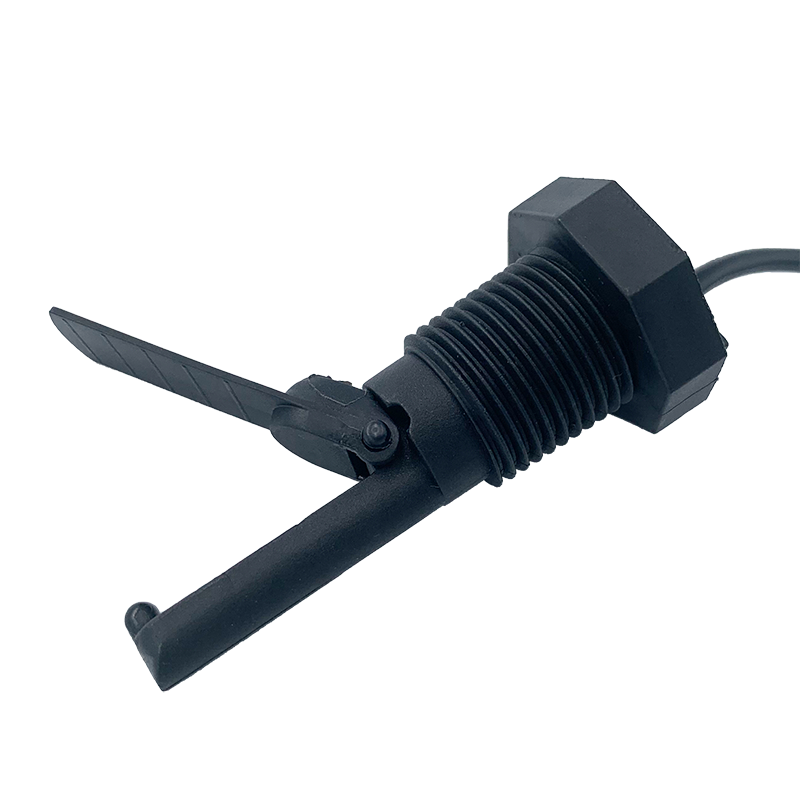

Flow Switch
We are a professional source factory,
with good product quality and cheap price
MR-JX-02
Introduction
flow switch consists of magnetic core, rotating impeller, external casing and sensor. Flow through the sensor
activates the magnetic core to trigger switch action, with signal output.
Features
imported components of the magnetic switch, sample working principles, and highly reliable, cheaper price.
Applications
it is used in the control of water circulation, water charging and discharging, water heating, water pump switch
on and off of solenoid valve, or powering on and off of water discharging for electric water heater, solar energy
water heater, air condition and other water systems.
Specification
| withstand hydraulic pressure | ≤0.35Mpa | |||||
| voltage rating | DC5V-24V | |||||
| insulation resistance | >100MΩ | |||||
| precision | 10-132L/H | |||||
| flow pulse | F=(18Q)+5% Q=L/min | |||||
| output pulse duty cycle | 50%±10% | |||||
| max output pulse voltage | >DC4.7V | |||||
| min output pulse voltage | <DC0.5V | |||||
| body material | Nylon | |||||
It is used for the water circulation control of swimming pool equipment, electric water heaters, solar water heaters, air conditioners, and other water systems, control of water pump switching, controlling the solenoid valve or water, and water -powered electricity control.
Ningbo Mingrui Sensor Co., Ltd. is a national high -tech enterprise dedicated to sensor, centralized lubrication, and various controller research and development and manufacturing. The main products include various types of hydraulic sensors, non -contact sensors, close to sensors, car oil/water tank sensors, flow sensors, photoelectric sensors, lubricating oil pump controllers, car chassis lubricating controller, fresh air/air purification controller, etc., etc. Products are widely used in various fields such as home appliances, medical equipment, machinery, electronics, water pumps, water purification treatment, and centralized lubrication systems of automotive chassis, and are customized and developed according to customer needs.
Since its establishment in 2007, the company has obtained 5 invention patents, 3 practical new patents, and 7 software copyrights after the unremitting efforts of the R & D team. Quality management system certification. The corporate purpose of "faith, with sincerity, and winning", adhering to the "technical innovation,The quality policy of customer satisfaction continues to improve quality and services, meet customer requirements and surpass customer expectations.
Our factory management is in accordance with international 5S standards, strict requirements and supervision of the various production processes.
We attended the Electronica in Germany in Nov 2014, new products have won the praise of many buyers.
