Quick Details
-
Model Number:
-
YC-05
-
Material:
-
Nitinol, NiTi Shape Memory Alloy
-
Outer Diameter:
-
≥ 0.3 mm
-
Length:
-
≤ 2000 mm
-
Application:
-
Industrial & Medical, Industry & Medical
-
Grade:
-
NiTi Shape Memory Alloy, Nitinol Ti-Ni Alloy, nickel titanium alloy
-
Wall Thickness:
-
0.05 ~ 3.0 mm
-
Inside Diameter:
-
≥ 0.2mm
-
Product Name:
-
Medical Nitinol Tube
-
Transformation temperature:
-
-20-110 degree celsius
-
Shape:
-
tube,pipe,capillary tube
-
Density:
-
6.5g/cm3
-
Surface:
-
black, polished, oxidized
-
Supply Status:
-
Full annealed
-
Certificate:
-
ISO 13485
Quick Details
-
Standard:
-
ASTM F2633-07
-
Place of Origin:
-
China
-
Brand Name:
-
Innovmet
-
Model Number:
-
YC-05
-
Material:
-
Nitinol, NiTi Shape Memory Alloy
-
Outer Diameter:
-
≥ 0.3 mm
-
Length:
-
≤ 2000 mm
-
Application:
-
Industrial & Medical, Industry & Medical
-
Grade:
-
NiTi Shape Memory Alloy, Nitinol Ti-Ni Alloy, nickel titanium alloy
-
Wall Thickness:
-
0.05 ~ 3.0 mm
-
Inside Diameter:
-
≥ 0.2mm
-
Product Name:
-
Medical Nitinol Tube
-
Transformation temperature:
-
-20-110 degree celsius
-
Shape:
-
tube,pipe,capillary tube
-
Density:
-
6.5g/cm3
-
Surface:
-
black, polished, oxidized
-
Supply Status:
-
Full annealed
-
Certificate:
-
ISO 13485
Product Description

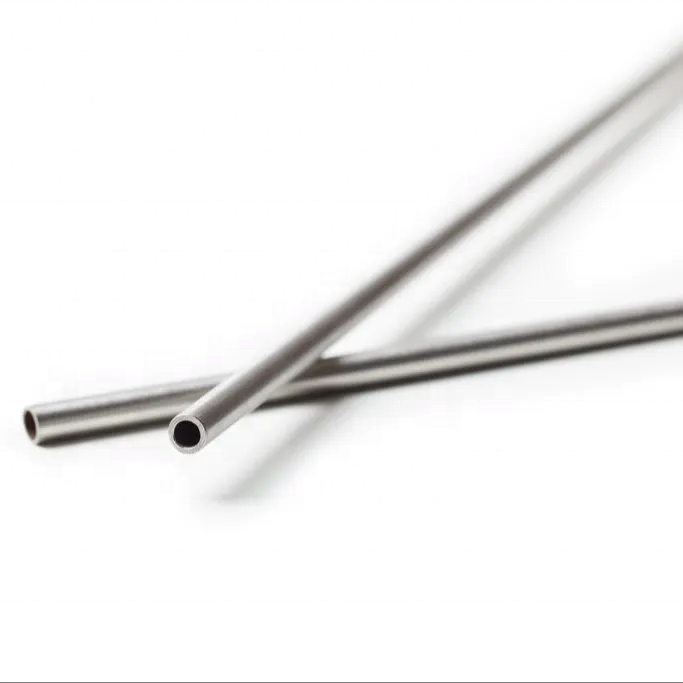

Nitinol Tube
Nitinol Tubing was first manufactured commercially in the early 1990's. Since then, the application have reached unprecedented levels and continue to rise today. Due to Nitinol's unique properties it has seen a large demand for use in less invasive medical devices. Nitinol tubing is commonly used in catheters, stents, and superelastic needles. Today, it offers the best compromise between engineered plastics and traditional metals.
Compared to other alloys tubing technologies Nitinol tubing technology is fairly recent but has many advantages over stainless steel hypotube. Kink and crush resistance, Flexibility, Large amount of recoverable deformation, Generation of constant or low forces over a wide range of deformation, Energy storage and restoration.
Compared to other alloys tubing technologies Nitinol tubing technology is fairly recent but has many advantages over stainless steel hypotube. Kink and crush resistance, Flexibility, Large amount of recoverable deformation, Generation of constant or low forces over a wide range of deformation, Energy storage and restoration.
Specification
|
item
|
value
|
|
Place of Origin
|
China
|
|
Brand Name
|
Innovmet
|
|
Model Number
|
YC-05
|
|
Material
|
Nitinol
|
|
Outer Diameter
|
≥ 0.3 mm
|
|
Length
|
≤ 2000 mm
|
|
Standard
|
ASTM F2633-07
|
|
Application
|
Industrial & Medical
|
|
Technique
|
Seamless
|
|
Grade
|
NiTi Shape Memory Alloy
|
|
Wall Thickness
|
0.05 ~ 3.0 mm
|
|
Inside Diameter
|
≥ 0.2mm
|
|
Processing Service
|
Bending, Welding, Decoiling, Cutting, Punching
|
|
Product Name
|
Medical Nitinol Tube
|
|
Transformation temperature
|
-20-110 degree celsius
|
|
Shape
|
tube,pipe,capillary tube
|
|
Density
|
6.5g/cm3
|
|
Application
|
Industry & Medical
|
|
Surface
|
black, polished, oxidized
|
|
Grade
|
Nitinol Ti-Ni Alloy, nickel titanium alloy
|
|
Material
|
NiTi Shape Memory Alloy
|
|
Supply Status
|
Full annealed
|
|
Certificate
|
ISO 13485
|
Mechanical Property
|
|
UTS σb MPa
|
Elongation δ %
|
Upper Plateau Stress
σload MPa |
Permanet Set
after 6% strain % |
Active Af ℃
|
|
Superelastic
|
> 1000
|
≥ 10
|
≥ 380
|
≤ 0.5
|
< 20
|
Dimension Tolerance:
|
Nominal OD or ID in mm (in.)
|
Permissible Variation from Nominal in mm (in.)
|
|
≤ 1.5 (0.059)
|
± 0.025 (0.001)
|
|
≤ 6.5 (0.256)
|
± 0.050 (0.002)
|
|
≤ 12 (0.472)
|
± 0.075 (0.003)
|
Nitinol Temperature
|
Name
|
Grade
|
Transformation Temperature AF
|
Form
|
Standard
|
|
Shape Memory Nitinol Alloy
|
Ti-Ni-01
|
20 °C~ 40 °C
|
Wire
|
Customer specified or Industry standard |
|
|
Ti-Ni-02
|
45 °C~ 90 °C
|
|
|
|
Superelastic Nitinol Alloy |
TiNi-SS
|
-5 °C~ 5 °C
|
|
|
|
|
TN3
|
-5°C~ -15°C
|
|
|
|
Low Temperature Superelastic Nitinol Alloy
|
TNC
|
-20°C~ -30°C
|
|
|
|
Medical Nitinol Alloy
|
TiNi-SS
|
33 ± 3 °C
|
Wire
|
ASTM F2063
|
Packing & Delivery
Packing Details :
1.Wrapped with waterproof paper,Surrounded with foam and then put into plywood box or carton box;
2.Pack as customer's request.
Delivery Details : 3-15 working days after order of nitinol tube pipe / nickel titanium alloy tube pipe
