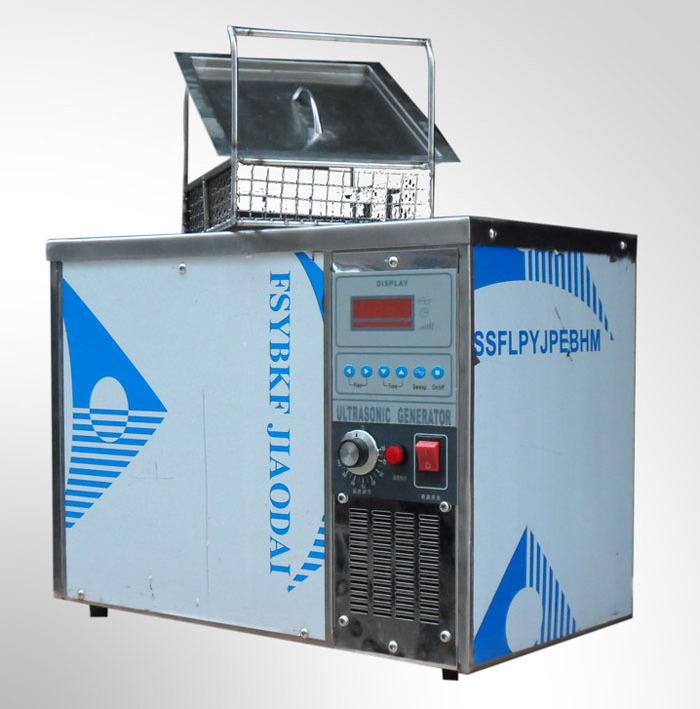

Hardware parts ultrasonic cleaning machine Stainless steel jewelry cleaning machine

Hardware parts ultrasonic cleaning machine Stainless steel jewelry cleaning machine

FOB Reference Price: Get Latest Price

≥1 Pieces

US $700

≥3 Pieces

US $600

≥10 Pieces

US $500

≥50 Pieces

US $450

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Dimension(L*W*H):: 500*338*365

Weight (KG):: 200 kg

Application:: metal jewelry parts cleaning

cleaning:: oil cleaning

jewelry cleaning:: cleaning jewelry surface cleaning

stainless steel:: polishing parts wax cleaning

PCB circuit board:: flux rosin residue cleaning

watch:: watch clearning

eye glass metal:: metal clearning

heads:: 6pcs

Voltage:: 220v/380v

Ultrasonic Power:: 1kw

Quick Details

Place of Origin:: Zhejiang, China

Brand Name:: mengxun

Power:: 1kw

Dimension(L*W*H):: 500*338*365

Weight (KG):: 200 kg

Application:: metal jewelry parts cleaning

cleaning:: oil cleaning

jewelry cleaning:: cleaning jewelry surface cleaning

stainless steel:: polishing parts wax cleaning

PCB circuit board:: flux rosin residue cleaning

watch:: watch clearning

eye glass metal:: metal clearning

heads:: 6pcs

Voltage:: 220v/380v

Ultrasonic Power:: 1kw

Our Company

1. The variety is complete, ranging from families to large industries.

2. Renowned international brands “ Mengxun” are renowned worldwide for their excellent quality and service;

3, GD-30 configuration handle above, easy to carry; equipped with a large outlet; pipe heater high efficiency, long life, convenient maintenance;

4. The cleaning baskets are made of stainless steel SUS304 anti-corrosion, and GD-20 above the basket is designed to prevent side leakage;

5、Each package adopts environmental protection anti-fall pearl cotton foam, wooden box packaging, professional exports

1, the principle of cleaning
The ultrasonic cleaning machine is a high-frequency oscillation signal generated by an ultrasonic signal generator (power supply) converted into a high-frequency mechanical oscillation through a transducer (vibrator) and propagated into the liquid, and the ultrasonic waves are radiated and generated in the liquid in a dense and interleaved manner. Thousands of tiny bubbles that form and grow in the negative pressure zone during propagation, and close rapidly in the positive pressure zone, in what is called the “cavitation effect”.
Closed bubbles can form instantaneous high pressure of thousands of atmospheric pressure. Continuously generated high pressure is like countless small “explosions” that constantly hit the surface of objects, causing the dirt on the surfaces and gaps of objects to peel off quickly, thereby achieving the purpose of cleaning.
CNC series ultrasonic cleaning machine uses LED human-computer interaction interface, digital display, friendly and clear, intuitive and convenient, can achieve timing, ultrasonic power adjustment and other functions. The aircraft performance is stable and reliable, and is deeply loved by users.

Third, the use of the environment
1, the ambient temperature 10 °C -30 °C, the cleaning fluid temperature 10 °C -110 °C
2. Relative humidity ≤80%
3, atmospheric pressure 86~106Kpa
4, continuous working time ≤ 24 hours
Fourth, use method
1, ready
The cleaning liquid is added in the cleaning tank and it is required to reach the predetermined water level. Turn on the power and the power indicator is on.
2, do not need to clean the timer
Press the ultrasound button, the ultrasonic indicator light is on, ultrasonic cleaning is started, the ultrasonic button is pressed again, and the ultrasonic cleaning is finished.
V. Precautions
1, avoid! It is forbidden to turn on the ultrasonic cleaning tank in anhydrous state to avoid damage to the machine.
2. Turn off the power when putting/removing the cleaning fluid.
3. It is prohibited to use corrosive and flammable solutions as cleaning fluids to avoid corrosion of containers and danger.
4, the chassis must be grounded and reliable.
5. Under normal conditions, the washing machine will automatically warm up after 10-15 minutes of continuous work. If it is cleaned with warming, the temperature should not exceed 70°C and the ambient temperature must not exceed 45°C.
6. It is forbidden to remove and install the cleaning machine to prevent electric shock! !

TECHNICAL PARAMETERS

We have:Single-slot ultrasonic cleaning machine, multi-slot ultrasonic cleaning machine,

Ultrasonic vibration plate, ultrasonic plate shock plate, circuit board rosin cleaning machine, PCB circuit board ultrasonic cleaning machine, hardware
Degreasing cleaner, stainless steel polishing wax cleaner, optical lens cleaning equipment, mobile screen cleaning equipment, drying equipment,

technical parameters
1, model GDS-1006
3, ultrasonic frequency: 40KHz
4, ultrasonic power: 300W
5, working power: AC 220 V.50Hz
6, cleaning tank: 290 × 200 × 230 mm3
7, weight: 16Kg
Note: For heating and temperature setting functions, it can be customized according to user requirements and is not within the conventional range.

Our brand--MENGXUN

We are committed to the popularity of machine products and technology promotion, welcome customers to discuss cooperation

all jewelry machines,tools retail and whosale

our apply

Widely used in hardware electronic parts oil cleaning, stainless steel polishing parts wax cleaning, PCB circuit board flux rosin residue cleaning, cleaning jewelry surface cleaning!

Integrated cleaning machine advantages:

1. Good cleaning effect, high cleanliness and consistent cleanliness
II. Cleaning speed, improve production efficiency
3. It is not necessary to touch the cleaning liquid with human hands. It is safe and reliable to clean the deep hole, sipe and hidden parts of the workpiece without damaging the surface of the workpiece.
IV. Save on solvents, heat, workplaces and labor
Fives. Ultrasonic generator and shock plate are connected by fiber-optic high-frequency shielded wire to prevent skin effect. Prevents connection between ultrasonic generator and vibration plate
six. Ultrasonic vibration plate can be customized according to customer requirements, spot ultrasonic vibration plate design and manufacture of special specifications, different sizes, power, frequency (17KHZ-300KHZ, 1MHZ) non-standard equipment to meet the different needs of customers!
Seven. Ultrasonic vibration plate can be achieved according to the customer's request for different control methods (such as ordinary switch control, PLC weak control, closed control, remote control, etc.).
8. The ultrasonic cleaning machine is an integrated cleaning machine. The ultrasonic generator is built inside the device. It is convenient, stable and beautiful. It is suitable for international use requirements!

you also need those

Our factory

quality best

price: cheapest

Original: china

Voltage:220v,380v

we had saled to peru,mexico,poland,Portugal, Russia, New Zealand, Ecuador, Malaysia, Spain

Domestic famous engines, strong driving force, low fuel consumption, high economic benefits saving cost

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine with video

* if need Engineers available to service machinery overseas.

our mexico General agent--rafael

also can contact our rafael office ,if you are in mexico markets or near markets.

Packing & Delivery

Packaging
Size	9363101,0.59cbm
Weight	100kg
Packaging Details	The normal package is wooden box(Size: LWH). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.we put polishing stone in the wooden to save shipping fee to meeting customer's requests.

Packaging
Size	9363101
Weight	100kg
Packaging Details	The normal package is wooden box(Size: LWH). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. for this customer ,
