Quick Details
-
I/O number:
-
GC-1008~GC-8012
-
Programming software::
-
OpenPCS/Codesys
-
Rated power supply:
-
24V DC
-
working temperature:
-
-40C~+85°C
-
Protection level:
-
IP20
-
EMC anti-interference level:
-
Zone B
Quick Details
-
Brand Name:
-
GCAN
-
Place of Origin:
-
Liaoning, China
-
Memory:
-
no
-
I/O number:
-
GC-1008~GC-8012
-
Programming software::
-
OpenPCS/Codesys
-
Rated power supply:
-
24V DC
-
working temperature:
-
-40C~+85°C
-
Protection level:
-
IP20
-
EMC anti-interference level:
-
Zone B
Product Description
Functional Overview

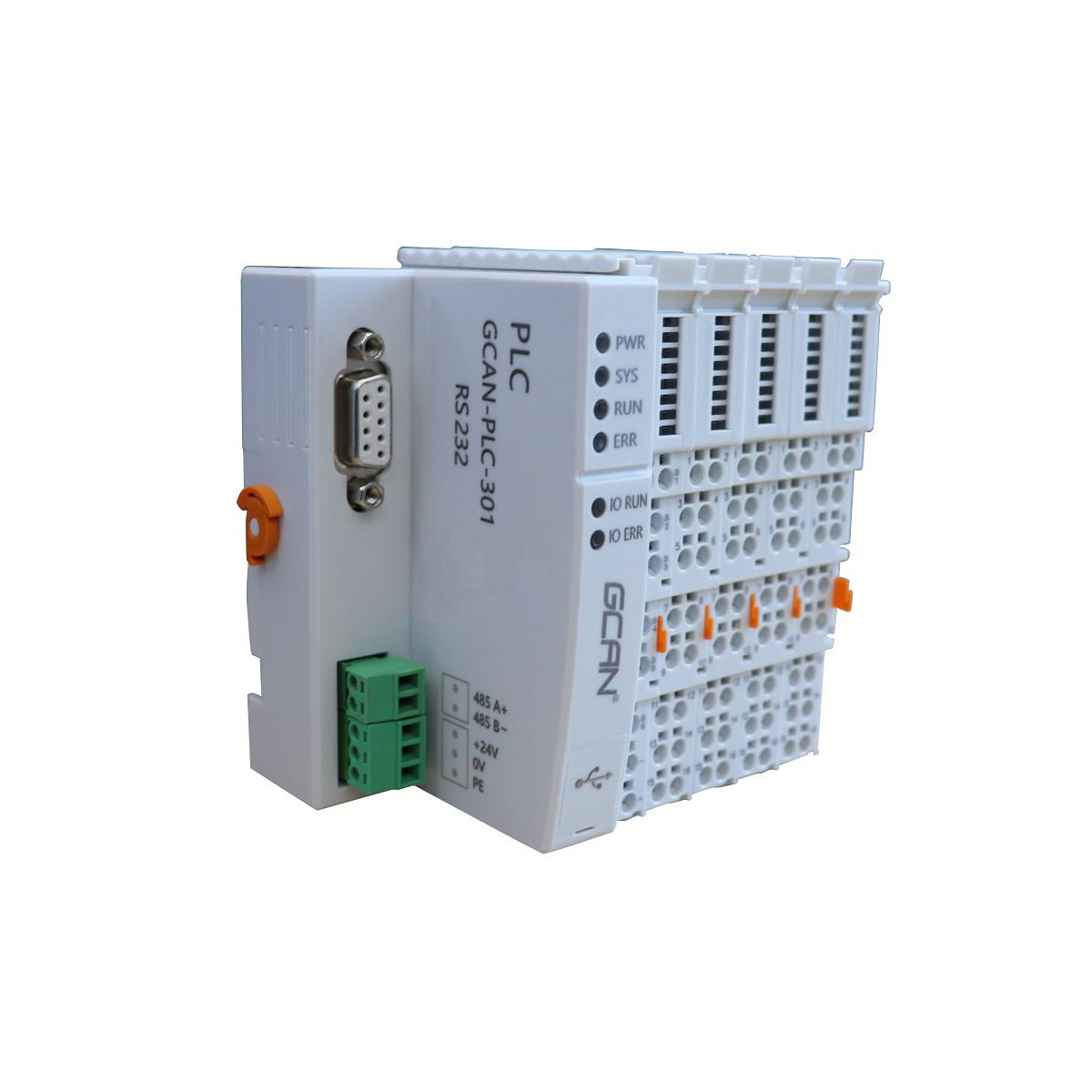

GCAN-PLC-301/302 integrates bus control function, which can be easily connected to CAN bus system and Modbus system, etc., and can be expanded through plug-in modules.
Programming Software
GCAN-PLC-301/302 can be programmed using OpenPCS software or CodesysV3.5 SP16 and above software. The software supports five standard programming languages that comply with the IEC-61131-3 standard, which makes the program highly portable and reusable. The software also has a variety of debugging functions (breakpoints, single-step, etc.), debugging The program is more convenient.
GCAN-PLC-301/302 can not only complete various digital/analog input/output, but also integrates a variety of commonly used industrial field buses, such as: CAN bus (supported by GCAN-PLC-302), RS485 bus, RS232 bus , and supports common communication protocols such as: CANopen (supported by GCAN-PLC-302), Modbus RTU, etc.
Performance characteristics
Programming software: OpenPCS/Codesys (programming language complies with IEC61131-3 standard);
Support CANopen protocol master/slave function (supported by GCAN-PLC-302);
Support ModbusRTU master/slave function;
The number of expandable IO modules is up to 16;
By default, 4 PDOs (CANopen) are sent and 4 PDOs (CANopen) are received.
(GCAN-PLC-302 supported);
The configuration mode is automatic configuration;
The power supply adopts DC+24V; the maximum input current is 1A;
Communication isolation is 1500V DC;
Working temperature range: -40℃~+85℃;
Protection level: IP20;
EMC anti-interference level: Zone B;
EMC anti-interference support: power supply channel, RS485 channel, CAN channel.
GCAN-PLC-301/302 product consists of a programmable main control module (GCAN-PLC-301/302, etc.), several GC series IO modules (GC-1008, GC-3804, etc.) and a terminal resistor module GC-0001 )composition.
GCAN-PLC-301/302 main control module can connect to all GC series IO modules. Users can choose to expand the IO modules according to the actual needs of the site. The number of IO modules can be expanded up to 16.
Application
our service
After-sale service
Our main products are all independent research and development.We provide one year free after-sales warranty,lifetime free software and technical support if you have any question，our after-sales engineer will answer for you,please feel free to purchase.
