Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Wubota
-
Dimension(L*W*H):
-
3320mm*1510mm*2420mm
-
Weight:
-
1000 KG
-
Marketing Type:
-
Hot Product 2022
-
Product Name:
-

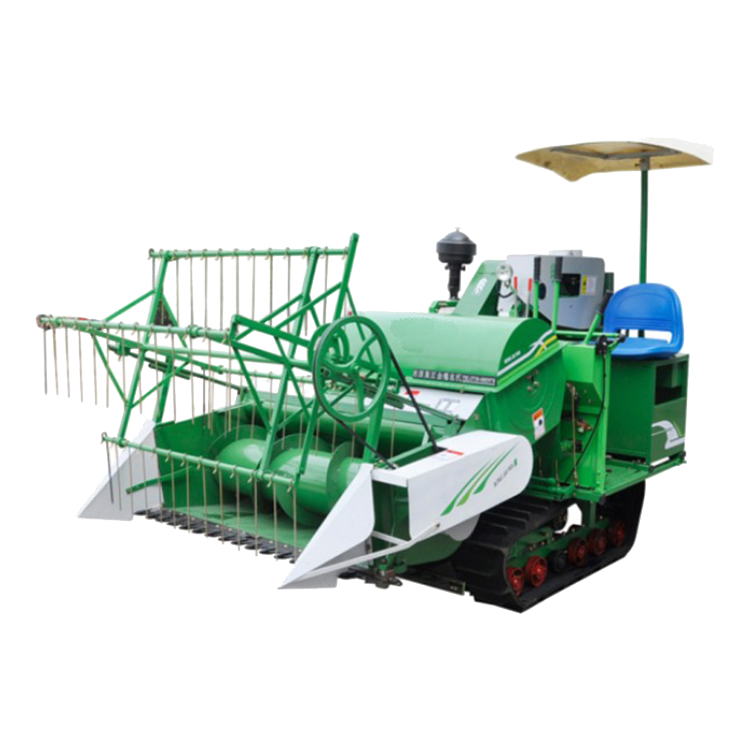

4LZ-1.2 Mini Combined Harvester
-
Cutting Width:
-
1200 mm
-
Engine Power:
-
25HP
-
Rotating Speed:
-
2200 r/min
-
Feeding Capacity:
-
1.2 kg/s
-
Minimum Ground Clearance:
-
340 mm
-
Operation Speed:
-
1.8 to 5.64 km/h
-
Productivity:
-
0.2 to 0.3 hm2/h
-
Rubber Crawler:
-
280mm*90mm*35
Quick Details
-
Number of Rows:
-
2
-
Working Width(mm):
-
1200 mm
-
Tractor Power(HP):
-
10 - 25 HP
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Wubota
-
Dimension(L*W*H):
-
3320mm*1510mm*2420mm
-
Weight:
-
1000 KG
-
Marketing Type:
-
Hot Product 2022
-
Product Name:
-
4LZ-1.2 Mini Combined Harvester
-
Cutting Width:
-
1200 mm
-
Engine Power:
-
25HP
-
Rotating Speed:
-
2200 r/min
-
Feeding Capacity:
-
1.2 kg/s
-
Minimum Ground Clearance:
-
340 mm
-
Operation Speed:
-
1.8 to 5.64 km/h
-
Productivity:
-
0.2 to 0.3 hm2/h
-
Rubber Crawler:
-
280mm*90mm*35
China 4Lz-0.8 Mini Combine Harvester 15 Hp Mesin Pemanen Padi Mini Combine Harvester In Sri Lanka
Click Here,More Big Discount For You , "Click"
|
|
|
||||
1. This machine with combined structure, it is easy to dismounting and cleaning. And it with simple structure, easy to maintenance.
2. Header can adjustable up and down. It is very safe, convenient and quick when up and downhill or transfer at field. Header can rise and fall with a handle, it will make the header close to ground enough and harvest laid crop.
3. Adopting new vibrating screen, sundries will clean out after vibrating screen. It makes grain more clear and few sundries
4. Rubber crawler have a longer service life and have a stronger pass performance at the field.
5. This machine with new type drive platform, it make driver have a wide view and safer when working.
| ( WUBOTA Mini Rice Harvester ) Main Parameter | |||
| Item | Unit | 4LZ-1.2 Specification | |
| Model | 4LZ-1.2 | ||
| Sturcture Type | Vertical Axis Flow Full Feeding Rubber Crawler Self-propelled | ||
| Engine | Type | 4-Cylinder,Vertical Engine,Water Cooled | |
| DI-Injection, Turbocharged Engine | |||
| Rated Power | hp | 25hp | |
| Rotating Speed | r/min | 2200 | |
| Dimension(L*W*H) | Working State | mm | 3320*1510*2420 |
| Weight | kg | 1000 | |
| Cutting Width | mm | 1200 | |
| Feeding Capacity | kg/s | 1.2 | |
| Minimum Ground Clearance | mm | 240 | |
| Operation Speed | km/h | 0.5 to 1.5 | |
| Productivity | hm2/h | 0.11 to 0.22 | |
| Cutter Type | Standard Type II | ||
| Cutting Header Auger Type | Telescopic Transverse Conveyor Auger | ||
| Reel | Type | Eccentric Tooth(off center) | |
| Diameter | mm | Ø900 | |
| Quantity | pc | 5 | |
| Threshing Roller | Quantity | pc | 1 |
| Type | Vertical Axis Flow Spike Tooth | ||
| External(D*L) | mm | Ø620*2010 | |
| Concave Sieve Type | Grid | ||
| Brake Type | Wet Friction Plate | ||
| Rubber Crawler | Size | mm | 280mm*90mm*35 |
| Track Gauge | mm | 1265 | |
| Gear Box | YD-85 Gearbox + (45CC HST) | ||
| Rethresher Type | Auger Spike Tooth | ||
| Grain Unloading Type | 360 Degrees unloading auger | ||
WUBOTA Focus on high quality cost-effective agricultural machinery integrated sales and services, the main business: self-propelled full-feeding combine harvester, mini combine harvester, rice transplanter, tractors, and other various bands of agricultural machinery.
Advantages:
1. Rich experience of exporting agricultural machinery.
2. Integrate the resources of all agricultural machinery manufacturers, to provide one-stop service to foreign customers
3. Experienced technical consultants, to solve various problems of customers in real-time
4. Provide technical training to local buyers, to create a professional technical team for customers
5. Work with customers together to expand the market 6. Strong after-sales service team to ensure that the maintenance of each machine and field working instructions.
