Mooring marine tee head cast iron bollard 100t marine t head bollard

Mooring marine tee head cast iron bollard 100t marine t head bollard

FOB Reference Price: Get Latest Price

≥1 Pieces

US $100

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Product name:: Tee Head Bollard

Size:: Customized Size

Application:: Wharf/Quay

Certification:: BV/CCS/TUV/ISO/LR

Quick Details

Place of Origin:: Shandong, China

Brand Name:: JIER

Material:: Cast Steel

Product name:: Tee Head Bollard

Size:: Customized Size

Application:: Wharf/Quay

Certification:: BV/CCS/TUV/ISO/LR

Product Description

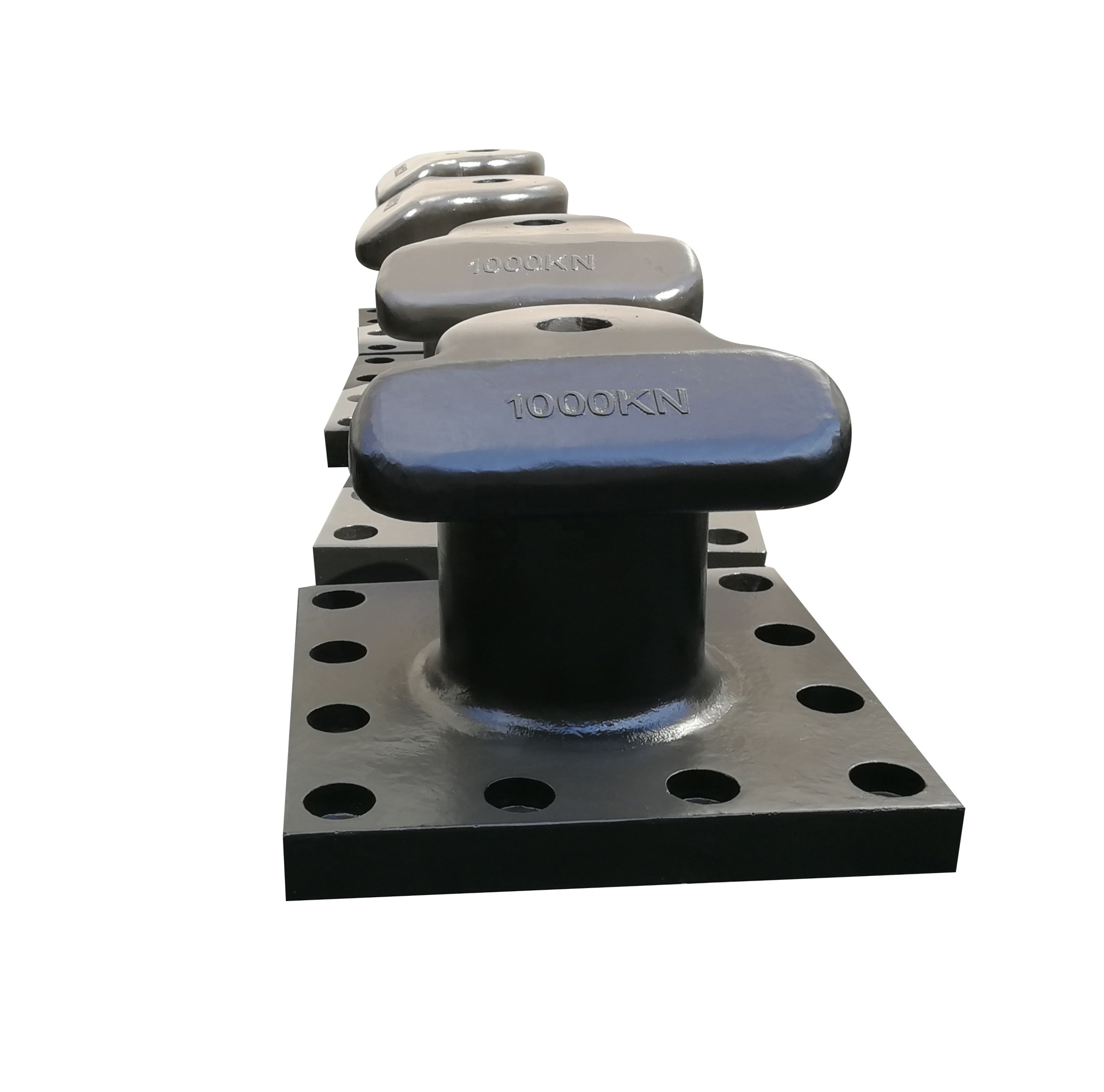

Tee Head Bollard

The Tee Head Bollard is the world’s favorite design choice. It accommodates mooring lines from all vessel sizes and types, at higher angles than Single or Double Bitt models. It uses the minimum of valuable space along the quay.

FEATURES
1. Up to 300t capacity on request

2. Accepts very steep lines

3. Compact footprint

4. Choice of materials to suit climate and application

5. Perfect for multi-use facilities

TYPICAL MATERIALS FOR BOLLARD

Spheroidal Graphite Iron and Cast Steel are commonest materials for bollards. Both can be used for various applications. JIER does not recommend gray cast iron.

SG IRON

Spheroidal Graphite Iron has high resistance to corrosion and is economical choice per weight. SG Iron is more suitable for warmer environments. SG Iron bollards tend to weigh more due to a thicker cross-section. SG Iron can avoid coating damage and their surface allows for clearer cast-in details such as names and serial numbers

CAST STEEL

Cast steel copes better with cold climates. Minor repairs can be carried out by suitably qualified welders, and bollards may even be welded to existing steel structures. Regular inspection and maintenance may be required to ensure a long and trouble-free working life. Impact testing is strongly recommended for cold-weather applications.

Specification

Model	A	B	C	D	E	F	G	H
Model		mm	mm	mm	mm	mm	mm	mm	mm
JBT10	240	304	380	330	50			230
JBT15	270	333	416	339	55			255
JBT20	282	349	436	359	55		229	304
JBT30	294	364	455	379	60		235	319
JBT50	390	456	570	482	70		305	412
JBT75	445	520	650	550	75		290	442
JBT100	492	616	770	630	85	297	475	545
JBT125	511	669	836	715	100	351	541	615
JBT150	530	718	898	748	110	358	559	638
JBT200	598	765	956	825	120	347	557	687
Model	I	J	K	L	M	Bolt
Model		mm	mm	mm	mm	mm	Size	Qty
JBT10	107			280	140	M24	4
JBT15	90			306	131	M24	4
JBT20	0	137		325	141	M24	5
JBT30	0	145		335	152	M30	5
JBT50	0	186		430	197	M36	6
JBT75	125	242		500	225	M42	6
JBT100	0	193	295	600	245	M42	7
JBT125	0	207	343	363	197	M48	7
JBT150	0	219	334	378	299	M48	7
JBT200	111	290	358	716	347	M56	8

The sizes listed above are partial and only for reference, other sizes besides the above can be customized. Contact us for specific model capacities and safety factors.

Installation Details

Bollard & Accessories

1. Tee Head Bollard 2. Anchors 3. Bolts & Nuts P.S. We provide customized services not only for bollard specification, but also for project design, installation and specified accessories to meet various requirements of different customers.

Bollard Selecting

Bollard design relates many aspects and various factors shall be taken into account. Here are some common factors designers require to consider:

• Draft changes

• Water level changes

• Forces due to wind and currents

• Forces due to waves, swell and tides

• Forces due to ice (if required)

• The type, size and ang e of mooring lines

• Anchor type and mounting method

• Overload prevention
