Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
FUERTE
-
Model Number:
-
GW9-15GX-11kV/630A(420)
-
Standard:
-
IEC 62271-102
-
Insulator Type:
-
Porcelain
-
Rated current Max.:
-
630A
-
Temperature-rise:
-
Less than 65K
-
Mechanical life:
-
3000 times
-
Impulse withstand voltage:
-
105kV
-
Peak withstand current:
-
50kA
-
Short time withstand current:
-
20kA/4s
-
Power-frequency withstand voltage:
-
70kV
Quick Details
-
Number of Pole:
-
1
-
Rated Current:
-
630A
-
Rated Voltage:
-
11, 11KV
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
FUERTE
-
Model Number:
-
GW9-15GX-11kV/630A(420)
-
Standard:
-
IEC 62271-102
-
Insulator Type:
-
Porcelain
-
Rated current Max.:
-
630A
-
Temperature-rise:
-
Less than 65K
-
Mechanical life:
-
3000 times
-
Impulse withstand voltage:
-
105kV
-
Peak withstand current:
-
50kA
-
Short time withstand current:
-
20kA/4s
-
Power-frequency withstand voltage:
-
70kV

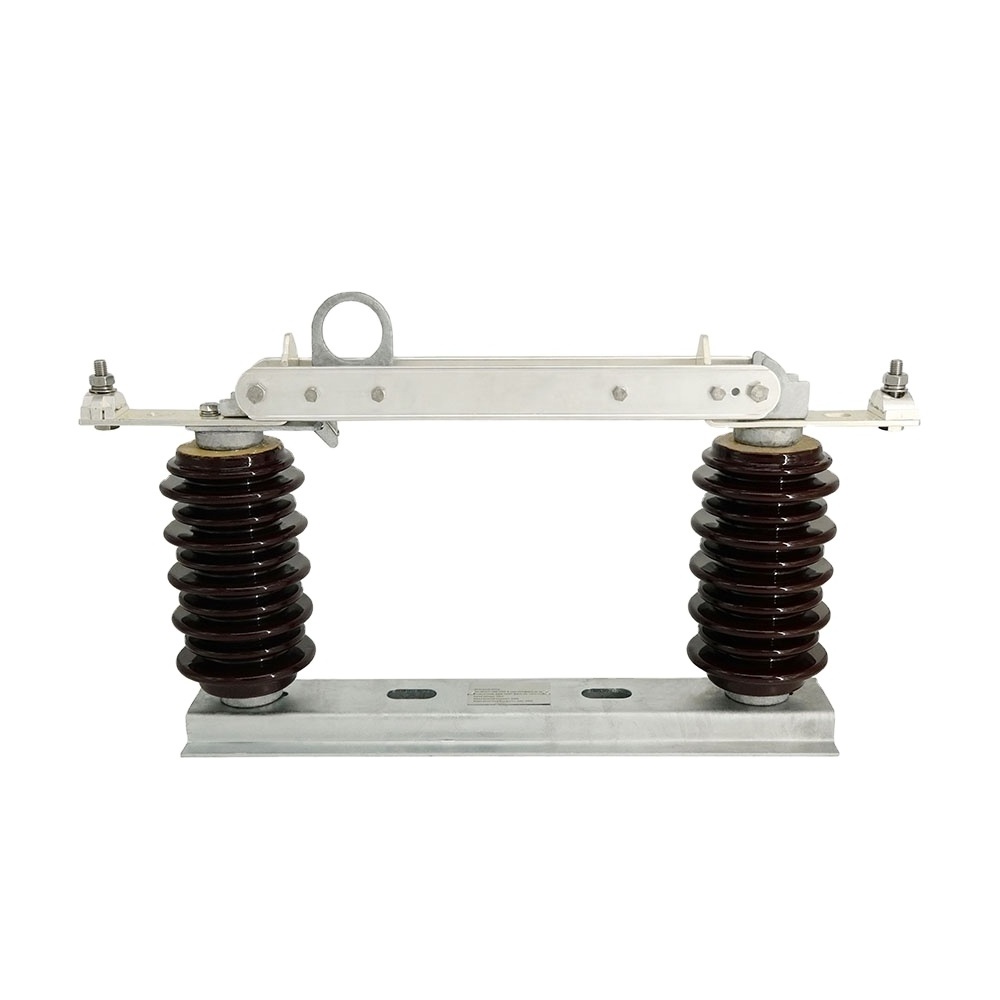

Single pole disconnecting switch 11kV 630A medium voltage
Main Material:Red copper with silver coating,copper with silver coating,wet-process porcelain insulator,
Stainless steel,galvanized steel.
Standard:IEC62271-102
Technical Specifications:
| Model | Rated Voltage | Rated Current | Impulse Withstand Voltage | Power-frequency Withstand Voltage | Short time withstand current | Peak Withstand Current |
| GW9-15GX-11kV/630A(420) | 11KV |
400A~ 630A |
170KV | 70KV | 20kA/4s | 50KA |
Our Exhibition
1.We'll be contacted directly at any time within 24 hours.
2.Customized products can be made as per customers' requirements if have your drawings or samples.New molds can be also made by us.
3.We are an ISO9001 certified company,products passed many type tests in arredited labs in accordance with international standards.
