Quick Details
-
Capacity:
-
max 2000kgs
-
Material:
-
Steel Q235
-
Finish:
-
Expoxy Electrostatic Powder Coating
-
Loading Capacity:
-
max 2000KG
-
Style:
-
conventional
-
Packing:
-
Customers' Request
-
Color:
-
RAL Color
-
Usage:
-
Warehouse Storage System
-
MOQ:
-
1 Set
-
OEM/ODM:
-
Acceptale
-
Application:
-
Warehosue
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Winno
-
Model Number:
-
WI-B002
-
Capacity:
-
max 2000kgs
-
Material:
-
Steel Q235
-
Finish:
-
Expoxy Electrostatic Powder Coating
-
Loading Capacity:
-
max 2000KG
-
Style:
-
conventional
-
Packing:
-
Customers' Request
-
Color:
-
RAL Color
-
Usage:
-
Warehouse Storage System
-
MOQ:
-
1 Set
-
OEM/ODM:
-
Acceptale
-
Application:
-
Warehosue

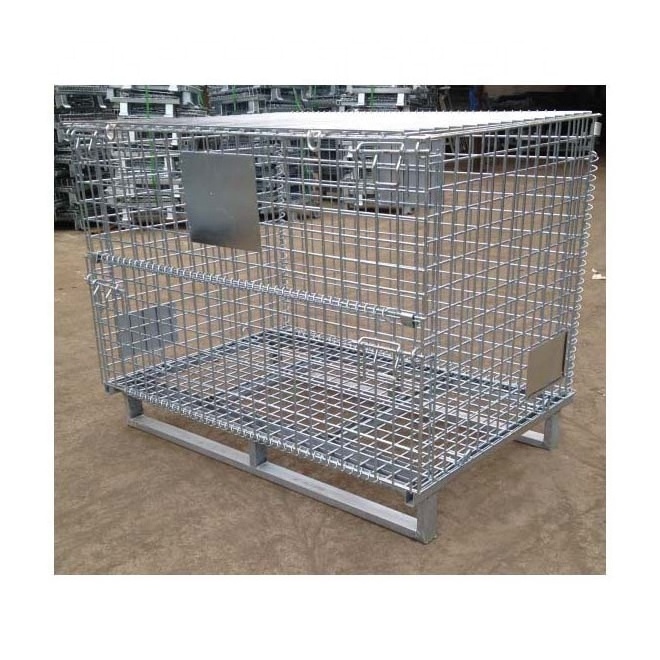

1000kgs transportation shipping metal wire mesh pallet box container
Product Description
1. Different loading capacity for choose: 500kgs, 600kgs,800kgs,1000kgs,1200kgs,1500kgs;
2. It is easy to fold and unfold, which can take full advantage of the warehouse;
3. Can equip with wheels if need.
| Model | Staking Layer | Loading capacity (kgs) | Length (mm) | Width (mm) | Height (mm) | Wire Dia (mm) | Wire mesh (mm) |
| A-5 | 4 | 1200 | 1000 | 800 | 840 | 5.8 | 50*50 |
| A-5 | 4 | 1200 | 1000 | 800 | 840 | 5.7 | 50*50 |
| A-5 | 4 | 1200 | 1000 | 800 | 840 | 6.0 | 50*50 |
| B-5 | 4 | 1500 | 1000 | 800 | 840 | 6.2 | 50*50 |
| B-5 | 4 | 1500 | 1000 | 800 | 840 | 6.4 | 50*50 |
| C-5 | 4 | 500 | 1000 | 800 | 840 | 4.8 | 50*50 |
| F-5 | 4 | 1000 | 1000 | 800 | 840 | 5.7 | 50*100 |
| S-5 | 4 | 1200 | 1000 | 800 | 840 | 6.2 | 50*100 |
| A-9 | 4 | 1200 | 1200 | 800 | 840 | 5.8 | 50*50 |
| B-9 | 4 | 1500 | 1200 | 800 | 840 | 6.2 | 50*50 |
| A-7 | 4 | 1500 | 1200 | 1000 | 890 | 5.7 | 50*50 |
| A-7 | 4 | 1500 | 1200 | 1000 | 890 | 5.8 | 50*50 |
| A-7 | 4 | 1500 | 1200 | 1000 | 890 | 6.0 | 50*50 |
| B-7 | 4 | 2000 | 1200 | 1000 | 890 | 6.2 | 50*50 |
| C-7 | 4 | 800 | 1200 | 1000 | 890 | 4.8 | 50*50 |
| F-7 | 4 | 1000 | 1200 | 1000 | 890 | 5.7 | 50*100 |
| S-7 | 4 | 1200 | 1200 | 1000 | 890 | 6.2 | 50*100 |
| A-3 | 4 | 800 | 800 | 800 | 640 | 5.7 | 50*50 |
| A-3 | 4 | 800 | 800 | 800 | 640 | 5.5 | 50*50 |
