Quick Details
-
Application:
-
Medical Swab
-
Voltage:
-
380v 50HZ
-
Raw material:
-
Stainless Steel
-
Model:
-
1 Ball/2 Balls/4balls
-
Keywords:
-
Ear Cotton Buds Making Machine
-
Final products:
-
Cotton buds
-
Control system language:
-
Operation LCD Screen
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
DH
-
Name:
-
Cotton bud making machine
-
Application:
-
Medical Swab
-
Voltage:
-
380v 50HZ
-
Raw material:
-
Stainless Steel
-
Model:
-
1 Ball/2 Balls/4balls
-
Keywords:
-
Ear Cotton Buds Making Machine
-
Final products:
-
Cotton buds
-
Control system language:
-
Operation LCD Screen
Product Description

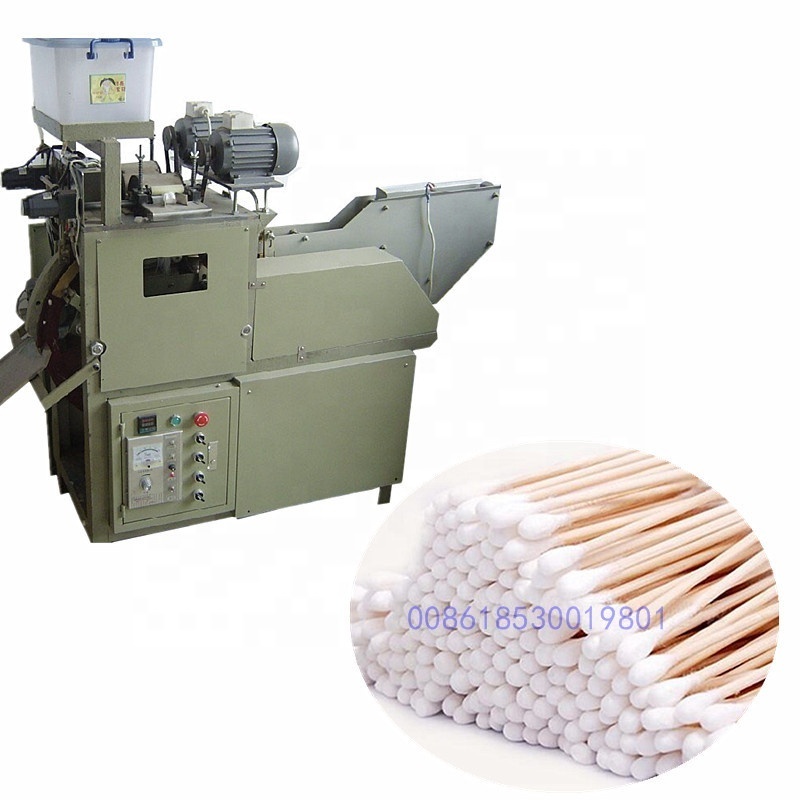

Cotton buds making machine
Process: cotton rolling machine---cotton swabs drying machine---cotton swabs packing machine.
Facotry on site
Detailed Images
Introduction
This production line is suitable for making medical swabs. It consists of forming system,
drying system, transmission system and packaging system. The machine is fed with raw material bamboo sticks, wood sticks andmedical absorbent cotton slivers into the cotton head forming system. During the process, the glue is applied inside and outside,and then enters the drying system. After drying, the electronic eye tracks and counts, and the return device is placed on thepackaging conveyor. Sealed directly into the bag. The whole machine needs 2 people, which is 100% higher than the previous cottonswab single machine production efficiency. The formed cotton head is full and clean, uniform in size, and the cotton head and the
rod are firmly entangled without falling off, and the product quality meets national standards. It is the product of choice for
many cotton swab manufacturers and enterprises.
Application range
The cotton swab machine is a forming machine for producing cotton swabs. The cotton swabs
produced are used in medical care in conjunction with medical alcohol to wipe skin stains and foreign objects. Remove blood stainsand debris from the wound, suture the wound for the next step, and perform preliminary cleaning by injection. A consumable used by
hospital nurses and for a long time. It can also be used for cleaning and care in hotels, hotels, beauty, baths, homes and otherfields.
Function feature
1.This machine adopts raw material feeding-production molding-drying-finished product
packaging, all of which are automatically integrated production, saving manpower.
2. PLC touch screen control system, no material shutdown, automatic fault alarm
3. The production speed can be adjusted.
4. Computer automatic counting device, real-time monitoring of production capacity.
5. The design of each part of the machine is simple and easy to repair and maintain.
6. The cotton swabs produced are even, smooth, smooth and beautiful.
7. You can choose boxed or bagged according to actual needs.
Capacity
*Paper stick: 1000 --- 1200pcs / min
*Bamboo / Wood Stick: 700-800pcs / min
*Plastic rod: 900 --- 1000 pcs / min
|
Machine name
|
Automatic cotton swab machine
|
Using air pressure
|
0.6-0.8 Mpa
|
|
Use of raw materials
|
2.0-3.0 g / m absorbent cotton sliver
|
Machine size
|
(L10800 * W1300 * H1500) MM
|
|
Use voltage
|
380V, 50 / 60Hz
|
Total Weight
|
1800kg
|
|
Machine energy consumption
|
8kw
|
Area
|
≈30㎡
|
