Quick Details
-
Mounting Type:
-
vertical
-
Description:
-
reed sensor, Water Float Switch
-
Manufacturing Date Code:
-
20230628
-
Model Number:
-
SEN-SSI240-double balls free sample
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
SAIER
-
Theory:
-
Dry Reed Theory
-
Output:
-
ON/OFF Control
-
Material:
-
Stainless Steel #304
-
Color:
-
Silver
-
Tyoe:
-
Normally Open
-
Output Signal:
-
Switch Signal, Contact Signal
-
Connection:
-
Fixed Screw M10
-
Operating Voltage Range:
-
Below DC220V
-
Maximum Operating Electric Current:
-
1.0 A
-
Line Specification and Install Direction:
-
could be Customized
-
Water Temperature:
-
less than 120 ℃
-
insulated resistor:
-
>100MΩ
Quick Details
-
Use:
-
Detect Water Level
-
Series:
-
Float type level switch
-
Features:
-
detect water level
-
Mounting Type:
-
vertical
-
Description:
-
reed sensor, Water Float Switch
-
Manufacturing Date Code:
-
20230628
-
Model Number:
-
SEN-SSI240-double balls free sample
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
SAIER
-
Theory:
-
Dry Reed Theory
-
Output:
-
ON/OFF Control
-
Material:
-
Stainless Steel #304
-
Color:
-
Silver
-
Tyoe:
-
Normally Open
-
Output Signal:
-
Switch Signal, Contact Signal
-
Connection:
-
Fixed Screw M10
-
Operating Voltage Range:
-
Below DC220V
-
Maximum Operating Electric Current:
-
1.0 A
-
Line Specification and Install Direction:
-
could be Customized
-
Water Temperature:
-
less than 120 ℃
-
insulated resistor:
-
>100MΩ

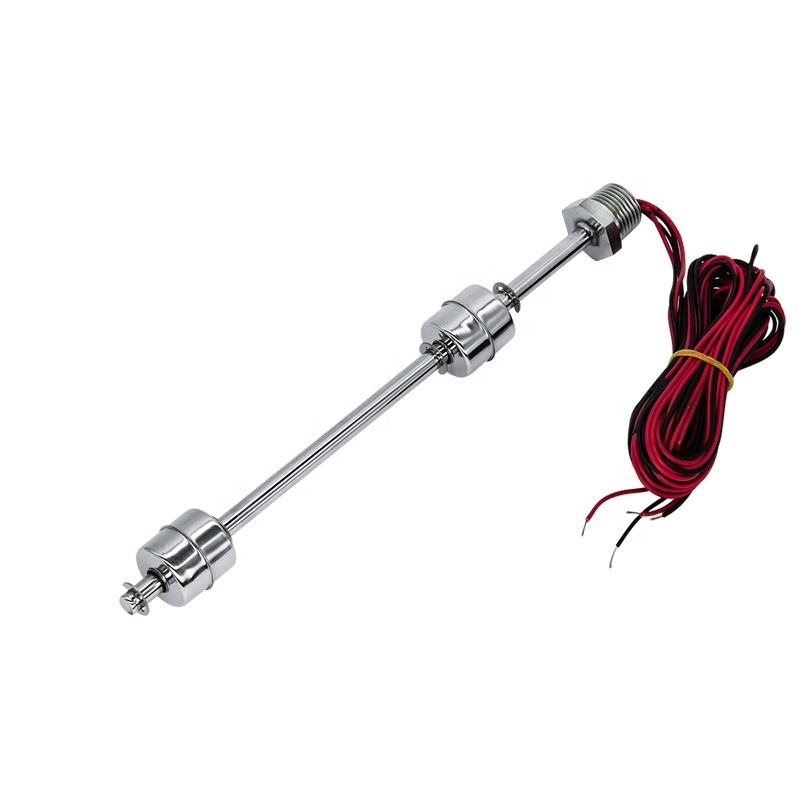

Stainless Steel Level Measuring Instruments 24 V Float Water Level Switch Sensor 50W / 220V Float Switch
Product Description
|
Product Name
|
SUS304 vertical mount water tank float level switch control
|
|
|
|
|
|
Material
|
Stainless steel #304
|
|
|
|
|
|
Connection Size
|
G 1/2"
|
|
|
|
|
|
Style
|
Normally opened, we also can custom made normal closed
|
|
|
|
|
|
Contact Capacity
|
AC220v/1A; DC24V/0.5A
|
|
|
|
|
|
Function
|
Float Switch, apply to level control and alarm of all kinds of industry such as electronic, electric power, chemical, water treatment, water supply and drainage.
|
|
|
|
|
