Quick Details
-
Print Dimension:
-
3.2m/2.5m/1.8m
-
Place of Origin:
-
Beijing, China
-
Brand Name:
-
Oasis
-
Dimensions(L*W*H):
-
228in*45in*75in(L*W*H) 95.8*1.10*1.90m)
-
Weight:
-
460 KG
-
Ink Type:
-
uv inks
-
Marketing Type:
-
Hot Product
-
Type:
-
Digital flatbed and roll to roll hybrid Printer
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Max. printing size:
-
130in(3.2.m)*no limitted
-
Max.Resolution:
-
1440*2160
-
Media thickness:
-
2cm
-
Colors:
-
Based on CMYK,Lclm,White or Varish added autonomously
Quick Details
-
Plate Type:
-
Flatbed Printer
-
Color & Page:
-
Multicolor
-
Voltage:
-
208-230VAC,50/60Hz,
-
Print Dimension:
-
3.2m/2.5m/1.8m
-
Place of Origin:
-
Beijing, China
-
Brand Name:
-
Oasis
-
Dimensions(L*W*H):
-
228in*45in*75in(L*W*H) 95.8*1.10*1.90m)
-
Weight:
-
460 KG
-
Ink Type:
-
uv inks
-
Marketing Type:
-
Hot Product
-
Type:
-
Digital flatbed and roll to roll hybrid Printer
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Max. printing size:
-
130in(3.2.m)*no limitted
-
Max.Resolution:
-
1440*2160
-
Media thickness:
-
2cm
-
Colors:
-
Based on CMYK,Lclm,White or Varish added autonomously

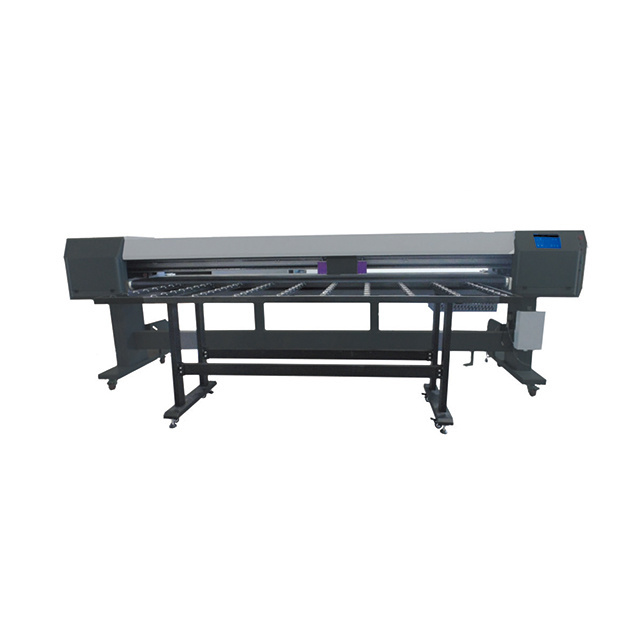

roll to roll and uv led flatbed printer
1.Teach data
|
Printing head |
epsonI3200/Epson dx5/ XP600/Ricoh G5/G6 |
Max. printing size |
130in(3.3.m)* no limitted |
|
Max. Resolution |
1440 * 2160 |
Media thickness |
2. 2 in( 55 mm) |
|
Printing speed |
Quality -mode Speed (sq.m/H):40 Standard Speed (sq.m/H):60 Max.Dpi Speed( sq.m/H):30 |
Dimension |
228in*45in*75in(L*W*H) 95.8*1.10*1.90m) |
|
No.of Printheades |
4/5/6/7/8,depending on your printing demand |
Printing Media |
All roll to roll materials All flat media such a Glass,Steel,Acrylic,PlexiglassDilond, Gatofoam,PVC,Kapabloc,Wood ,etc. |
|
Colors |
Based on CMYK ,Lclm,White or Varish added autonomously |
Printheads |
Industrial piezoelectrial printheads |
|
Teach of printheads’ temperature&voltage |
Software controls them automatically, triple protection |
Color Management |
ICC based colorcurves and density adjustment |
|
Net Weight |
5733lbs(2600kgs) |
Inference |
High speed PCLE+Optical fiber |
|
Electrial Requirement |
208-230VAC,50/60Hz, Max.30Amps |
Vacuum Adsorption |
Whole one vacuum or vacuum zone |
|
Computer system |
Vin2000,Win XP,Win7 |
Suitable environment |
Temperature:20-27℃, Humidity:40%-70%, flat ground,less dust |
|
Consumables |
Imported UV Ink |
Ink curing |
Dual mercury imported UV Lamp |
|
|
Innovative operation and Rip software,Verified more than years,Support Seeget, Caldera,Photoprint,ONYX,etc. |
Accepted File Formats |
ALL Popular desktop files formats, including PEG,AL,EPS,PDF,TIFF,SVG,etc |
|
Control Software |
2.Features
1. Loading and unloading-assisted system for easy overweight on board and unloading of materials,
2. The industry first white ink circulation tank to prevent printhead clogging and create brighter white color.
3. Negative pressure backup system to prevent waste of ink when power outage,
4. Automatic media height sensor ,Multiple zoned flatbed table for precise vacuum control,
5. Blower can operate in vacuun hold down or reverse flow to facilitate material handing.
3.Advantages
1.) The most reasonable mechanical structure in the printing industrial,Industry first flatbed table,tolerance less than 0.15mm for highest quality output,More than 10 years R&D experience for Konica and Spectra series print heads.
2.) The best controlling technology of print heads voltage and ink temperature.
3.) The most simple and useful own-designed operating system.Most professional ICC color management,using best imported UV ink,
4.) The industry-leading white-color-printing arbitrarily.
5.) Higher precision,faster speed for the same print heads in printing industry,Most stable operation,lower failure rate,easy maintenance.
4. Benefits:
Our UV flatbed Printer is widely used in Below industries:
Decoration Industry, Glass Process Industry, Furniture Door, Signs Marking Industry, Exhibition Industry, Hard Board Package Industry, Leather & Textile Industry etc.
5.Evidence:
1.Printed Photo:
|
Plastic |
metal |
Glass |
stone |
|
|
|
|
|
2. CE Certification
3. Show :
Shipping Mode:
Our Services
Pre-sale service:
You can tell us your requirements, our professional sales staff will recommend you more suitable machines or solutions according to your requirements, which enable you to get the best effect from minimum input.
In sale Customer Service:
1.We also have customer service to support you once you place the order.
2.Any questions or requests can be reachable for you by mail,online message or phone.
After-sales Technical Support Service:
1.One year warranty for printer(not including printhead and consumables parts).
2.Technical service all life time.
3.By Skype, phone, whatsapp, mail trough video, photo with illustration to provide solutions.
4.Our tech team at your side when you are in need of help in the first time.
Other Special Services:
If you have any questions or suggestions for our work and products, please contact us , we’ll reply you promptly. All are just for creating more value for you.
1.How many for ink consumption?
10-15mlmt
2.What’s white ripsoftware?
Partner ripsoftware 8.0 version
3.How much cost for per sqmt?
around 0.89USD/smqt
Why Us?
2.High quality and service(pre sales service, in-sale customer service, after-sales technical support service, and other special service you need)
3.More than 10 years industry experience
4.Wide range spec product for your detailed requirement.
5.High quality and coherence in design, technology and product development are the components from Oasis, upon which you can place your trust!
6.Your requirements, what we concern!
