Quick Details
-
Brand Name:
-
XIAOWEI
-
Weight:
-
75 KG
-
Rolling press width:
-
100/200/300mm.can be customized
-
Rolling press speed:
-
0-10mm/sec
-
Adjustable gap:
-
0-3mm
-
Rolling press temperature:
-
0-200℃
-
Voltage:
-
110V /220V AC, 50/60Hz
-
Power:
-
2000W
-
Roll Diameter:
-
96mm
-
Hardness:
-
HRC62
-
Rolling Thickness:
-
0~2mm, clearance can be adjusted
Quick Details
-
Condition:
-
New
-
Color & Page:
-
Multicolor
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
XIAOWEI
-
Weight:
-
75 KG
-
Rolling press width:
-
100/200/300mm.can be customized
-
Rolling press speed:
-
0-10mm/sec
-
Adjustable gap:
-
0-3mm
-
Rolling press temperature:
-
0-200℃
-
Voltage:
-
110V /220V AC, 50/60Hz
-
Power:
-
2000W
-
Roll Diameter:
-
96mm
-
Hardness:
-
HRC62
-
Rolling Thickness:
-
0~2mm, clearance can be adjusted
H

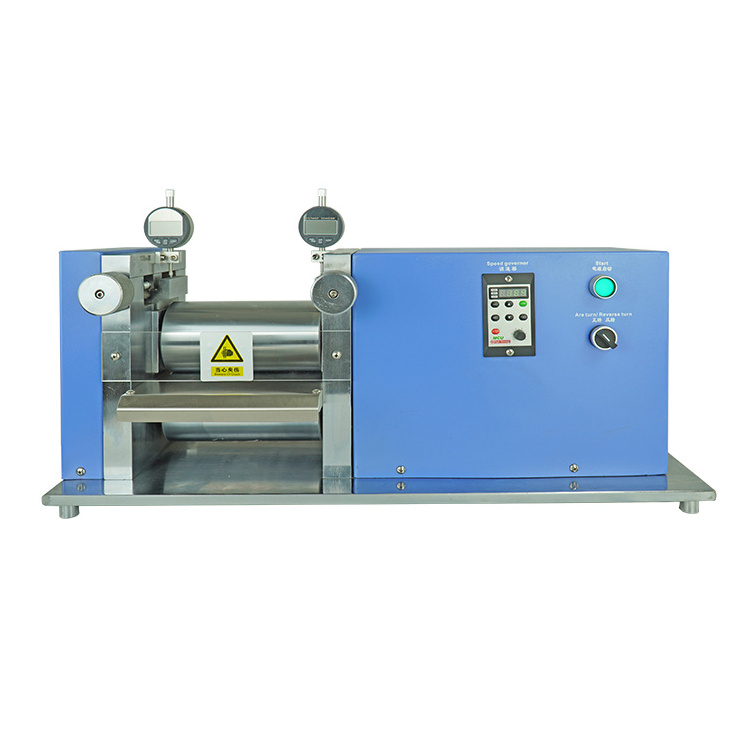

eat Press Machine for Lithium Battery Research
XW-GYJ Rolling Press Machine. It has dual rollers and dual grade micrometer. This lab roll press machine is an ideal rolling press for adjusting thickness and increasing active material density of the electrode in Li-Ion batteries research after coating and drying. This machine is a compact hot rolling press machine mainly serves for pressing samples in the lab or other applications in the material research especially for increasing active material density of the electrode in Li-Ion batteries research after coating. This Lab roll press machine is mainly used in the laboratory lithium battery materials, small amount of precious metals such as gold and silver materials, copper, aluminum and other non-ferrous metal materials manually suppressed.
Rolling Press Machine
|
No
|
Item
|
XW-GYJ100/200/300
|
|
|
|
|||
|
1
|
Voltage
|
110V - 220V AC, 50/60Hz
|
|
|
|
|||
|
2
|
Roller
|
1. Dimensions: 96 mm(Dia.)*100/200/300 mm(W)
2. Material: ceramic coated on hardened tool steel with HRC > 62, which have much
hard than Cr plated roller and provides better surface roughness.
3. Ceramic coating material: 97% is chromic oxide; 3% is
aluminum oxide, calcium oxide and magnesium oxide
4. High resistance to corrosion, acid and alkalinity, and reduce metallic
contamination
|
|
|
|
|||
|
3
|
Structure
|
1. Heavy duty steel frame, gears and handle
2. φ96 mm Rollers made from hardened tool steel (HRC>62) with Cr electroplated coating
3. Dual micrometer for accurate thickness adjustment in the range 0~2 mm maximum.
|
|
|
|
|||
|
4
|
Rolling Press Accuracy
|
≤±0.005 mm
|
|
|
|
|||
|
5
|
Rolling Press Thickness
|
0~2 mm adjusted with dial gauge
|
|
|
|
|||
|
6
|
Cylindrical Degree
|
≤±2um
|
|
|
|
|||
|
7
|
Rolling Press Width
|
0~300mm, can be customized
|
|
|
|
|||
|
8
|
Rolling Speed
|
0~40mm/s, can be adjusted
|
|
|
|
|||
|
9
|
Rolling Temperature
|
0~200℃, temperature can be adjusted, digital display
|
|
|
|
|||
|
10
|
Dimensions(L*W*H)
|
385 *245 *355 mm
|
|
|
|
|||
|
11
|
Weight
|
55KG
|
|
|
|
|||
|
12
|
Standard Configuration
|
An Allen wrench, two dial indicator, one feeler
|
|
|
|
|||
|
13
|
Application Notes
|
The XW-GYJ roller is specially designed for battery R&D in terms of its advantages as affordable, compact and precise.
1. Must use
acetone to clean and dry rollers' surfaces after each use to avoid rusting. 2. Apply anti-rust lubricant on roller surface if
machine were to be unused for a long period of time.
3. The minimum thickness of the rolled sheet should depend on the physical
property of the materials. Here are some results from our test:
|
|
|
|
|||
|
|
|
Electrode
|
Size W*L
|
Original thickness
|
Finished thickness
|
|||
|
|
|
LiFePO4 double sides
|
50*260mm
|
0.205mm
|
0.07mm
|
|||
|
|
|
LiMn2O4 double sides
|
50*260mm
|
0.205mm
|
0.07mm
|
|||
|
|
|
Copper foil + graphite (single side)
|
75*240mm
|
0.09mm
|
0.04mm
|
|||
Features
1.Hot rolling, thermostat control temperature, digital display.
2.Can choose working with or without heating.
3.Roll made from hardened tool steel (HRC≥62) with Cr electroplated coating.
4.Using inclined block adjustment tableting clearance, the self-locking is good, high precision of adjustment.
5.High precision rolling roller, cylindrical degree ≤±2um.
6.The gear rotation of roller press.
7.The thickness of the tablets and the speed can be adjusted. Beautiful appearance.
8.Automatic electric rolling, reversing operation. 9.Small size, easy to operate, flexible and efficient.
XIAOWEI after-sales service policy
1. One year guarantee, one Year spare parts free if the machine parts damage, whole life technician support.
2. With professional engineers, you can go to the world for on-site mechanical maintenance
3. Operation Manual, Operation or repair Video,
4. 24-hours Email technical support, we will do our best to help the clients solve any question or problems.
5. Available to send our engineer to clients factory, to install the machines, train the workers, repair the machines.
3. Operation Manual, Operation or repair Video,
4. 24-hours Email technical support, we will do our best to help the clients solve any question or problems.
5. Available to send our engineer to clients factory, to install the machines, train the workers, repair the machines.
