Quick Details
-
Model Number:
-
IRS2092S
-
Place of Origin:
-
Guangdong, China
-
color:
-
Quick Details
-
Type:
-
Mini Amplifier
-
Channels:
-
5 (4.1)
-
Brand Name:
-
Smart
-
Model Number:
-
IRS2092S
-
Place of Origin:
-
Guangdong, China
-
color:
-

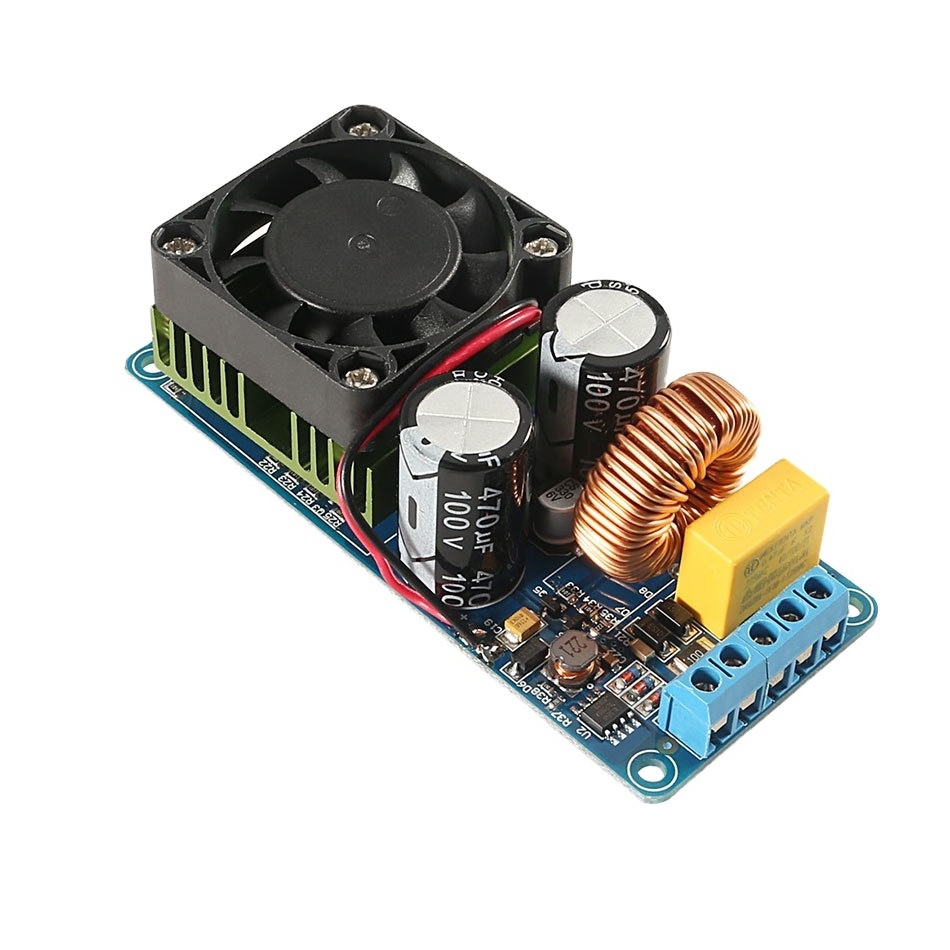

Product Description
|
Original chip
|
IRS2092S
|
|
Ultra high power output
|
500W
|
|
Multiple protections
|
short circuit, overheating, horn protection
|
1. Power supply: dual DC power supply ± 58 --- ± 70V
2. The rated output power: 500W (± 65V power supply, 4 ohm load, distortion 10%)
3. Efficiency:> = 90%
4. SNR: 90dB
5. The total harmonic distortion:
380W (± 65 power 4 ohm speaker, distortion <0.1%)
280W (± 65 power 8 ohm speaker, distortion <0.1%)
6. Frequency range: 20Hz-20KHz
7. Speaker: 4-8Ω
8. Voltage Magnification: 36 times
9. Input sensitivity 1.5V (RMS)
10. Output short circuit protection: Yes
11. That output DC bias protection speaker protection: Yes
12. Over-temperature protection: Yes, radiator FET temperature higher than 100 ° C, turn off the output!
13. Amplifier board size: length x width x height = 98x43x30mm
Use precautions:
1. Rated supply voltage is ±65V, ±58---±70V range, do not over 70V! positive and negative do not pick wrong
2. Recommended power supply ±65V
3. Recommended 4-8Ω / 10-18inch speaker
4. Carefully check before electricity, ensure the wiring is correct.
