Quick Details
-
Product name:
-
H44H-40C
-
Design and manufacture standard:
-
GB/T 12236-2008
-
Structure length standard:
-
GB/T 12221-2005
-
Connection flange standard:
-
GB/T 9113
-
Pressure temperature grade:
-
GB/T 12224-2005
-
Test inspection standard:
-
GB/T 13927-2008
Quick Details
-
Port Size:
-
DN50~DN350
-
Place of Origin:
-
Shanghai, China
-
Model Number:
-
H44H-40C
-
Product name:
-
H44H-40C
-
Design and manufacture standard:
-
GB/T 12236-2008
-
Structure length standard:
-
GB/T 12221-2005
-
Connection flange standard:
-
GB/T 9113
-
Pressure temperature grade:
-
GB/T 12224-2005
-
Test inspection standard:
-
GB/T 13927-2008
Why Choose Us
Accept customization
1, material customization
2, size customization
3, color customization
4, Pressure customization
5, logo customizationPlease tell
our customer service about your needs, and we will give you a suitable quotation as soon as possible according to your needs! thank you
3, color customization
4, Pressure customization
5, logo customizationPlease tell
our customer service about your needs, and we will give you a suitable quotation as soon as possible according to your needs! thank you
Our company participates in large-scale urban construction projects in China.
1、Project of China Railway
2、Project of GREENTOWN CHINA HOLDINGS LTD.
3、Project of Hangzhou asian games village
4、Project of Shenzhen Fangda Plaza
4、Project of Shenzhen Fangda Plaza
Product Description

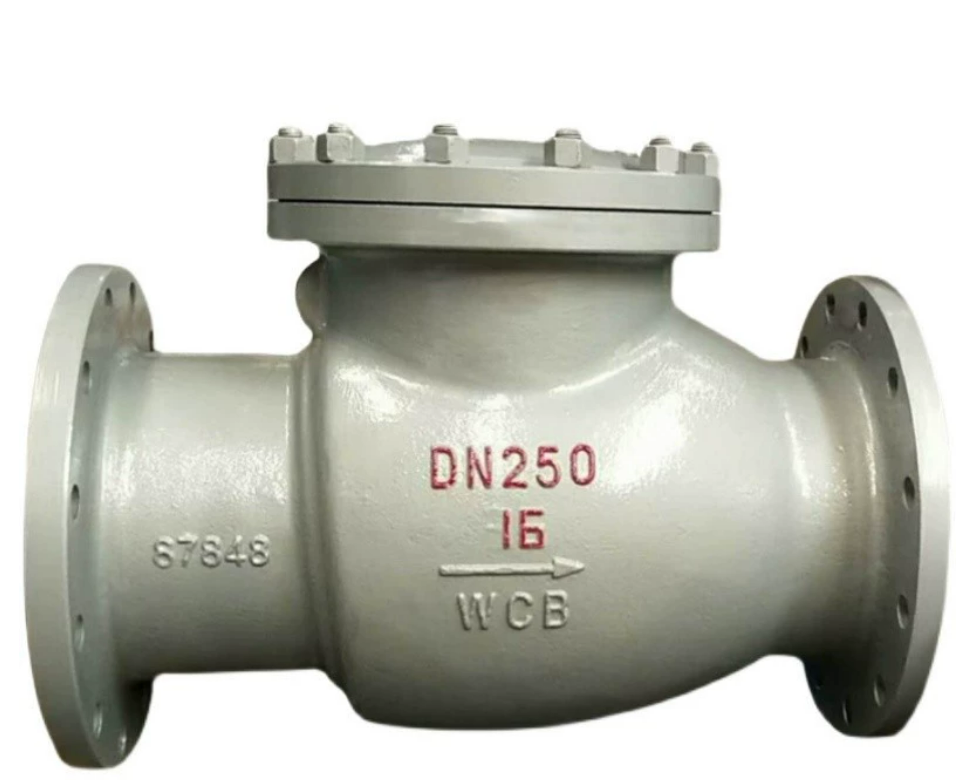

H44H-40C Flanged Swing Check Valve refers to a valve whose opening and closing parts are circular discs and act by its own weight and medium pressure to block the backflow of the medium. It is an automatic valve, also known as a check valve, a one-way valve, a return valve or an isolation valve.
The movement mode of the valve disc is divided into lift type and swing type. The lift check valve is similar in structure to the globe valve, except that it lacks the valve stem that drives the valve disc. The medium flows in from the inlet end (lower side) and flows out from the outlet end (upper side). When the inlet pressure is greater than the sum of the weight of the disc and its flow resistance, the valve is opened.
Conversely, the valve H44H-40C is closed when the medium flows back.
The swing check valve has a disc that is inclined and can rotate around the axis, and the working principle is similar to that of the lift check valve. The check valve is often used as the bottom valve of the pumping device, which can prevent the backflow of water. The check valve is used in combination with the globe valve, which can play the role of safety isolation.
Main features
1.The middle port of the valve adopts a pressure self-tightening sealing structure. The higher the medium pressure, the better the sealing performance;
2.The sealing surface is made of surfacing stellite cobalt-based cemented carbide, which has high hardness, corrosion resistance, cavitation resistance, excellent anti-scratch performance, and long service life of the valve;
3.The H44H-16CFlanged Swing Check Valveis a straight-through type, and the medium flow resistance is small;
4.The opening and closing of the valve is realized by the force of the medium, and it is automatically and quickly closed when the medium returns;
5.Maintenance and repair are convenient and fast.
2.The sealing surface is made of surfacing stellite cobalt-based cemented carbide, which has high hardness, corrosion resistance, cavitation resistance, excellent anti-scratch performance, and long service life of the valve;
3.The H44H-16CFlanged Swing Check Valveis a straight-through type, and the medium flow resistance is small;
4.The opening and closing of the valve is realized by the force of the medium, and it is automatically and quickly closed when the medium returns;
5.Maintenance and repair are convenient and fast.
Relevant implementation standards
Design and manufacture standard: GB/T 12236-2008
Structure length standard: GB/T 12221-2005
Connection flange standard: GB/T 9113
Pressure temperature grade: GB/T 12224-2005
Test inspection standard: GB/T 13927-2008
Structure length standard: GB/T 12221-2005
Connection flange standard: GB/T 9113
Pressure temperature grade: GB/T 12224-2005
Test inspection standard: GB/T 13927-2008
|
item
|
value
|
|
Application
|
General
|
|
Port Size
|
DN50~DN350
|
|
Warranty
|
3 years
|
|
Place of Origin
|
China
|
|
|
Shanghai
|
|
Model Number
|
H44H-40C
|
|
Power
|
Hydraulic
|
|
Temperature of Media
|
High Temperature, Low Temperature, Medium Temperature, Normal Temperature
|
|
Brand Name
|
|
|
Structure
|
Check
|
|
Media
|
Water
|
|
Customized support
|
OEM, ODM, OBM, Software reengineering
|
|
Product name
|
H44H-40C
|
|
Design and manufacture standard
|
GB/T 12236-2008
|
|
Structure length standard
|
GB/T 12221-2005
|
|
Connection flange standard
|
GB/T 9113
|
|
Pressure temperature grade
|
GB/T 12224-2005
|
|
Test inspection standard
|
GB/T 13927-2008
|
Main parts and materials
|
Part names
|
Valve body, Rocker
|
Disc, Nut
|
Cover
|
Pin shaft, Four open loops
|
Bolt
|
Sealing surface
|
|
H44H-40C
|
Carbon cast steel
|
Cast steel
|
Carbon cast steel
|
Stainless steel
|
Chrome-molybdenum steel
|
PTFE
|
Main structure and connection dimensions
