Quick Details
-
Model:
-
South NTS-332R10
-
Product name:
-

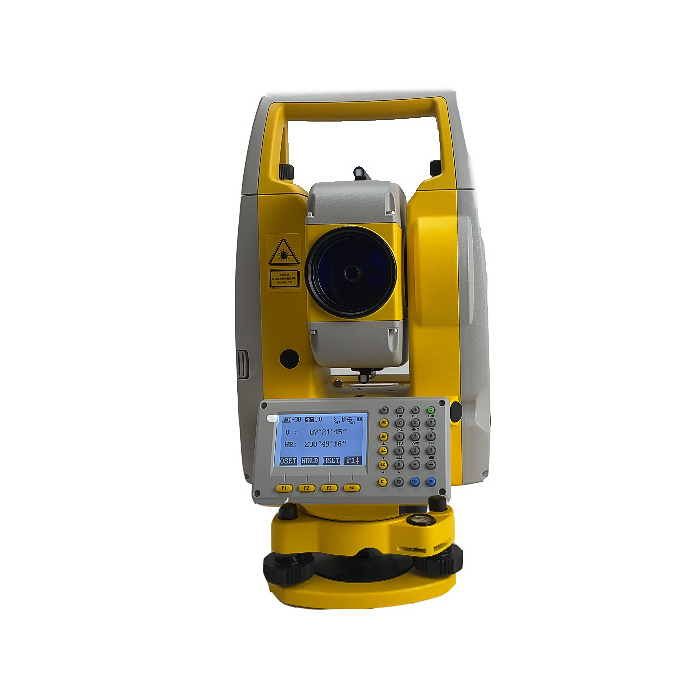

Total Station
-
Reflectorless:
-
1000m
-
Accuracy:
-
2
-
Single Prism:
-
5000m
-
Accuracy: Nan Prism:
-
3+2ppm
-
Disk Diameter:
-
79mm
-
Weight:
-
6kg
-
Color:
-
Yellow
-
Quality:
-
High-quality
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
South
-
Model Number:
-
South NTS-332R10
-
Model:
-
South NTS-332R10
-
Product name:
-
Total Station
-
Reflectorless:
-
1000m
-
Accuracy:
-
2
-
Single Prism:
-
5000m
-
Accuracy: Nan Prism:
-
3+2ppm
-
Disk Diameter:
-
79mm
-
Weight:
-
6kg
-
Color:
-
Yellow
-
Quality:
-
High-quality
certificate
|
Distance Measurement
|
Reflectorless
|
1000m
|
|
|
|
Single Prism
|
5000m
|
|
|
|
Accuracy: Non Prism
|
3+2ppm
|
|
|
|
Accuracy: Prism
|
2+2ppm
|
|
|
|
Sheet
|
3+2ppm
|
|
|
|
Measurement Time
|
1.2s in fine
0.2s in tracking |
|
|
|
Atmospheric Correction
|
Manual input, Auto correction
|
|
|
|
Prism Constant
|
Manual input, Auto correction
|
|
|
|
Temperature Correction
|
Manual input, Auto correction
|
|
|
|
Distance Reading
|
Max: 99999999.999 Min: 1mm
|
|
|
Angle Measurement
|
Accuracy
|
2"
|
|
|
|
Method
|
Absolute, continuous
|
|
|
|
Disk Diameter
|
79mm
|
|
|
|
Detection Method
|
V: Dual, H: Dual
|
|
|
|
Angle Reading
|
Min: 1"
|
|
|
Telescope
|
|
Erect
|
|
|
|
Tube Length
|
152mm
|
|
|
|
Effective Aperture
|
45mm (EDM 47mm)
|
|
|
|
Magnification
|
30x
|
|
|
|
Field Of View
|
1°30'
|
|
|
|
Resolving Power
|
3"
|
|
|
|
Minimum Focus Distance
|
1.5m
|
|
|
|
Muitiple/Additive Constant
|
100/0
|
|
|
Keyboard And Display
|
Keyboard
|
Alphanumeric 28 Keys
|
|
|
|
Display
|
2.7 inches Black & White LCD
|
|
|
|
Resolution
|
160*96 dpi
|
|
|
|
Position
|
Face 1, Face 2
|
|
|
Operation System
|
Memory
|
16000 points
|
|
|
Compensator
|
System
|
Liquid, Dual axis
|
|
|
|
Working Range
|
±6'
|
|
|
|
Accuracy
|
1"
|
|
|
Plummet
|
Laser Plummet (Default)
|
|
|
|
|
Accuracy
|
±1.5mm @1.5m
|
|
|
|
Laser Brightness
|
5 levels adjustable
|
|
|
|
Wavelength
|
635nm
|
|
|
|
Laser Class
|
Class 2
|
|
|
|
Laser Power
|
0.5mW
|
|
|
|
Optical Plummet (Optional)
|
|
|
|
|
|
Erect
|
|
|
|
Magnification
|
3x
|
|
|
|
Focusing Range
|
0.5m ~ ∞
|
|
|
|
Field Of View
|
5"
|
|
|
Keyboard And Display
|
Keyboard
|
Alphanumeric 28 Keys
|
|
|
|
Display
|
2.7 inches Black & White LCD
|
|
|
|
Resolution
|
160*96 dp
|
|
|
|
Position
|
Face 1, Face 2
|
|
|
Interface
|
Data Interface
|
USB Flash Disk
|
|
|
Battery
|
Type
|
Lithium
|
|
|
|
Voltage
|
7.4V
|
|
|
|
Operating time
|
8 hours
|
|
|
Vial
|
Plate Vial
|
30" /2mm
|
|
|
|
Circular Vial
|
8' /2mm
|
|
|
General
|
IP Rate
|
IP54
|
|
|
|
Temperature Range
|
-20°C -- +50°C
|
|
|
|
Dimension
|
206*200*353mm
|
|
|
|
Weight
|
6.0kg
|
|
Details Images详图
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
