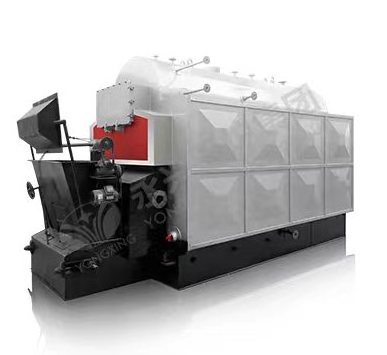

DZL biomass boiler is a single-drum vertical
biomass boiler.DZL series quick-installed chain grate biomass boilers are single-drum vertical chain grate boilers. It is suitable for burning briquette biomass fuel, but also pure coal or mixed coal and briquette biomass fuel. There is an economizer at the rear. The
excluded ash and slag can be directly used as farmyard manure, which is a high-efficiency, energy-saving and environmentally
friendly product.
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
Yongxing
-
Dimension(L*W*H):
-
Depends on Boiler Capacity
-
Weight:
-
Depends on Boiler Capacity
-
Keywords:
-
Dzl Chain Grate Steam Boiler
-
Application:
-
Heat Suppling
-
Medium:
-
Clean Water
-
Application Field:
-
Industrail
-
Thermal efficiency:
-
82%
-
Working pressure:
-
0.4/0.7 MPa
-
Steam Capacity:
-
0.5t/h~30t/h
-
Boiler Structure:
-
Horizontal Three Return Fire Tube Boiler
-
Control system:
-
Automatic Control System
Quick Details
-
Core Components:
-
Boiler main body
-
Steam Production:
-
1-40 ton
-
Place of Origin:
-
China
-
Brand Name:
-
Yongxing
-
Dimension(L*W*H):
-
Depends on Boiler Capacity
-
Weight:
-
Depends on Boiler Capacity
-
Keywords:
-
Dzl Chain Grate Steam Boiler
-
Application:
-
Heat Suppling
-
Medium:
-
Clean Water
-
Application Field:
-
Industrail
-
Thermal efficiency:
-
82%
-
Working pressure:
-
0.4/0.7 MPa
-
Steam Capacity:
-
0.5t/h~30t/h
-
Boiler Structure:
-
Horizontal Three Return Fire Tube Boiler
-
Control system:
-
Automatic Control System
Products Description
Coal Wood Biomass Fired Steam Boiler
Equipped with a blower and induced draft fan for mechanical ventilation, and equipped with a screw slag extractor to achieve mechanical slag extraction, complete control and monitoring instruments, and safe and reliable boiler
operation.
This type of boiler uses biomass pellets processed from crop wastes such as straw, sawdust, peanut shells, etc. as fuel. The new furnace design is used to maximize the combustion of fuel. The thermal efficiency of the boiler reaches 82.6%. The waste is used as suitable fuel, and the ash after combustion can also be used as farmyard manure. It is an environmentally friendly product withhigh efficiency and energy saving.
operation.
This type of boiler uses biomass pellets processed from crop wastes such as straw, sawdust, peanut shells, etc. as fuel. The new furnace design is used to maximize the combustion of fuel. The thermal efficiency of the boiler reaches 82.6%. The waste is used as suitable fuel, and the ash after combustion can also be used as farmyard manure. It is an environmentally friendly product withhigh efficiency and energy saving.
Product Paramenters
|
Boiler model |
Rated
capacity |
Rated
pressure |
Rated
tempe- |
Exhaust
tempe- |
Boiler
efficiency |
Fuel
comsum- |
Design
weight |
Design
dimension |
|
|
|
|
|
|
|
|
|
|
|
|
ton/h
|
Mpa
|
℃
|
℃
|
%
|
kg
|
ton
|
mm
|
|
DZL1
|
1
|
1.25/1.6/2.5/3.82 |
194/204226/450 |
109
|
>82 |
187
|
15.2
|
5230*2000*2780
|
|
DZL2
|
2
|
|
|
131
|
|
375
|
23.8
|
5950*2400*3150
|
|
DZL4
|
4
|
|
|
140
|
|
758
|
27
|
6829*2620*3524
|
|
DZL6
|
6
|
|
|
139
|
|
1125
|
40
|
8170*3180*3804
|
|
DZL8
|
8
|
|
|
138
|
|
1508
|
45
|
8130*3300*3950
|
|
SZL10
|
10
|
|
|
153
|
|
2150
|
24
|
7645*3180*3526
|
|
SZL12
|
12
|
|
|
149
|
|
2400
|
24.3
|
9258*3294*3524
|
|
SZL15
|
15
|
|
|
150
|
|
2568
|
24.7
|
11010*3300*2200
|
|
SZL20
|
20
|
|
|
148
|
|
4267
|
26
|
16680*6200*8420
|
|
SZL25
|
25
|
|
|
151
|
|
4675
|
26.5
|
17550*7300*8900
|
|
SZL30
|
30
|
|
|
147
|
|
5610
|
27
|
18230*7600*9200
|
|
SZL40
|
40
|
|
|
152
|
|
7450
|
27.8
|
18750*8500*9600
|
Details Images
Perormance Characteristics -- Coal Wood Biomass Fired Steam Boiler
*
Using threaded smoke pipe for heat transfer, which improves thermal efficiency and reduces energy consumption
* The application of membrane water wall structure improves the heat transfer coefficient and heat transfer effect and reduces heat loss
* The threaded smoke pipe is set in the pot shell, the overall air leakage is small, and the heat loss of exhaust smoke is small
* The welds of the boiler adopt advanced submerged arc automatic welding process to ensure the welding quality
Dust collector is arranged in the tail flue to ensure that the smoke and dust discharge meets environmental protection
requirements
* High level of automation, with automatic water adjustment, low water level interlock protection, high and low water level alarm and other functions
* Advanced arch design, forming an obvious inverted "α" flame, which is beneficial to the combustion of inferior coal and has strong adaptability to coal types
* Complete control and monitoring instruments, boiler operation is safe and reliable
* The setting of the two-wing flue allows the flue gas to enter the front smoke box smoothly, so that the temperature of the previous tube sheet is the same, and avoids cracks in the tube sheet due to temperature stress
* The grate adopts a new type of small scale grate, which adds a unique safety ring, which makes the grate run stably and
reliably, and improves the combustion efficiency
* The application of membrane water wall structure improves the heat transfer coefficient and heat transfer effect and reduces heat loss
* The threaded smoke pipe is set in the pot shell, the overall air leakage is small, and the heat loss of exhaust smoke is small
* The welds of the boiler adopt advanced submerged arc automatic welding process to ensure the welding quality
Dust collector is arranged in the tail flue to ensure that the smoke and dust discharge meets environmental protection
requirements
* High level of automation, with automatic water adjustment, low water level interlock protection, high and low water level alarm and other functions
* Advanced arch design, forming an obvious inverted "α" flame, which is beneficial to the combustion of inferior coal and has strong adaptability to coal types
* Complete control and monitoring instruments, boiler operation is safe and reliable
* The setting of the two-wing flue allows the flue gas to enter the front smoke box smoothly, so that the temperature of the previous tube sheet is the same, and avoids cracks in the tube sheet due to temperature stress
* The grate adopts a new type of small scale grate, which adds a unique safety ring, which makes the grate run stably and
reliably, and improves the combustion efficiency
