- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
MILES
-
Voltage:
-
220/110V, 220V
-
Weight:
-
90 kg, 90kg
-
item:
-
value
-
Model:
-
MT-400G
-
Max cutting width:
-
400mm
-
Cutting speed:
-
30-120 pcs/min
-
Cutting precision:
-
0.1mm
-
Dimension(L*W*H):
-
82*64*58cm
-
Power:
-
680W
-
Keyword:
-
roll to sheet cutting machine
Quick Details
-
Type:
-
Paper Cutting Machine
-
Production Capacity:
-
180 m/min
-
Max. workable width:
-
400mm
-
Place of Origin:
-
China
-
Brand Name:
-
MILES
-
Voltage:
-
220/110V, 220V
-
Weight:
-
90 kg, 90kg
-
item:
-
value
-
Model:
-
MT-400G
-
Max cutting width:
-
400mm
-
Cutting speed:
-
30-120 pcs/min
-
Cutting precision:
-
0.1mm
-
Dimension(L*W*H):
-
82*64*58cm
-
Power:
-
680W
-
Keyword:
-
roll to sheet cutting machine
Video Description
Product Description
Scope:

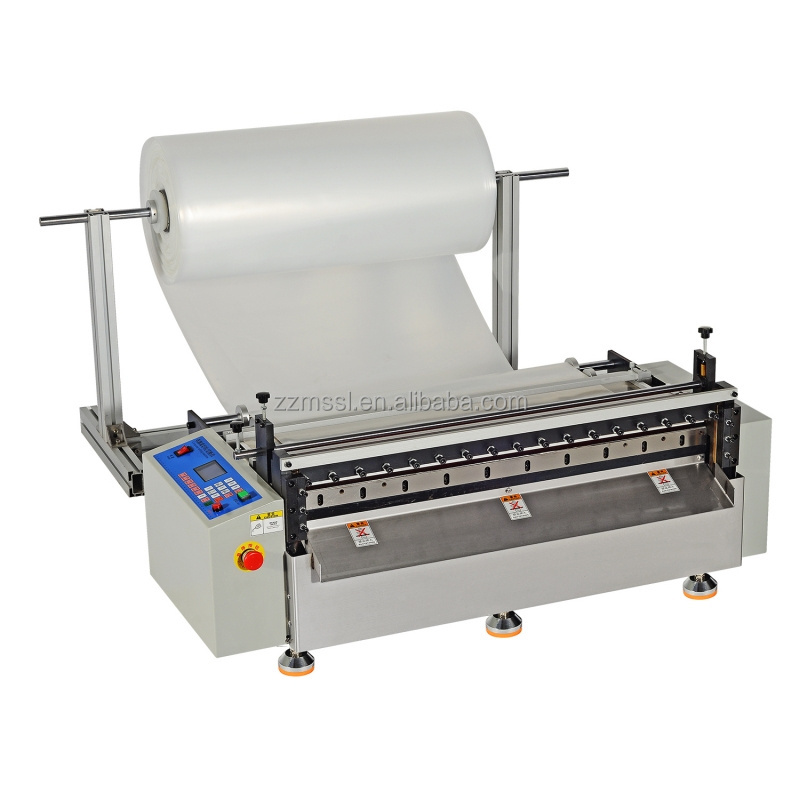

The cutting machine is designed for cutting almost all kinds of roll materials into sheet or pieces, such as pvc , copper foil, cloth, Non-woven fabric, Barley paper, Battery separator, aluminum foil, Non-woven fabric, Fast bar paper, PE membrane, Nickel foil, Conductive , Septum, Off type paper, Plastic sheet, Insulating paper, Reflection film, Mica film etc.
Feature:
1. Simple operation panel
Simple panel, simple operation, Chinese and English switching, LCD screen
2. High-strength high-performance steel knife
The special mechanical structure and thickened knives are equipped with special software control to solve the problem of uneven s urface cut of other manufacturers. Achieve the flat section of the cut, the length is accurate
4. Rugged guide strip
High-strength guide strips are not easy to wear, and colleagues can cut multiple materials, double the efficiency and save labor. Paper Non Woven Cloth Plastic Film Cross Cutting Roll To Sheet Cutter Machine For Roll Film Cutter
Simple panel, simple operation, Chinese and English switching, LCD screen
2. High-strength high-performance steel knife
The special mechanical structure and thickened knives are equipped with special software control to solve the problem of uneven s urface cut of other manufacturers. Achieve the flat section of the cut, the length is accurate
3. Multi-function button
Operating system, new upgrade of the operation panel! Feeding speed adjustable, total technology, segmented batch setting. Paper Non Woven Cloth Plastic Film Cross Cutting Roll To Sheet Cutter Machine For Roll Film Cutter
Operating system, new upgrade of the operation panel! Feeding speed adjustable, total technology, segmented batch setting. Paper Non Woven Cloth Plastic Film Cross Cutting Roll To Sheet Cutter Machine For Roll Film Cutter
4. Rugged guide strip
High-strength guide strips are not easy to wear, and colleagues can cut multiple materials, double the efficiency and save labor. Paper Non Woven Cloth Plastic Film Cross Cutting Roll To Sheet Cutter Machine For Roll Film Cutter
Specification
|
Model
|
MT-300G/400G/500G/600G/800G/1000G/1200G/1300G/1500G/1600G/1800G/2100G
|
|
Max cutting width
|
300/400/500/600/800/1000/1200/1300/1500/1600/1800/2100mm
|
|
Cutting length
|
1-9999mm adjustable
|
|
Cutting precision
|
0.1mm
|
|
Cutting speed
|
30-120 pcs/min
|
|
Voltage
|
220V/110V,50/60hz, Ac
|
|
Language
|
Chinese and English (Spanish is Optional)
|
|
Package
|
Wooden case/Carton
|
|
Optional
|
Electronic eye, Knife slitting group, Round blades slitting group, Spring.Static Eliminator
|
Details Images
Chinese and English operating system:
LCD large screen display, simple panel, simple operation. One-key switch between Chinese and English. The length, speed, total volume, batch, and pause time can be set
arbitrarily.
arbitrarily.
Using high-quality high-speed steel knife：
the blade is sharp, durable, and ensures that the cut surface is smooth and free of burrs.
Feeding rubber roller: wear-resistant, pressure-resistant and high-temperature resistant.
Round Slitting Blades Group
It is for some paper,PVC film, PU leather, wallpaper, felt,aluminum foil, kraft paper, canvas and so on.
Spring Device
Plastic and Metal Spring is optional. Flatten and straighten the material.
Prevent wrinkles and cutting precision.
Prevent wrinkles and cutting precision.
Optional: Round Blades Slitting Group,Electric Eye,Spring,Etc
Round Slitting Blades Group
It is for some paper,PVC film, PU leather, wallpaper, felt,aluminum foil, kraft paper, canvas and so on.
Round Slitting Blades Group
3 pieces/Group or more.It is optional.Powerful, durable, easy to adjust and operate.
Matsushita Electronic Eye
Fully automatic location tracking.Positioning and cutting, higher accuracy.
Matsushita Electronic Eye
Printed eva soft film, Adhesive sticker, Tablecloth Insulation paper wallpaper, Heat transfer film, etc.
Equips With The Stacking Table
The stacking table can collect the pieces/sheet of paper/non woven fabric/canvas, PU artificial leather, wallpaper, aluminum foil,
etc. Loading is up to 50 kg.The position of the baffle can be adjusted.
etc. Loading is up to 50 kg.The position of the baffle can be adjusted.
Automatic Feeding System
Tension System, SensorHigh-sensitivity photoelectric sensor cooperates with motor to automatically sense pre-feeding material.
Speed controller. Adjust the speed at any time.
Speed controller. Adjust the speed at any time.
