Quick Details
-
Range of Spindle Speed(r.p.m):
-
0 - 500 r.p.m
-
Place of Origin:
-
Henan
-
Brand Name:
-
WKS
-
Voltage:
-
220v or 380v
-
Dimension(L*W*H):
-
700*500*1100 mm
-
Weight (KG):
-
300 KG
-
Marketing Type:
-
New Product
-
Product name:
-
Food spice coarse crusher
-
Keywords:
-
Food spice coarse crusher
-
Feature:
-
High Efficiency Easy Operation
-
After-sales Service Provided:
-
Video Technical Support
-
Advantage:
-
Easy Operation High Efficiency
-
MOQ:
-
1 Set
-
Usage:
-
Food spice
-
Color:
-
Silver
-
Function:
-
Coarse crusher
-
Package:
-
Wooden Case
Quick Details
-
Output (kg/h):
-
50 - 400 kg/h
-
Feeding Size (mm):
-
0 - 300 mm
-
Power (kW):
-
4
-
Range of Spindle Speed(r.p.m):
-
0 - 500 r.p.m
-
Place of Origin:
-
Henan
-
Brand Name:
-
WKS
-
Voltage:
-
220v or 380v
-
Dimension(L*W*H):
-
700*500*1100 mm
-
Weight (KG):
-
300 KG
-
Marketing Type:
-
New Product
-
Product name:
-
Food spice coarse crusher
-
Keywords:
-
Food spice coarse crusher
-
Feature:
-
High Efficiency Easy Operation
-
After-sales Service Provided:
-
Video Technical Support
-
Advantage:
-
Easy Operation High Efficiency
-
MOQ:
-
1 Set
-
Usage:
-
Food spice
-
Color:
-
Silver
-
Function:
-
Coarse crusher
-
Package:
-
Wooden Case
Products Description

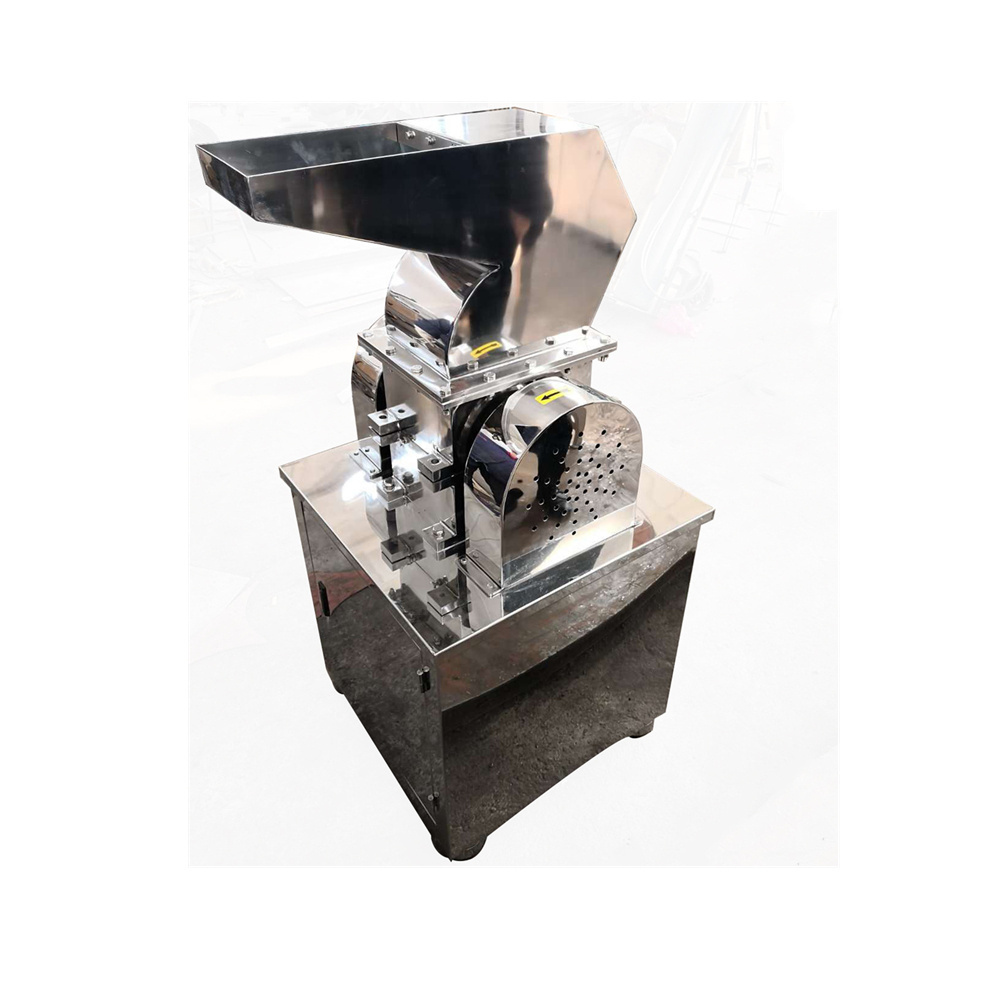

Coarse crusher without bracket
Coarse crusher with bracke
t
(customized according to customer requirements)
Working principle
Materials go from the hopper into the crushing chamber and get crushed by impact and shear of rotating knife and fixed knife, under the function of centrifugal knife, the material flows automatically to the exit.
Application
This machine is suitable for the chemical industry, metallurgy, food and other industries, can process material which is hard and difficult to crush, can be a pre-equipment of micro crushing process, it is not restricted by material viscosity, hardness, softness and fiber, it has a better crushing effect on any material , it is a universal pulverizer.
Parameters
|
Model
|
Capacity (KG/H)
|
Spindle speed (r/min)
|
Feed size(mm)
|
Motor(KW)
|
Dimension(mm)
|
Fineness(mm)
|
Weight(kg)
|
|
CSJ-100
|
15-100
|
500
|
<100
|
2.2
|
550*380*1000
|
0.5-30
|
170
|
|
CSJ-200
|
30-300
|
500
|
<200
|
3
|
600*400*1000
|
0.5-30
|
220
|
|
CSJ-300
|
50-400
|
500
|
<300
|
4
|
700*500*1100
|
0.5-30
|
300
|
|
CSJ-400
|
100-800
|
500
|
<400
|
5.5
|
800*780*1300
|
0.5-30
|
420
|
|
CSJ-500
|
150-1000
|
500
|
<500
|
7.5
|
850*840*1450
|
0.5-30
|
530
|
|
CSJ-600
|
200-1500
|
500
|
<600
|
11
|
920*900*1600
|
0.5-30
|
650
|
|
CSJ-800
|
300-2000
|
500
|
<800
|
15
|
1150*1050*1600
|
0.5-30
|
880
|
Details Images
Coarse crusher without dust removal
Coarse crusher with dust removal
Coarse
crusher w
ith stairs
Screen mesh o
f diffe
rent fineness
Application
