Quick Details
-
Model:
-
ML75
-
Cutting type:
-
Water cooling strand cut
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Control Speed:
-
Inverter
-
Temperature controller:
-
RKC or Omron
-
Model:
-
ML75
-
Cutting type:
-
Water cooling strand cut

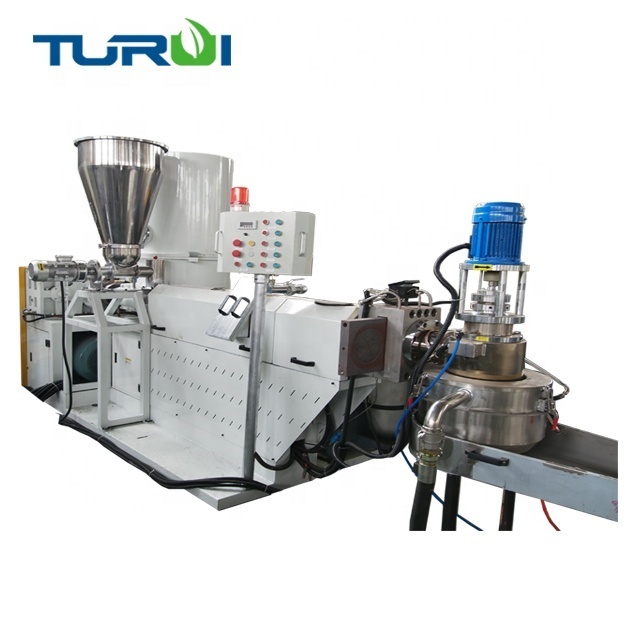

Compactor film plastic granulator machine/pelletizing line TURUI
TURUI pelletizing machine for plastic films ML
double stage (Two extruders) or One extruder
Cut Method: Water strand or Water ring cut
with compactor
TURUI Famous Brand
Suitable for PP,HDPE,LDPE,LLDPE films,EPE,EPS,XPS,fibers.For those very light and loose materials.
\
|
Model |
ML130-100 |
ML160-130 |
ML150-140 |
ML180-160 |
ML200-180 |
||||
|
Output |
100-1000 |
||||||||
|
Diameter of Screw |
130-100 |
160-130 |
150-140 |
180-160 |
200-180 |
||||
|
Heaters |
C a st aluminum , Ceramic ,or Spiral e lectric magnetic heater |
||||||||
|
Pelletizing method |
Water-ring rubs surface, pulls strap ,underwater |
||||||||
Granulationg line machine model ML130 is based in SJ130 models single screw extruder,ML two letters mean it is with compactor,or somene would rather call it with agglomerator.
But compactor is totally different with Agglomerator construction,and Cutting blades materials.
Usually it includes machines as belows:
1.Feeder ,screw loader type or belt conveyor
2.Compactor
3.1 stage or 2 stages extruder
4.Vacuum Degassing system
5.Screen Filter,panel type, hydraulic,nonstop
6. Die
7.Water tank for cooling
8.Pelletize Cutter
9. Silo or Vibration and Air conveyor and Silo
L/D is depend on your materials characters.
Turui granulator has below advantages:
1. The compactor extremely reduced power consumption cost per kilogram
2. It increased high throughput, less floor space occupation and laborhood.
3. Films,bags,loose materials can be directly processed , no need of the upstream pre-shreddin g.
4.Before apply agglomerator, one worker is needed specially.
Now production flow could be continuously.
Turui granulator working principles is as belows:
Feeding is automatic accroding to customer requirements.
In Compactor ,material is crushed,mixed,heated,dried,densified,compressed and fed into extruder continuously. T hrough films Sefl Rubbing in the compactor, and cutting blades,to increase the temperture of films and make flims to balls shape so to increase the production capacity of granulati on lines.
In extruder screw materials are plasticised.
In degassing zone homogenised material is degassed humidity,so that there arent bubbles in the output granules.
Screen changer is double-disk non-stop working,has big filter area.
Pelletizer.
